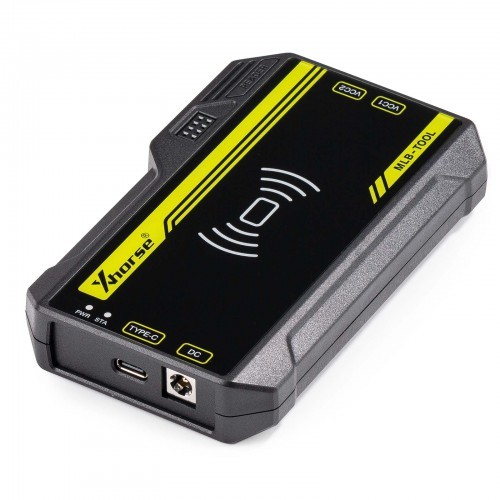

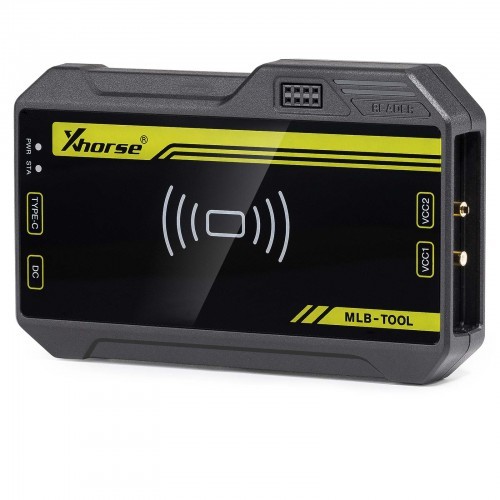

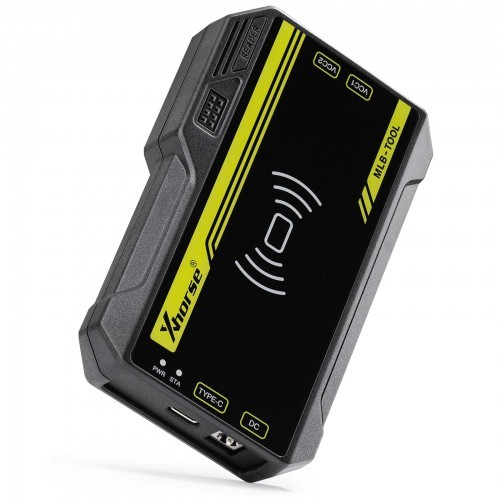

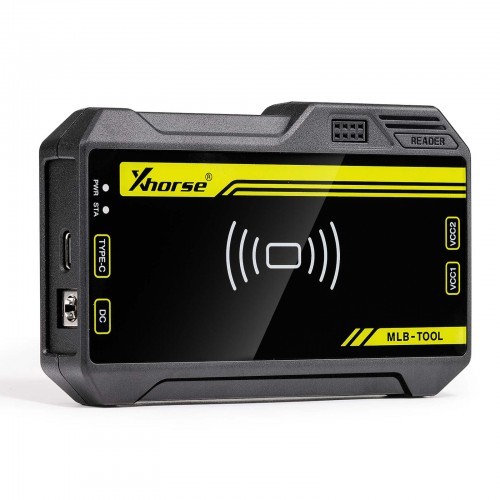

Xhorse MLB-TOOL A PRO TOOL for MLB Ultra Capable in Reading Writing and Calculating
Xhorse VVDI MLB-Tool is used for data collection of keys for Audi, Porsche, Volkswagen, Lamborghini, Bentley and othe MLB models, and can be used with professional tools like VVDI2, Key Tool Plus to generate keys, add keys and program keys Xhorse MLB-Tool Highlights:
-
Excel in key adding for MLB models
-
No Need to Remove the Chip
-
Wireless Key Generation for Ultimate Convenience
-
Immo Detection Made Easy
-
Compatilility with Original Keys and Xhorse Specialized Keys
-
Rewrite Uninitialized Key IDs
-
No Need for On-Vehicle Data Collection
-
Works with VVDI2 and VVDI Key Tool Plus(VVDI2 requires VV-05 MQB and VV-02 VAG IMMO5 license activated)
-
No points required when using VVDI MLB specialized key
Notice: The following two scenarios require points deduction for MLB calculations:
1. When adding keys, points will be deducted to calculate the IMMO data.
2. When doing key recovery, the second-hand key has been initialized and unlocked, but does not have the IMMO data of the key. You need to deduct a few points to collect and calculate the IMMO data of the key before it can be restored.
VVDI MLB Tool Function:
VAG MLB Key Programming:
Supports adding keys for a wide range of VAG MLB models, including Audi, Porsche, Volkswagen, Lamborghini, and Bentley.
Wireless Key Programming: Enables the wireless generation of original dealership keys and Xhorse specialized keys, providing ultimate convenience.
Chip-Free Key Programming: No need to remove the chip, as key data calculation requires only the disassembly of the key shell.
Immo Detection Tool: Built-in Immo detection module supports wireless key recognition, making immo detection easy.
Compatibility with Original Keys: Supports brand-new original keys (uninitialized/initialized) and VVDI MLB specialized keys for unlimited reuse.
Key ID Rewriting: Supports rewriting uninitialized original key IDs.
Remote Immo Data Collection: Collect key data, upload for calculation, and obtain Immo data without needing to access the vehicle.
Xhorse MLB Tool Features:
Excel in key Adding for MLB Models Support adding keys for Audi, Porsche, Volkswagen, Lamborghini, Bentley, and other MLB vehicle models
No Need to Remove the Chip Key data calculation requires only the disassembly of the key shell, with no need to remove the chip. Integrated with a 22k reader, it enables wireless key reading and writing without shell removal.
Wireless Key Generation for Ultimate Convenience Generate original dealership keys and Xhorse specialized keys wirelessly.
Immo Detection Made Easy Built-in Immo detection module supports wireless key recognition
Compatibility with Original Keys and Xhorse Specialized Keys Support brand-new original keys (uninitiaIized/initiaIized) and can verify the status of the original keys. Support VVDI MLB specialized keys for unlimited reuse.
Rewrite Uninitialized Key IDs Support rewriting uninitialized original key IDs.
No Need for On-Vehicle Data Collection Simply collect key data, upload for calculation, and obtain Immo data without needing to access the vehicle.
VVDI MLB Tool Software Display:
How to Use The Xhorse MLB Tool Software:
Software Installation: Install the VVDI MLB Tool software on a Windows 10 or Windows 11 system. Ensure your software is updated online.
Device Binding: Bind the VVDI MLB Tool with the Xhorse App. Navigate to Special Function -> Bind Device. Scan the QR code to bind the device.
Key Programming: Disassemble the key shell without removing the chip. Use the integrated 22k reader for wireless key reading and writing. For specific models, remove two capacitors (100nF) and solder the cable to the original key as per the wiring diagram.
Immo Data Collection: Collect key data and upload it for calculation. Obtain Immo data without needing to access the vehicle.
Key Generation: Generate original dealership keys and Xhorse specialized keys wirelessly. Verify the status of original keys and rewrite uninitialized key IDs if needed.

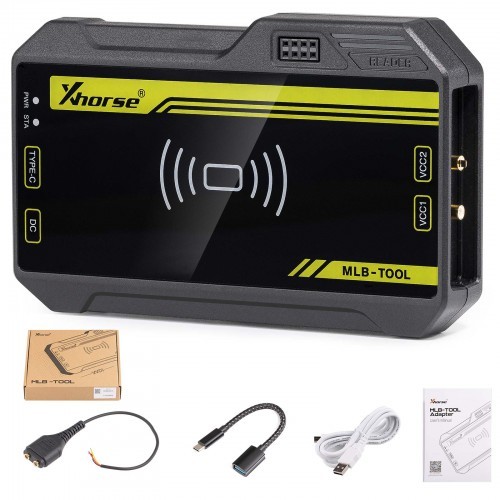

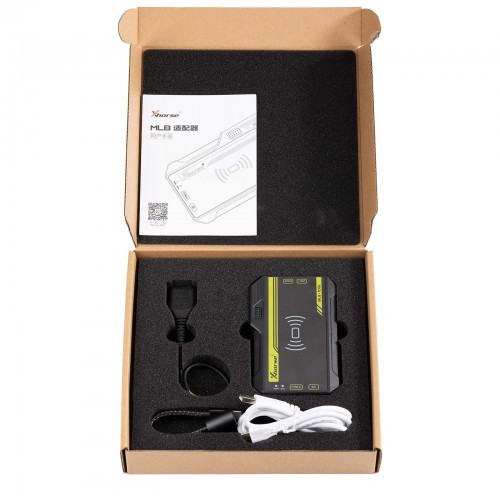

VVDI MLB-TOOL Package List:
1pc x Xhorse MLB-Tool A PRO Tool
1pc x USB to Type -C cable
1pc x USB cable
1pc x welding harness
1pc x manual
FAQ:
Q: Does this tool need tokens?
A: It depends on the key you use.
Collect the original key (without our VVDI MLB remote key), will require 200 points Collect the original key (but have our VVDI MLB remote key), identify the VVDI key first, and then you can avoid deducting points. (1 VVDI key can only be identified once) Collect the VVDI MLB key, no points are required
Q: In what scenarios does it requires tokens?
A: 1. When adding keys, points will be deducted to calculate the IMMO data.
2. When doing key recovery, the second-hand key has been initialized and unlocked, but does not have the IMMO data of the key.
You need to deduct points to collect and calculate the IMMO data of the key before it can be restored.
Q: Does the original key for XHORSE MLB TOOL have to be a brand new one, or can it be a used one?
A: For the original key. Here are several occasions. Unlocked, uninitialized, with ID, can generate and learn the key directly Unlocked, uninitialized, but without ID, can change ID for once Unlocked, initialized, can restore key to unlocked, uninitialized, no ID state by calculating anti-theft data Locked, initialized, this original car key cannot be unlocked
Q: Is there a manual or vidoes on how to use it?
A: Yes, you can have a look at this MLB Tool User Manual English
Q: The MLB PC software is only required when using it with VVDI2, right?
A: yes, that is right. MLB PC software is needed when used with VVDI2. When using with a KTP, you can use an OTG adapter to connect. like this
1. Used with VVDI2 and VVDI Key Tool Plus. 2. No Need to Remove the Chip, Wireless Key Generation 3. Compatible with Original Keys and Xhorse Specialized Keys
