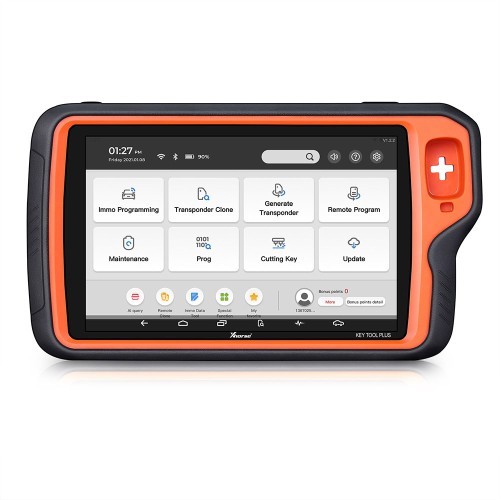

Xhorse VVDI Key Tool Plus provides an all-in-one security solution for locksmiths, which combines immo programming for luxury cars like BMW, BENZ, AUDI, and VW etc as well as common functdions of key programming and car diagnosis in one single platform.
Support DOIP/CAN-FD/ CAN and K protocol switch pin/Chip pin detection/Toyota smart key programming without simulator/Long distance IMMO collection.
With Paid Licenses VW MQB48-NEC35xx License, BMW Bench Read ISN and BMW Motorcycle License
Xhorse VVDI Key Tool Plus Pad Global Advanced Version With VW MQB48-NEC35xx License, BMW Bench Read ISN and BMW Motorcycle License
Highlights:1. VVDI Key Tool Plus provides an all-in-one security solution for locksmiths. Much easier to complete various automotive programming anywhere, no need to take your laptop, mobile phone.2. Support IMMO programming for luxury cars like BMW, BENZ, AUDI, and VW etc.3. Available to control the key cutting machines developed by Xhorse. Greatly saving cost and facilitating the work process. Bind with Xhorse key cutting machine to get one free BGA token everyday.4. Advanced Version with Free Update Online5. ID48 96bit and read MB Key password online will need token, but both can read xhorse bonus points. Read Xhorse bonus points for copy 48 96 bit ( 100 points ) and Mercedes calcuation ( 200 points ).6. The most advanced application processor of VVDI Key Tool Plus, with integrated Bluetooth, FM, WLAN, and GPS modules, is a highly integrated baseband platform incorporating both modem and application processing subsystems to enable the best and most convenient connectivity solution. With this super processor, the enhanced overall quality is achieved for simultaneous voice, data, and audio/video transmission on the device.7. Work with New VW Solder-Free Adapter Set for Audi Add Key and All Key Lost. No Need Token, No Need To Connect VW Server.8. Newest Update on Sep 2021, Support Ford All Key Lost to year 2020 While Alarm On with Extra Ford All Key Lost Cable. No need to power off over and over again. 9. Extra optional Xhorse XDKP91GL 40 Pin Gateway Cable for Nissan Mitsubishi. Support Add Key and All Key Lost Bypass Pin Code. 10. KEY Tool Plus Free Upgrade 5C/5D:• 5C supports VVDI smart key and original keys (locked/unlocked)• 5D currently supports original keys only• Supports the latest 5C / 5D key models from Volkswagen, Skoda, Audi, Porsche, and more• Supports KEY TOOL PLUS for soldered reading (Solder-free adapter reading will be supported soon)Warm Notice:
Xhorse VVDI Key Tool Plus Full Version = Xhorse VVDI Key Tool Plus Global Advanced Version + VW MQB48-NEC35xx License + BMW Bench Read ISN + BMW Motorcycle License these three extra paid license
Features:1. All-In-One Automotive Solution for Locksmith2. Powerful Hardware,Super Advanced Processor3. IMMO Programming For Luxury Cars4. Prog Function, IMMO Data Tool5. Available to Control The Key Cutting MachinesVVDI KEY TOOL PLUS PAD Functions: Chip and chip type detectionCopy part of the IMMO chipDetermine whether the vehicle is equipped with a chip IMMO system in the state of all keys lostDetect the type and frequency of the customer's remote controlread, write and edit data in the IC memory of various IMMO instrumentsCloud data storage functionOBD matching function supports remote IMMO OBD programming and settingsBuilt-in remote assistance TEAM Viewer softwareBridge the original equipment for professional programmingView relevant vehicle information and IMMO matching tutorials
Luxury Cars IMMO ProgrammingOrdinary Cars IMMO ProgrammingRemote ProgramTransponder OperationsFile Make KeyProg FunctionMaintenanceControl Xhorse Key Cutting Machines Support √ CAN and K protocol switch pin√ Chip pin detection√ Toyota smart key programming without simulator√ Long distance IMMO collection Built-in √ OBD matrix switch√ Radiofrequency simulator√ Smart key simulator√ Integrated key identification coil√ BENZ infrared reading headVersatility ---- Expand What's Possible

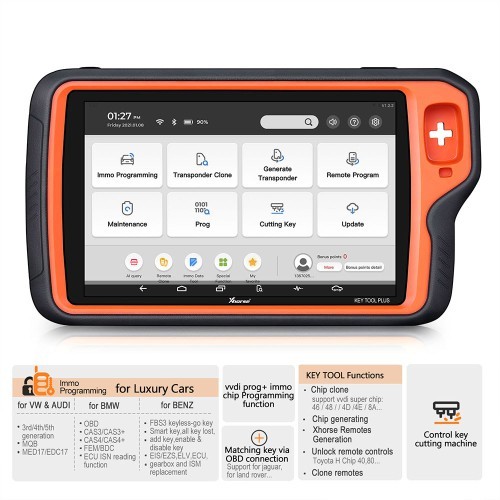

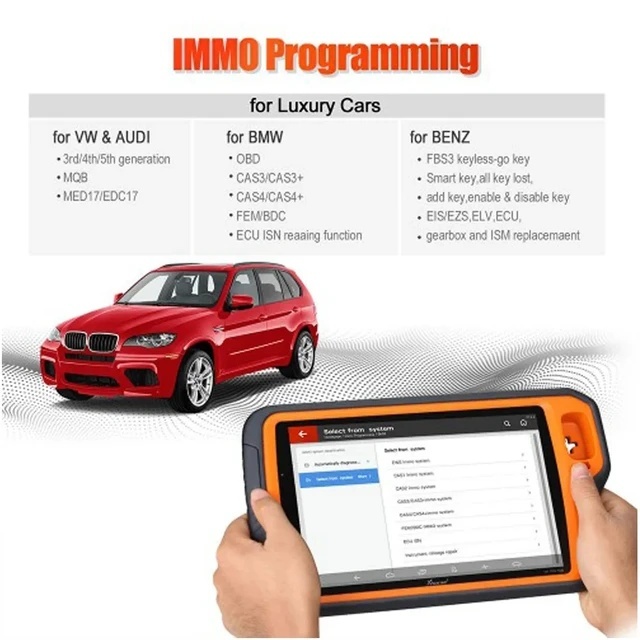

IMMO Programming for Luxury Cars As a versatile automotive security device, KEY TOOL PLUS simplifies immo programming for luxury cars like Volkswagen, AUDI, BMW, BENZ, Porsche, Bentley, SEAT, etc.Users can effortlessly finish the tough work in one single tablet.Additionally, the support car models won't end here: more cars will be included in the list by Xhorse.VW&AUDI IMMO Programming3rd/4th/5th generationMQBMED17/EDC17 Leading Team with Leading Tech KEY TOOL PLUS provides users with functions including key programming, key learning, ECU coding/adaption/replacing, diagnostic function, etc. to best resolve most problems they met in immo programming for Volkswagen and AUDI cars.
BMW IMMO Programming Extremely Cost-effective, Surprisingly Professional KEY TOOL PLUS can achieve BMW CAS1/CAS2/CAS3/CAS3+/CAS4/CAS4+ OBD key learning, FEM/BDC key programming, File Make Key, ECU ISN reading, ECU and CAS synchronization, etc.Getting work done has never been easier.
Mercedes-Benz IMMO Prorgamming User-demand-oriented, Innovation-driven KEY TOOL PLUS offers users all-rounded and professional security solutions for Mercedes-Benz. The device helps with FBS3 Keyless-go smart key programming, all key lost, adding keys, enabling & disabling keys and EIS/EZS, ELV, ECU, gearbox, ISM replacing. Mighty: Beyond Your Imagination Other Car Models Supported For Toyota, For Honda, For Mazda, For Ford, For Cadillac, For LandRover, For Peugeot, For Kia, For Buick, For Chevrolet, For Volvo, For Mitsubishi, For Nissan, For SuzukiKEY TOOL PLUS features IMMO programming for thousands of car models around the world, literally covering the great majority of car models locksmith may meet in work, so as to ensure the effectiveness and convenience of their daily work.

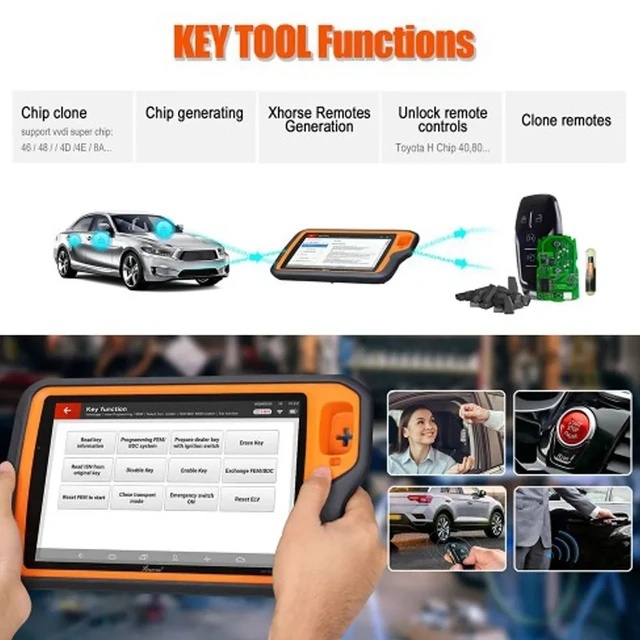

KEY TOOL PLUS Has It All. A Computer, A Mobile Phone, A Tablet, An Immo Programmer, A Remote Maker, A Transponder Generator, A Programmer, A Frequency Tester. Transponder Clone Remote CloneTransponder Generation Remote GenerationTransponder Reading Remote RenewFrequency Detection IC/ID CloneEg. OBD diagnosis and MQB49 immo programming have just been released on KEY TOOL PLUS and it’s projected to support DOIP, CAN-FD, Toyota 8A smartkey in the near future.
The Most Comprehensive Database of Vehicles Ever TranspondersID46 online calculationID48 (96 bit) online calculationToyota H(8A) online calculationTransponder generation and cloning of over 850 car modelsSpecial transponders and special cars and old car models RemotesSupport remote generation, smart key generation, frequency detection, remote clone for a variety of car modelsHCS/fix code clone, non-HCS rolling code clone, fix code editingPT22XX, LX918, HT6P20, VD5026, AX5326, HT12X fix code editing
Revolutionary Function Solve Programming Dilemma IMMO Data Tool (File Make Key) For some cars, key programming and other settings can't be finished via OBDⅡ. KEY TOOL PLUS gives amazing strength to solve the dilemma by delivering File Make Key function which can be used to add keys for them. This very function features generating transponder via reading related transponder data of the car immo module directly. Example: Magotan/CC 48 transpnder File Make Key For Audi, Jaguar, Volvo, Ford, BMW, Land Rover, Buick, Kia, Bentley, Peugeot, Cadillac, Toyota, Honda, Porsche, Chevrolet, Nissan, etc. Maintenance Function Meet Your Work Demands in Every Way. KEY TOOL PLUS supports maintenance light reset, electric parking brake, TPMS, battery matching, throttle program, injector programming, steering angle programming, bitting decode, gearbox programming, headlight programming, etc. A Programmer As Well: Simply Stronger, Reliably Effective

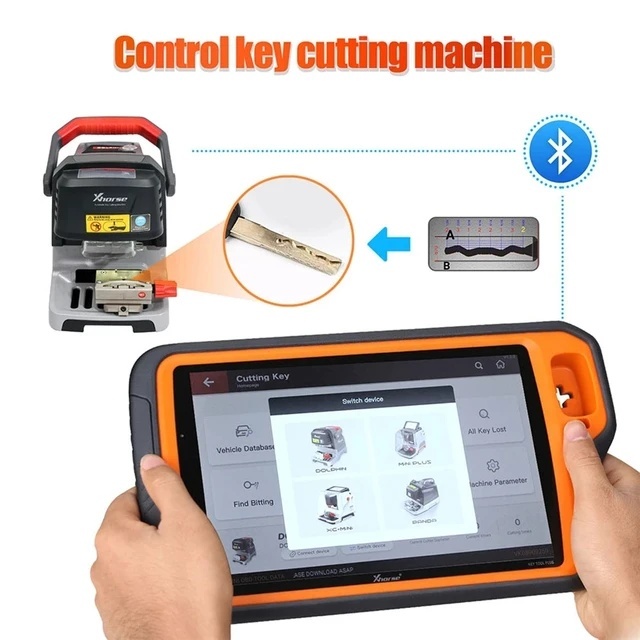

Prog Function KEY TOOL PLUS is designed with Prog function, which can work as a solder-free programmer, directly reading and writing common modules and chips for plenty of car models. Xhorse is the first to offer this integrated solution.Supported EEPROM and FLASH ATMEL, MITSUBISHI, WINBOND, CATALYST, ST, XICOR, MICROCHIP, SEIKO, XHORSE, MXIC, TOSHIBA Support Modules √BMW: CAS3/CAS3+/CAS4/CAS4+/FEM/FRM/BDC√BENZ: EIS/EIZ √LANDROVER: RFA√PORSCHE: BCM √VOLVO: CEM/KVM√BMW/AUDI/VW: ECU AND MORE√HONDA/HYUNDAI/KIA: MB91F dashboard Keep the Key Cutting Machine in Control Available to control Xhorse key cutting machines (CONDOR, DOLPHIN, Panda and more). PERFECTLY WORK AS AN OPERATION SCREENProduct Specifications: 4GB RAM + 128GB ROM large storage capacity8-Core high performance processor10.1” ScreenAnti-glare display enables top operation experience.13MP HD CameraThe 13MP rear camera is designed to fit in multiple scenarios perfectly.10000mAh BatteryLong battery life and PD3.0 fast chargeKeep you productive throughout your day.OBD Power SupplyPD3.0 FastChargeBluetooth 5.0WiFi 2.4G/5GXhorse Key Tool Plus Overview:

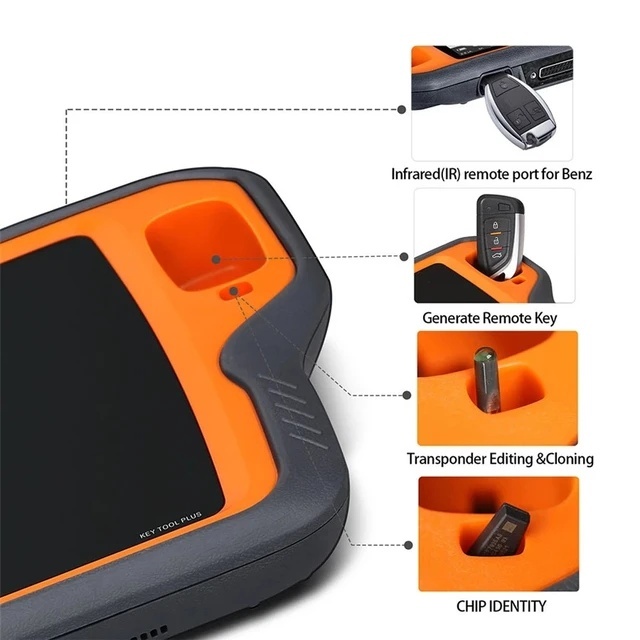

Key Tool Plus Ports Introduction:
Light sensor: detect the brightness in the surrounding environment
Detection coil (including 125K low, 13.56M Medium, 300-900M high frequency)
- Support reading, writing, and cloning common immo transponders
- Support reading common ID transponders
- Support reading common IC transponders
- Support frequency detection of common vehicle remotes
Immo transponder placement hole for vehicle immo transponders
USB charging port: support standard fast charge adapter and standard Type-C port DC-5V input.
PS2 port for remote programming
DB15 port: support standard & optional programming adapters with DB15 port
DB25 port for OBD matching
Benz Infrared (IR) port: support IR read Benz FBS3 & FBS4 smart key and support Benz IR reader

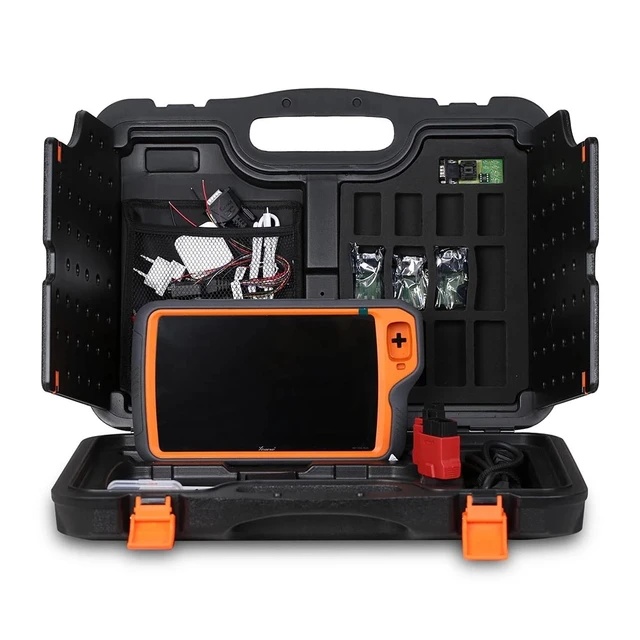

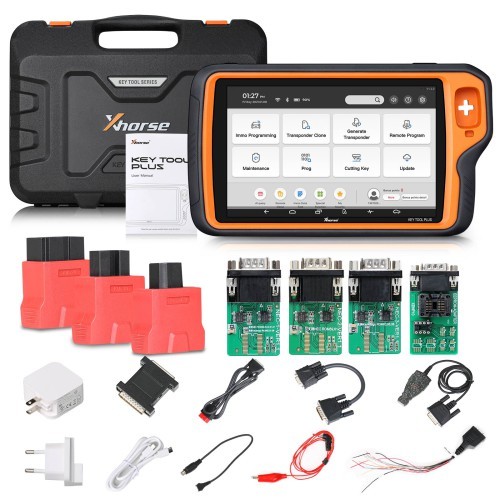

Package Includes: 1pc x Key tool plus1pc x User manual1pc x Certification and warranty card1pc x Charger1pc x USB 3.0 type-c cable1pc x OBD_DB25 connector1pc x OBD_KIA_10 connector1pc x OBD_KIA_20 connector1pc x OBD_HONDA_3 connector1pc x Remote_PS2 programming cable1pc x Transponder box1pc x Prog_DB15_15 cable1pc x Prog_EEPROM adapter1pc x Benz_IR reader1pc x Benz_NEC1 adapter1pc x Benz_NEC2 adapter1pc x Benz_NEC3 adapter1pc x Benz_power adapter1pc x 9s12xE cable1pc x MCU cable
