OBDSTAR P003 Bench/Boot Adapter is designed for Reading ECU CS PIN ect, can work With OBDSTAR IMMO series tablets, such as OBDSTAR X300 DP, X300 DP PLUS, OBDSTAR DC706, X300 PRO4, Key Master DP.

Received successfully

Coupon Code

CONTINUE SHOPPING

Quantity:

Add to Favorites (78)

1/1

Description

OBDSTAR P003 KIT P003 Adapter with ECU Bench Cables Working With OBDSTAR X300 DP/ X300 DP PLUS/ X300 PRO4/ Key Master DP

P003 Kit, working with OBDSTAR IMMO series tablets, supports reading and writing ECU eeprom & flash data and caculating IMMO data of BOSCH ME17XX, MED17XX, EDC17XX & CONTINENTAL PCR2.1 for VW/Skoda/Audi/Seat, Bentley, Peugeot/Citroen/DS, Lamborghini, Porsche, Mahindra etc..

Can be working with OBDSTAR IMMO series tablets:
OBDSTAR X300DP Plus Key Master DP Plus
X300 Pro4 Key Master 5
OBDSTAR DC706 ECU TCU Clone Tool

Notice:
1. New version of OBDSTAR P003 KIT ( SE156 ) can work with DC706/ MS80
2. Old version ( SE156-B ) can work with X300 DP/ X300 DP PLUS/ X300 PRO4/ Key Master DP

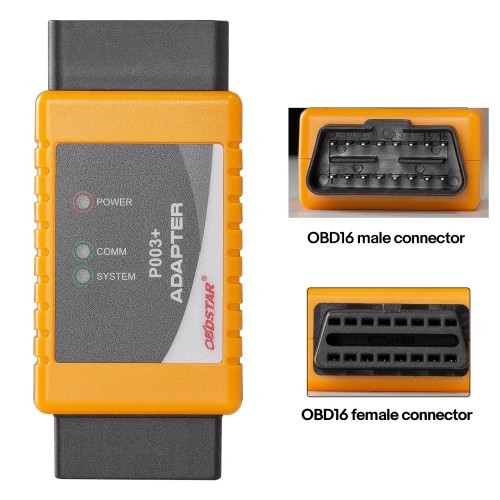

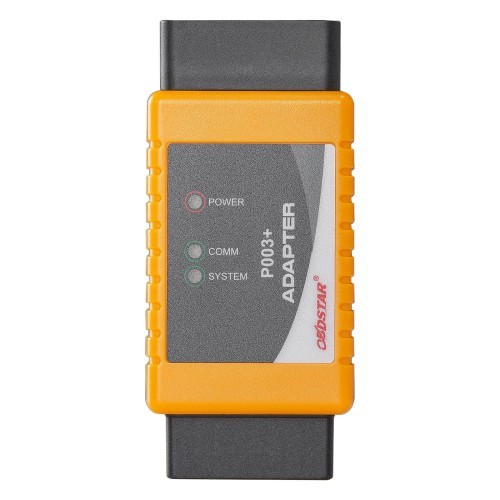

3. Some functions are only supported by P003+ adapter (SE156-C)and MP001 programmer. For DC706, please buy P003+ Kit .

4. Support only buy P003+ Kit hardware, change the New version of OBDSTAR P003 KIT to P003+ Kit for DC706, ECU BENCH jumper are same.

OBDSTAR P003 Kit Highlights:
1.Portable Design
2.Easy Operation
3.High Performance

Functions:

1. Continental PCR 2.1 reading CS, PinCode, MAC valueP003 KIT
2. Bosch MED17.4.4 reading eeprom , PinCodeP003 KIT
3. Bosch EDC17C60 reading eeprom , PinCodeP003 KIT
4. Bosch MD1CS018 reading eeprom, PinCodeP003 KIT
5. Bosch MED17XX/EDC17XX reading eeprom, flash, CS, PinCode, MAC value
6. Bosch ME17XX reading & writing eeprom, flash
7. T87A, 6HP reading & writing TCM eeprom, flash

OBDSTAR P003 Kit Overview:

1.Diag cable OBDconnector(male)
2.Connect P003 connector(female)

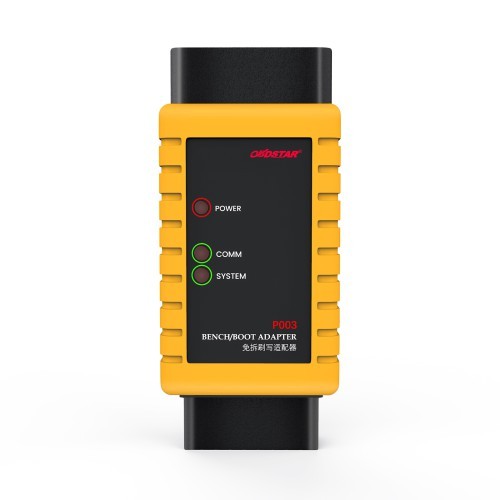

3. P003 adapter
4.Boot jumper(spring needle)
5.Boot jumper(welding)
6.ECU pin connector
7. ECU boot connector
8.12V power

Connecting Methods:

BENCH MODE
Step 1:Connect 1,2,3 together as pic below;

Step2:connect the ECU pin connector to the ECU according to the wiring diagram;
Step3:connect 12V power with diagnostic device;
Step4: read data on diagnostic device.

BOOT MODE
Step 1: Connect 1, 2, 3 together as pic below;

Step2:connect the ECU pin connector to the ECU according to the wiring diagram;
Step3:connect 7 with 4 or 5 and connect it to ECU;
Step4:connect 12V power with diagnostic device;
Step5: read data on diagnostic device.

OBDSTAR P003 Kit Function
For reading BOSCH ECU data, CS, Pincode etc., including Audi, Citroen, DS, Mahindra, Peugeot, Skoda, SEAT, Volkswagen etc.. More models are in development...

OBDSTAR P003 Kit Supported ECU List
Supports ECU including BOSCH EDC17U01(TC1766), MED17.5(TC1766), MED17.5.1(TC1766), MED17.5.20(TC1766), MED17.5.5(TC1766), MED17.5.5 HW2(TC1766), EDC17C46(TC1767), ME17.5.6(TC1767), ME17.5.20(TC1767), MED17.5.2(TC1767), MED17.5.5(TC1767), MED17.5.5
HW2(TC1767), MED17.5.21(TC1782), MED17.5.25(TC1782), EDC17C54(TC1797), EDC17C64(TC1797), EDC17CP44(TC1797), EDC17CP44 MS(TC1797), ME17.1.1(TC1797), ME17.1.6(TC1797), MED17.1.1(TC1797), MED17.1.1 MS(TC1797), MED17.1.6(TC1797), MED17.4.4(TC1793), MD1CS018(Euro 6/TC298TP), MG1CS042(Euro 6/TC298TP), MG1CS003(Euro6/TC298TP) etc.

Specifcations:

Voltage	12V
Weight	100g
Dimension	1137531mm

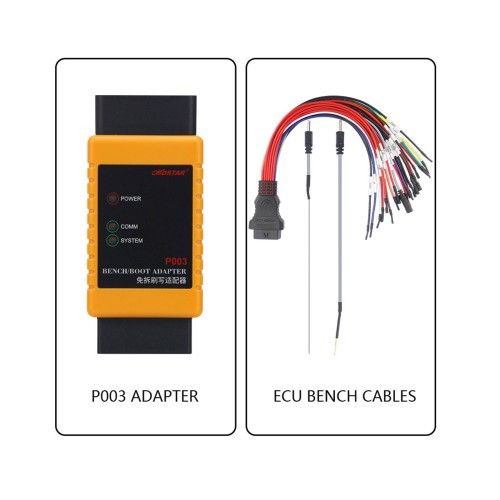

OBDSTAR P003 KIT Package:

1. P003 adapter

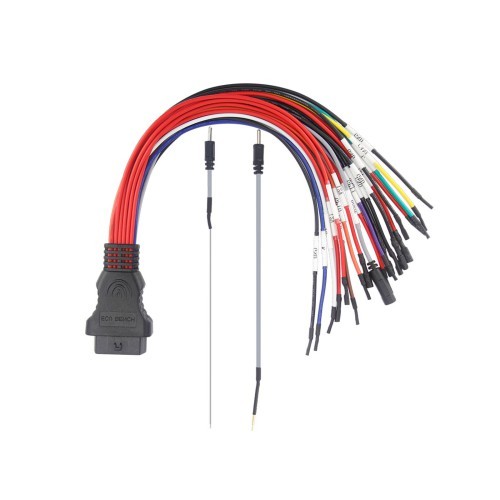

2. ECU BENCH cables

OBDSTAR P003 Kit Supported ECU list:

1. Continental PCR2.1(TC1796)

2010-2014 Audi A1 (8X) 1.6L Diesel

2009-2012 Audi A3 (8P) 1.6L Diesel

2009-2013 Seat Altea 1.6L Diesel

2010-2016 Seat Ibiza IV (6J) 1.6L Diesel

2010-2012 Seat Leon II 1.6L Diesel

2014 Seat Toledo (KG) 1.6L Diesel

2010-2013 Skoda Octavia II (1Z) 1.6L Diesel

2010-2013 Skoda Fabia II (5J) 1.6L Diesel

2010-2011 Skoda Roomster (5J) 1.6L Diesel

2013-2014 Skoda Rapid (NH) 1.6L Diesel

2011-2013 Skoda Superb (3T) 1.6L Diesel

2012/2015 Skoda Yeti (5L) 1.6L Diesel

2010-2015 VW Caddy (2K) 1.6L Diesel

2009-2013 VW Golf VI 1.6L Diesel

2010-2013 VW Golf Plus 1.6L Diesel

2011-2014 VW New Beetle (9C) 1.6L Diesel

2011 VW Passat (B7) 1.6L Diesel

2009-2014 VW Polo V 1.6L Diesel

2010-2015 VW Touran (1T) 1.6L Diesel
...

2. Bosch MED17.4.4(TC1793)

Citroen C3 Mk2

Citroen C4 Gran Picasso

Citroen C4 MK2

Citroen C5 (RD/TD)

Citroen C6

DS DS3

DS DS5

DS DS6

Peugeot 2008

Peugeot 208

Peugeot 3008 (P84)

Peugeot 3008 (T84)

Peugeot 308 (T9)

Peugeot 4008

Peugeot 408

Peugeot 508
...

3. Bosch EDC17C60(TC1793)

Citroen Berlingo

Citroen C-Elysee

Citroen C3 Aircross

Citroen C3 MK2

Citroen C3 Picasso

Citroen C4 Cactus

Citroen C4 MK2

Citroen C4 Picasso

Citroen Jumpy

Citroen Spacetourer

DS DS3

DS DS4

DS DS5

Peugeot 2008

Peugeot 208

Peugeot 3008 (P84)

Peugeot 308 (T9)

Peugeot 5008 (T87-P87)

Peugeot 508

Peugeot Expert

Peugeot Ranch/Partner

Peugeot Traveller

Opel/Saturn/Vauxhall Combo E

Opel/Saturn/Vauxhall Crossland X

Opel/Saturn/Vauxhall Grandland X

ToyotaProace
...

4. Bosch MD1CS018

Mahindra BS-6
...

5. Bosch MED17XX/EDC17XX

EDC17U01(TC1766)

EDC17C46(TC1767)

EDC17C54(TC1797)

EDC17C64(TC1797)

EDC17CP44(TC1797)

EDC17CP44 MS(TC1797)

MED17.5(TC1766)

MED17.5.1(TC1766)

MED17.5.20(TC1766)

MED17.5.5(TC1766)

MED17.5.5 HW2(TC1766)

MED17.5.2(TC1767)

MED17.5.5(TC1767)

MED17.5.5 HW2(TC1767)

MED17.5.21(TC1782)

MED17.5.25(TC1782)

MED17.1.1(TC1797)

MED17.1.1 MS(TC1797)

MED17.1.6(TC1797)
...

VW/Skoda/Audi/Seat, Bentley, Lamborghini, Porsche...

6. Bosch ME17XX

ME17.5.6(TC1767)

ME17.5.20(TC1767)

ME17.1.1(TC1797)

ME17.1.6(TC1797)
...

VW/Audi/Skoda/Seat, Bentley...

New Version of OBDSTAR P003 KIT Package Includes:

1pc x P003 adapter
1pc x ECU BENCH jumper
5pcs x 120 ohm resistors
1pc x Boot jumper(spring needle)
1pc x Boot jumper(welding)

Old version of OBDSTAR P003 KIT Package Includes:

1pc x P003 adapter
1pc x ECU BENCH cables
