OBDSTAR ECU Master ECUmaster Configuration A for Passenger Car and EV Car TCM ECM BCM BMS VCU
ECU Master PC Software Free DonwloadECU Master CoverageECU MASTER User Manual
OBDSTAR ECU MASTER Configuration A is the first professional PC-based ECU Flasher for OBDSTAR and supports Passenger Car, EV ECM/TCM/BCM)clone functions. It is compatible with ECUs from major global brands, provides precise maintenance for popular units, and is equipped with anti-misoperation reminders, allowing even beginners to get started quickly!
Highlights:
1. Comprehensive Protocol & Mode Compatibility
Support Read/ Write via OBD, BENCH, BOOT, JTAG, BDM and other modes, focus on safe open-free ECU operation, compatible with various ECUs for all vehicle models.
2. All-in-One Functional Coverage
Compatible with ECUs from all major global brands, supporting full-process operations including ECM/TCM/BCM Read/Write and CS, Reset Virgin, immobilizer decryption and matching, VIN modification, and mileage correction—a one-stop solution for all daily repair needs.
3. Intuitive Design for Instant Mastery
User-friendly interface with a clear menu structure and complete documentation,equips with anti-misoperation reminders, even beginners can get started quickly.

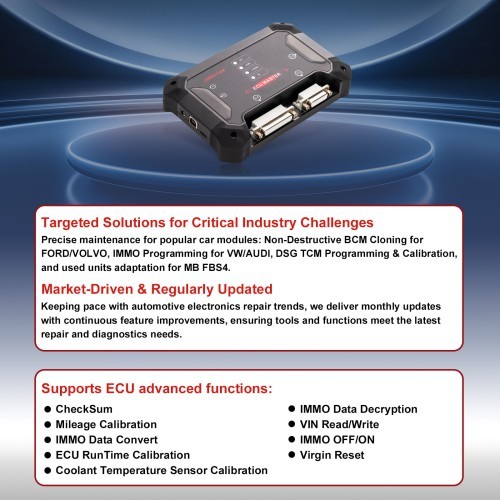

4. Targeted Solutions for Critical Industry Challenges
Precise maintenance for popular car modules: Non-Destructive BCM Cloning for FORD/VOLVO, IMMO Programming for VW/AUDI, DSG TCM Programming & Calibration, and used units adaptation for MB FBS4.
5. Market-Driven & Regularly Updated
Keeping pace with automotive electronics repair trends, we deliver monthly updates with continuous feature improvements, ensuring tools and functions meet the latest repair and diagnostics needs.
6. Professional After-Sales Support
Our senior technical team, with direct manufacturer expertise, provides fast troubleshooting, expert guidance, and complete solutions to ensure smooth and efficient repair operations
OBDSTAR ECU MASTER COVERAGEOBDSTAR ECU MASTER User ManualDownload ECU Master PC software
Support Functions:
Passenger Car ECM / TCM / BCM Cloning:
Support Reading and Writing ECU units of thousands of car models:
BOSCH MED/EDC17 series, CONTINENTAL SIMOS series, GPEC series, DELPHI series, DSG TCM units, MB FBS4 series units etc.
Supports ECU advanced functions:
CheckSum, IMMO Data Convert, IMMO Data Decryption, IMMO OFF/ON, Coolant Temperature Sensor Calibration, Mileage Calibration, ECU RunTime Calibration, VlN Read/Write, Virgin Reset etc.

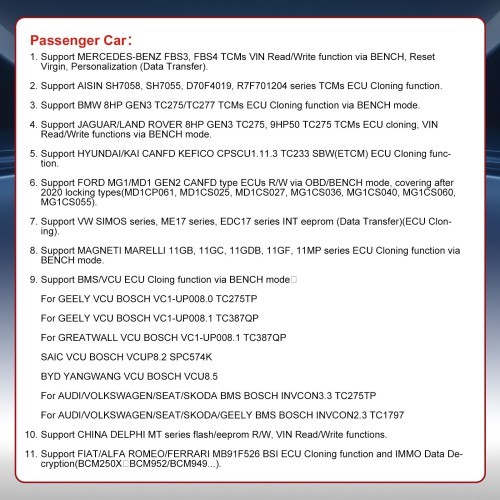

Support Models:
1.Support MERCEDES-BENZ FBS3, FBS4 TCMs VlN Read/Write function via BENCH, Reset Virgin, Personalization (Data Transfer).2.Support AISIN SH7058, SH7055, D70F4019, R7F701204 series TCMs ECU Cloning function.3.Support BMW 8HP GEN3 TC275/TC277 TCMs ECU Cloning function via BENCH mode.4.Support JAGUAR/LAND ROVER 8HP GEN3 TC275, 9HP50 TC275 TCMs ECU cloning, VIN Read/Write functions via BENCH mode.5.Support HYUNDAI/KAI CANFD KEFICO CPSCU1.11.3 TC233 SBW(ETCM) ECU Cloning function.6.Support FORD MG1/MD1 GEN2 CANFD type ECUs R/W via OBD/BENCH mode, covering after 2020 locking types(MD1CP061, MD1CS025, MD1CS027, MG1CS036, MG1CS040, MG1CS060, MG1CS055).7.Support VW SIMOS series, ME17 series, EDC17 series INT eeprom (Data Transfer)(ECU Cloning).8.Support MAGNETI MARELLI 11GB, 11GC, 11GDB, 11GF, 11MP series ECU Cloning function via BENCH mode.9.Support BMS/VCU ECU Cloing function via BENCH mode：GEELY VCU BOSCH VC1-UP008.0 TC275TPGEELY VCU BOSCH VC1-UP008.1 TC387QPGREATWALL VCU BOSCH VC1-UP008.1 TC387QPSAIC VCU BOSCH VCUP8.2 SPC574KBYD YANGWANG VCU BOSCH VCU8.5AUDI/VOLKSWAGEN/SEAT/SKODA BMS BOSCH INVCON3.3 TC275TPAUDI/VOLKSWAGEN/SEAT/SKODA/GEELY BMS BOSCH INVCON2.3 TC179710.Support CHINA DELPHI MT series flash/eeprom R/W, VIN Read/Write functions.11.Support FIAT/ALFA ROMEO/FERRARI MB91F526 BSI ECU Cloning function and IMMO Data Decryption(BCM250X、BCM952/BCM949...).Specifications
|
Operation system
|
Windows 10 or above
|
|
CPU
|
STM32H723, STM32F407
|
|
Working Voltage
|
DC14V
|
|
Working temperature
|
-10℃~55℃（14℉~131℉）
|
|
Storage temperature
|
-20℃~70℃（-4℉~158℉）
|
|
Weight
|
About 0.7kg
|
|
Dimension
|
176mm*115mm*31.7mm
|
|
Warranty
|
1-year hardware warranty; software updates start from the date of manufacture (duration TBD)
|
