1. Based on Yanhua ACDP first generation, the 2nd Generation Yanhua Mini ACDP-2 key programming master add USB Connection
2. Mini ACDP-2 Programming Module Support 93 /24/ 25 / 35/ 95 Series EEPROM / CPU and auto ECU module programming.
3. This module is a necessary basic configuration for other modules
Yanhua ACDP Module with software license list

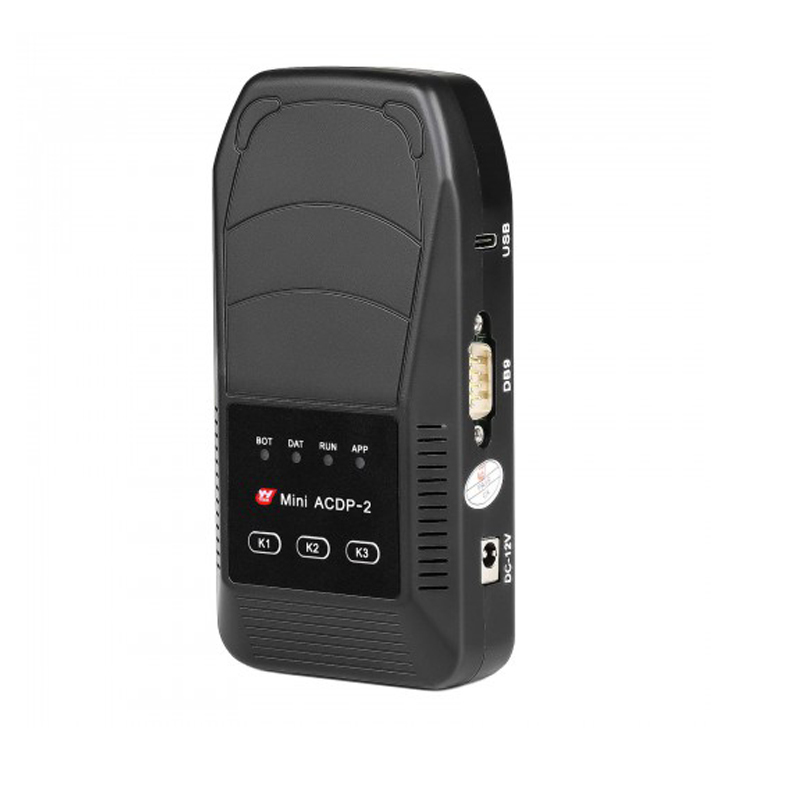

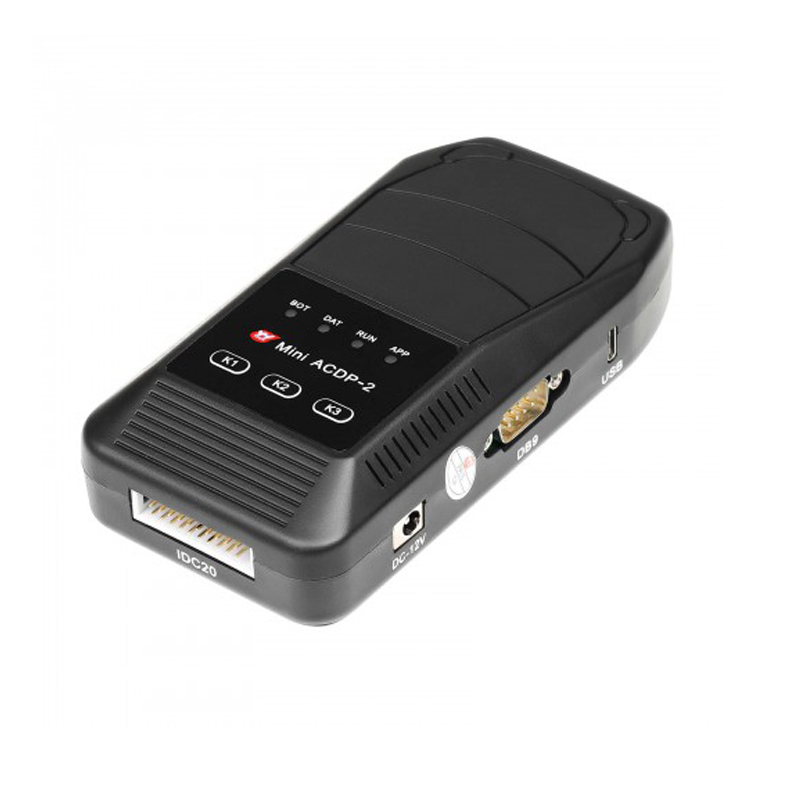

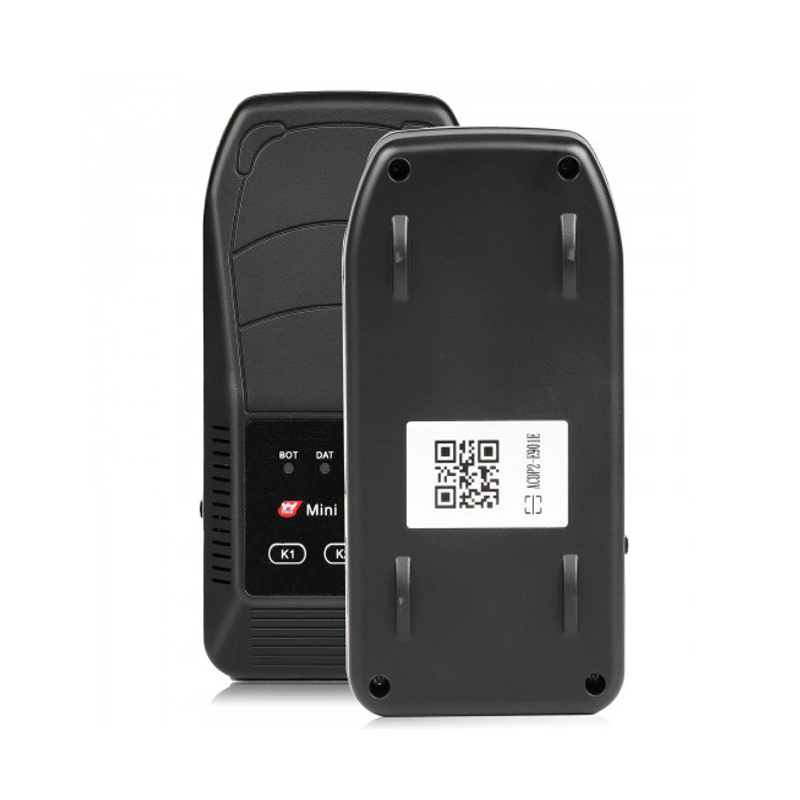

New Yanhua Mini ACDP-2 Key Programming Master Basic Host

ACDP 1 vs ACDP 2:

ACDP 1: Wireless connection only
ACDP 2: Wireless and USB connection, connect ACDP host via Android, iOS and PC devices via USB without Bluetooth adapter.

ACDP-2 Basic Module Features:

Yanhua Mini ACDP-2 supports 93/24/25/35/95 Series EEPROM in circuitprogramming(ICP)andon adapter board programming(OBP). This module is a necessary basic configuration for other modules.

Extended Functions: By expanding more adapters to achieve various functionsauch as ECU programming key programming/matching, ECU refresh.
The current adapters include: BMW CAS, BMW FEM/BDC, BMW DME, Meter/Instrument, BMW Key refresh, BMW FRM(Footwell), BMW EGS(Gearbox), Fujitsu CPU, VW MQB, Jaguar Land/Rover KVM, Porsche BCM, Volvo, etc.

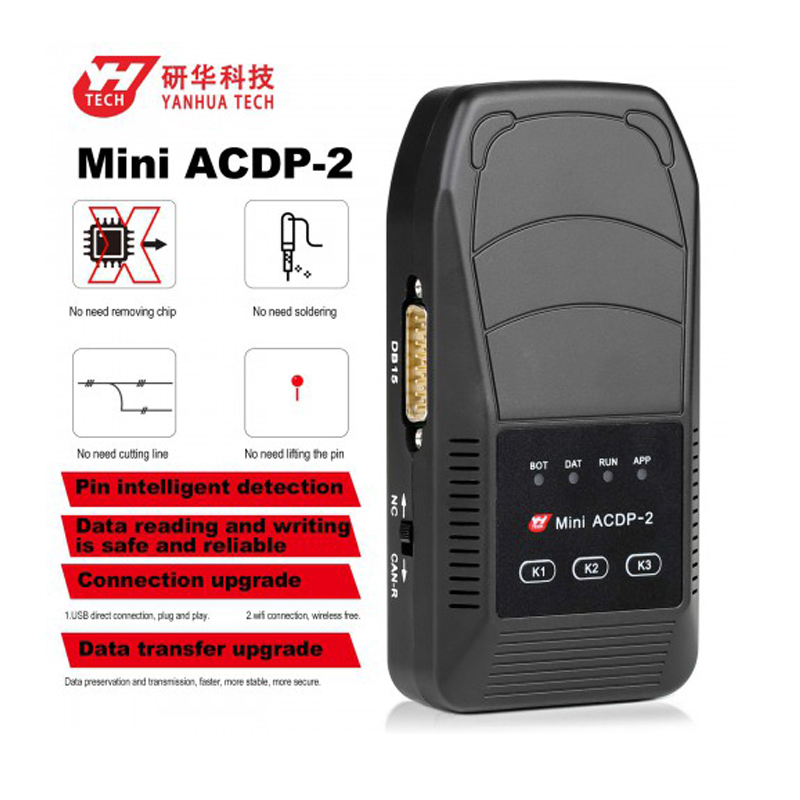

Mini ACDP-2 Advantages:

1. No need removing chip, No need soldering, No need cutting line, No needlifting the pin.
2. USB direct connection, plug and play. wifi connection, wireless free.
3. Pin intelligent detection, Data reading and writing is safe and reliable.

Yanhua ACDP software license list

How to Bind the second-generation ACDP:

1: Bind directly through the USB cable. The 3 USB cables correspond to Android, IOS, and PC respectively. After binding the device in this way, the USB cable must be connected to the host and the mobile phone, and it cannot be used without the USB cable. Disconnect the USB cable and the device will lose connection.
2: Configure wifi or hotspot binding through the USB cable. The binding process of this method requires a USB connection, and then enter the wifi or hotspot name and password to complete the binding. After binding, you can unplug the USB cable and use it wirelessly.
3: Configure wifi or hotspot binding through the Bluetooth of the mobile phone. This method is the same as the binding method of the 1st generation host. Wireless use after binding.




Yanhua ACDP2 Operating system requirements:

iOS (iPhone/iPad/Mac):

System Version: 9.0 or above
Device: iPhone 6 or newer
RAM: 2GB or more
Storage: 1.5GB or more
Download the app from the iOS App Store by searching for 'ACDP-2'

Android (Huawei, Xiaomi, Oppo, Samsung, etc. with Qualcomm chipset):

System Version: 5.0 or above
RAM: 2GB or more
Storage: 1.5GB or more
Download and install the Android app

Windows PC (Windows 7 and 10):

System Version: Windows 7 or 10 (WinXP not supported)
RAM: 2GB or more
Storage: 1.5GB or more

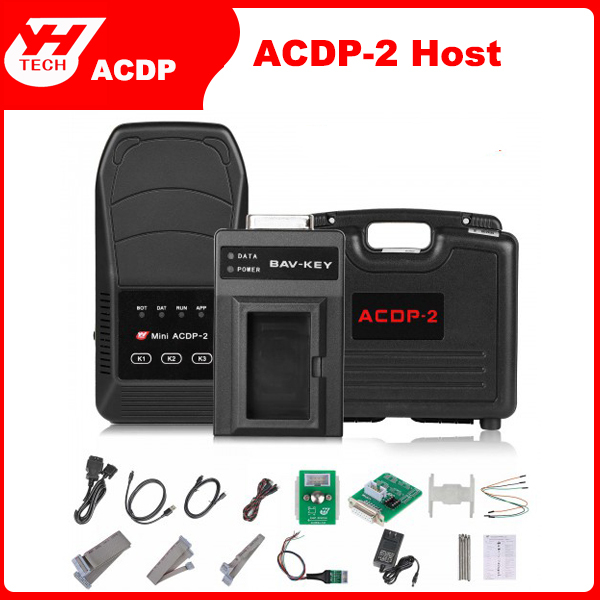

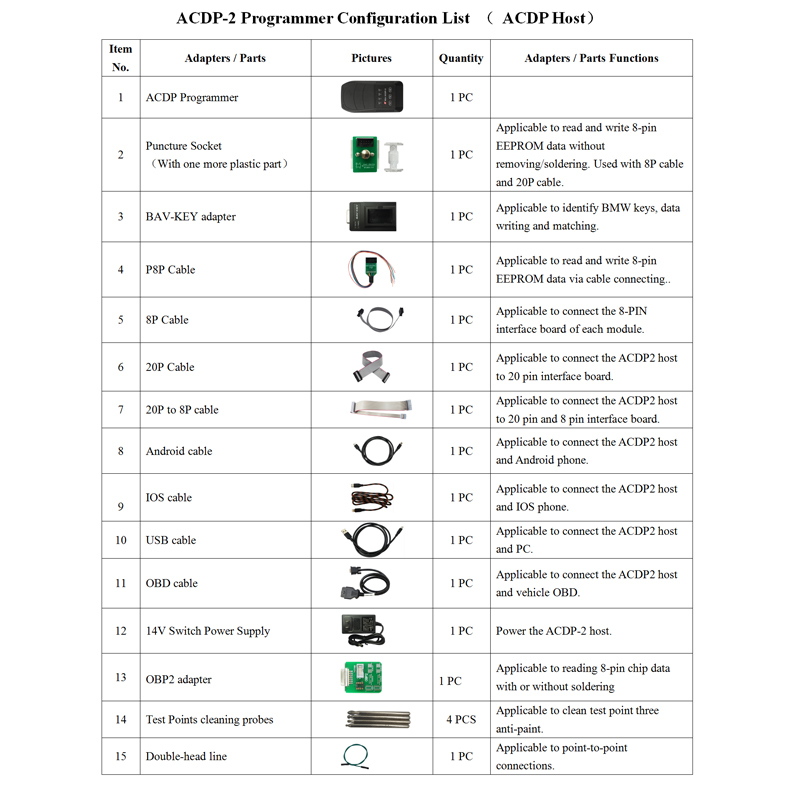

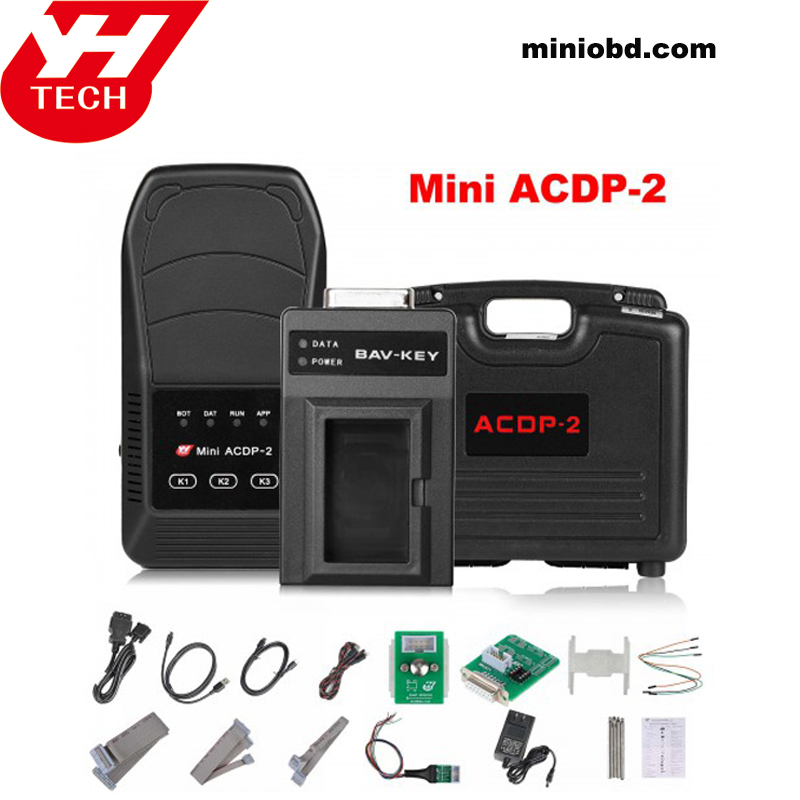

ACDP-2 Package List:

If you have ACDP-1 want to transfer all your license to ACDP-2

For people who want to use ACDP-2 will have two choice

Plan A
is transfer all ACDP-1 License to ACDP-2 and delete ACDP-1 Device(acdp-1 can not use any more)
You can use ACDP-2 basic module $ 380
and License transfer fee $69
Total $449+shipping cost
Notice: After payment, please put old acdp-1 and new acdp-2 together to take a picture, and make sure to show both serial number in the picture

Plan B
is transfer some or all license from ACDP-1 TO ACDP-2 , and ACDP-1 license still can be use ,
That means you will have ACDP-1 and ACDP-2 two device
You will need ACDP-2 Basic module $380
License transfer fee will be 35% of the module price (same as YH store price) . You can send me your ACDP-1 device to check
Operating system:

• IOS: iPhone/iPad/MAC

IOS System Requirement:
1. System Version: 9.0 or above
2. Cell Phone Models: iPhone 6 or above
3. Running Memory Ram: >2G
4. Storange Space rom: >1.5G
Go to iOS App Store, search 'ACDP' to download App

• Android: HUAWEI, Xiaomi, OPPO, Samsung etc Qualcomm chipset mobile phones

Android System Requirement:
1. System Version: 5.0 or Above
2. Running Memory Ram: >2G
3. Storage Space Rom: >1.5G

• PC Version: (Windows 7 and Windows 10), does not support WinXP or Win11

1. System Version: 5.0 or above
2. Cell Phone Models: iPhone 6 or above
3. Running Memory Ram: >2G
4. Storage Space Rom: >1.5G



ICP: Memory and MCU programming In Circuits

MCU programming in Circuits



Yanhua ACDP2 Function:

EEPROM Programming:
Support 93/24/25/35/95 Series EEPROM in circuit programming (ICP) and on adapter board programming(OBP).

BMW module Programming:
① Support CAS1-CAS3+ IMMO key programming and mileage reset through OBD mode.
② Support CAS3+/3++, CAS4/4+key programming and mileage reset by ICP.
Data reading and writing without lifting the pin. No removing any components. Intelligent detection.
③ Support FEM/BDC IMMO key programming and mileage reset.Fully automatic mode matching.Safe,reliable and fast!Support FEM/BDC module restore, FEM/BDC backup and write anti-theft data at the same time.
④ Support key unlocking, key refresh function.
⑤ Repair (FRM) Footwell module data without coding.
⑥ Support BMW 8HP (F/G chassis) gearbox refresh. 6HP (F chassis) gearbox refresh and cloning.
⑦ Support CAS1-CAS4 data restore. It can modify vehicle frequency, VIN, ISN code, or replace CAS module by modifying EE data.
⑧ Support OBD restore CAS3/CAS3+/CAS3+ problem caused by downgrade
⑨ Read ISN codes of N20/N55/N13 by OBD or without openning the DME shell. Read ISN code of MSV70/MSV80/MSD80 without opening the DME shell. Read ISN code of other models (B38, etc.) by opening the shell.
⑩ Support instrument calibration of BMW full range.

Jaguar/Land Rover KVM module Programming:
Support Adding key and all-key-lost for new Jaguar and land rover with KVM module after year 2015.

Porsche BCM module Programming:
Support Adding key and all-key-lost for new Porsche after year 2010

Volkswagen MQB module Programming:
Support parts of VDO key programming/mileage adjustment of VW MQB platform via OBD, and Passat MMC(NEC D70F3525+95320) instrument adjustment after years 2015 by ICP mode.

Fujitsu CPU module Programming:
Support Fujitsu CPU MB91F (Honda Fit,KIA K3/K5,Sonata 9,etc.) Mileage adjustment.

Clear EGS ISN
Scope of application:
For connecting BMW 6HP/8HP gearbox
Functions includes as below:
EGS State
Clear ISN
Reset Adaptation
Backup Coding
Recover Coding

Volvo ECM Key Programming
Adding Key & All Keys Lost from 2009-2018

VW/Audi Gearbox Clone Module
Support VW, Audi DQ200 (0AM/0CM), DQ250(02E/0D9), DL382(0CK), DL501(0B5), VL381(0AW) models and etc
