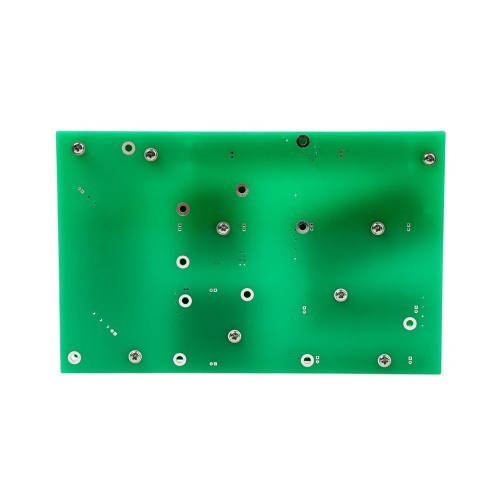

Yanhua Mini ACDP Module 5-Fujitsu CPU MB91F Module with License A803
2. Support mileage adjustment for Fujitsu CPU MB91F (Honda Fit, KIA K3/K5, Sonata 9, etc.
3. Can work with ACDP-1 and ACDP-2 Master basic version module
Yanhua Mini ACDP Module 5 Fujitsu CPU MB91FXX Read & Write
Function:
Supports Honda FIT, Vezel, Fifth generation Hyundai Sonata, Kia K3/K5 etc Fujitsu CPU MB91F series read & write function.
Module Feature:
1. The interface board replaces the welding wire
2. The pin connect with intelligent detection
3. The data reading and writeing is safe and reliable
Connection Diagram:
Fujitsu CPU MB91F Module APP Menu:
Yanhua Mini ACDP Master Module Instruction:
Note: From SK247-1 to SK247-13, the package doesn't include the main unit. For the new user, you need to buy extra main unit (sk247), if you already have the main unit, just buy the authorization with adapter.

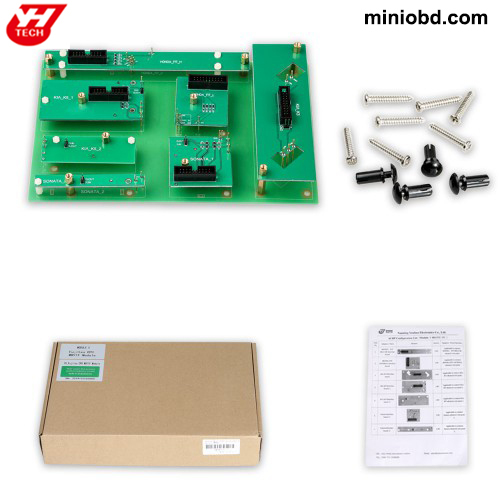

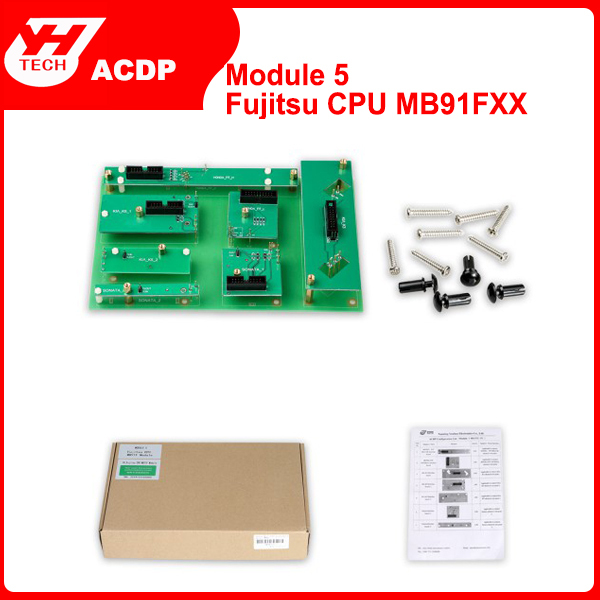

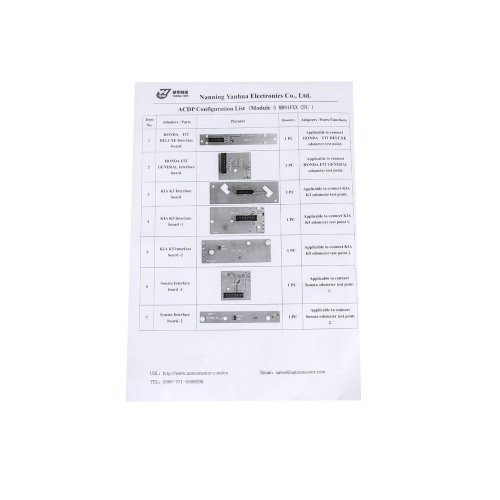

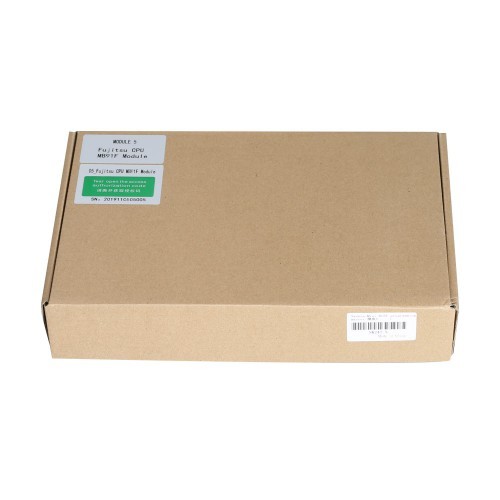

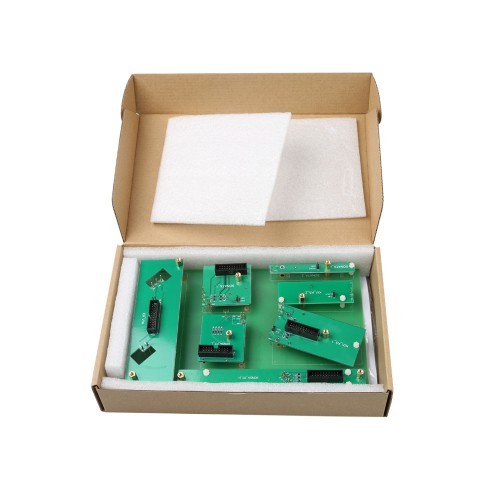

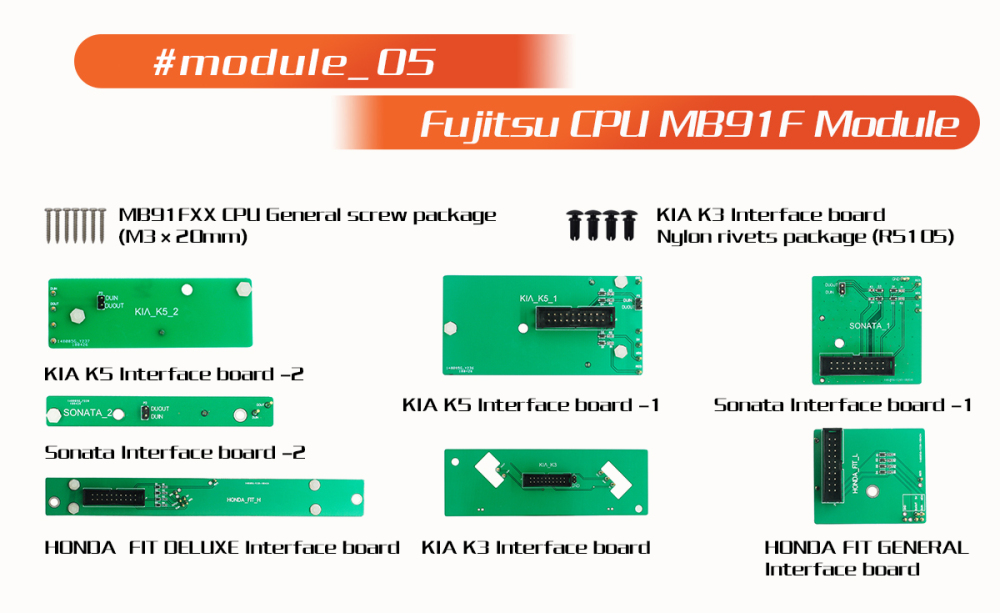

Yanhua Mini ACDP Module 5 Package List:

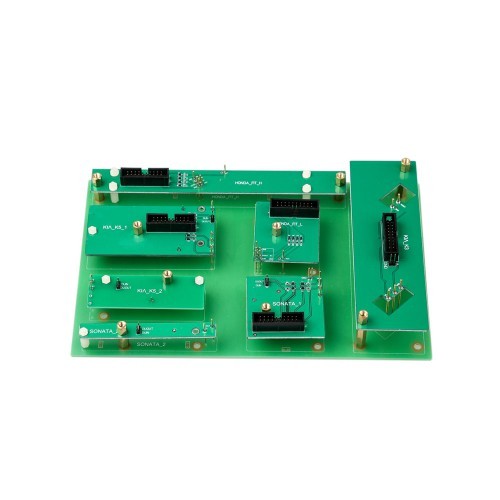

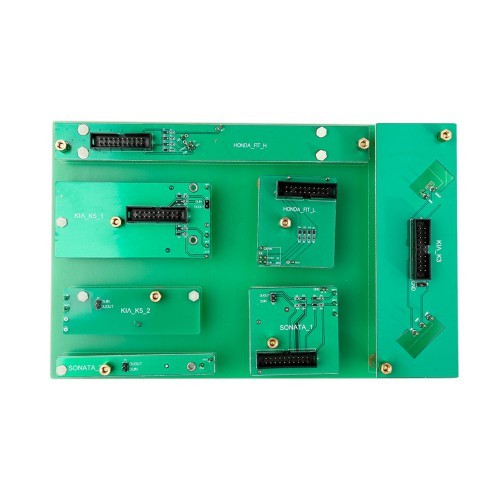

1 HONDA FIT DELUXE Interface board 1 PC Applicable to connect HONDA FIT DELUXE odometer test point.
2 HONDA FIT GENERAL Interface board 1 PC Applicable to connect HONDA FIT GENERAL odometer test point.
3 KIA K3 Interface board 1 PC Applicable to connect KIA K3 odometer test point.
4 KIA K5 Interface board -1 1 PC Applicable to connect KIA K5 odometer test point 1
5 KIA K5 Interface board -2 1 PC Applicable to connect KIA K5 odometer test point 2.
6 Sonata Interface board -1 1 PC Applicable to connect Sonata odometer test point 1.
7 Sonata Interface board -2 1 PC Applicable to connect Sonata odometer test point 2.

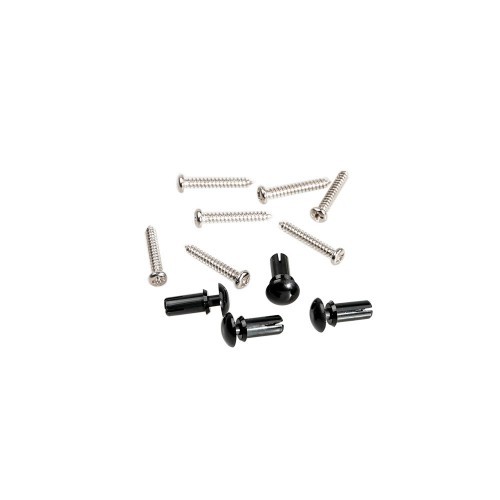

8 KIA K3 Interface board Nylon rivets package (R5105) 4 PC Applicable to fix KIA K3 Interface board.
9 MB91FXX CPU General screw package (M3×20mm) 7 PC Applicable to fix Honda, KIA, Hyundai Interface board.
