Yanhua Mini ACDP Module 33 with License A608 And 13 Full Set Adapters for VAG MQB48 Support Add Key All Key Lost Instrument Cluster KM

1. Support MQB 48 add key / all-key-lost ( need to get Synchronous data from third party) / cluster mileage.
2. Whole set compact size 13 solder-free interface board with A608 License for VAG MQB48.
3. Can work with both ACDP-1 and ACDP-2 Master basic version

Yanhua Mini ACDP Module 33 for MQB48 Key Programming Mileage Correction with License A608
Whole set compact size 13 solder-free interface board with License for MQB48.
Module 33 Support the following chip module instrument cluster
3524, 3525, 3526, 3529, 3532, 3533, 3536, 3537, and 8pin chip 95320

Module function:
Supports VW the 4th/4.5th generation and MQB 5A etc. IMMO and mileage correction
Add keys and All key lost for Volkswagen MQB48 (AKL need to get Synchronous data from third party)

Module features:

1: Using a quasi-blind plug-in interface board, no need to cut line, no need tolift pins, and data can be read and written without welding nor damage.
2: The third generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurateand firm.
3: The software comes with pin detection function, making data reading andwriting safer and more reliable.

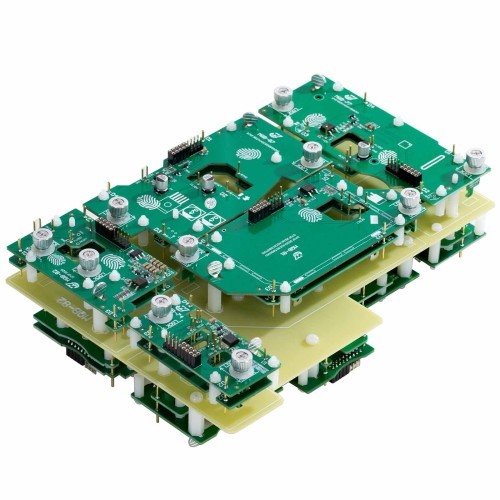

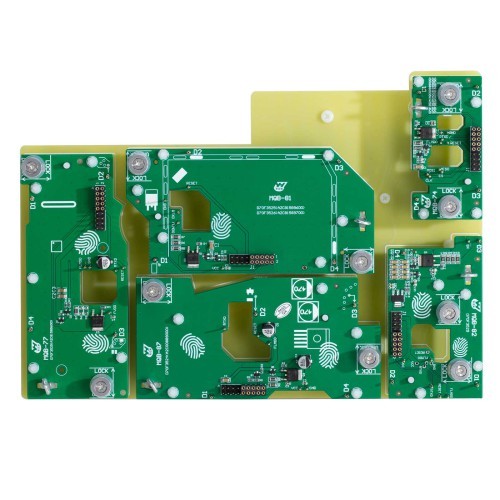

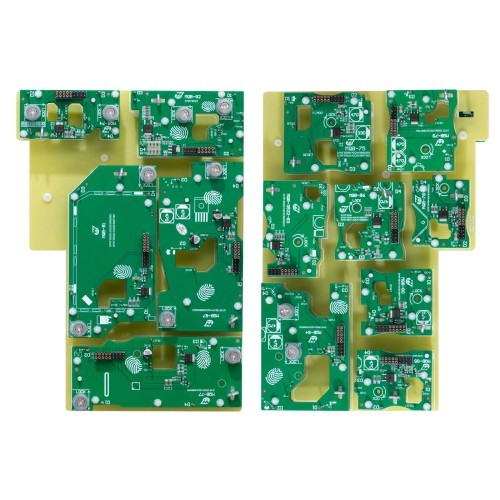

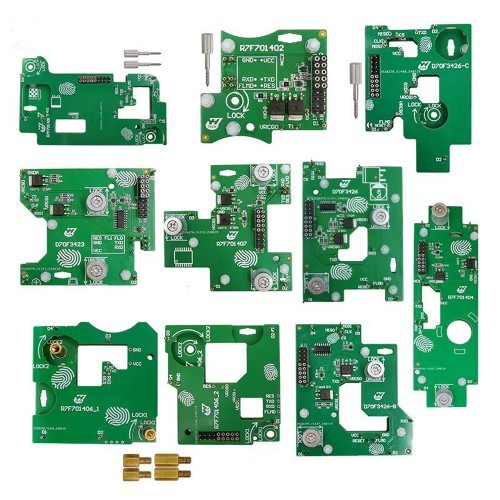

There are two kinds of interface boards:

- Lock Fastening Interface board
- Thumb Screw-Fastened Interface board

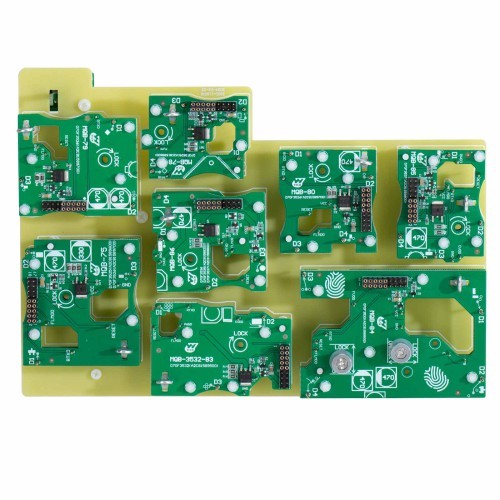

Module Support:

MQB-74 interface board Supports type:
D70F3524 (A2C00889000)
D70F3525 (A2C81589600)
D70F3526 (A2C81589700)

MQB-75 interface board
D70F3525 (A2C81589600)
F70F3526 (A2C81589700)

MQB-77 interface board
D70F3525 (A2C81589600)

MQB-78 interface board
D70F3525 (A2C81589600)

MQB-79 interface board
D70F3526 (A2C81589700)

MQB-80 interface board
D70F3526 (A2C81589700)

MQB-82 interface board
D70F3529

MQB-81 interface board
D70F3525 (A2C81589600)
D70F3526 (A2C81589700)

MQB-83 interface board
D70F3532 (A2C81589500)

MQB-84 interface board
D70F3532 (A2C81589500)

MQB-85 interface board
D70F3537 (A2C81589800)

MQB-86 interface board
D70F3535 (A2C81589200)
D70F3537 (A2C81589800)
D70F3536

MQB-87 interface board
D70F3524 (A2C00889000)

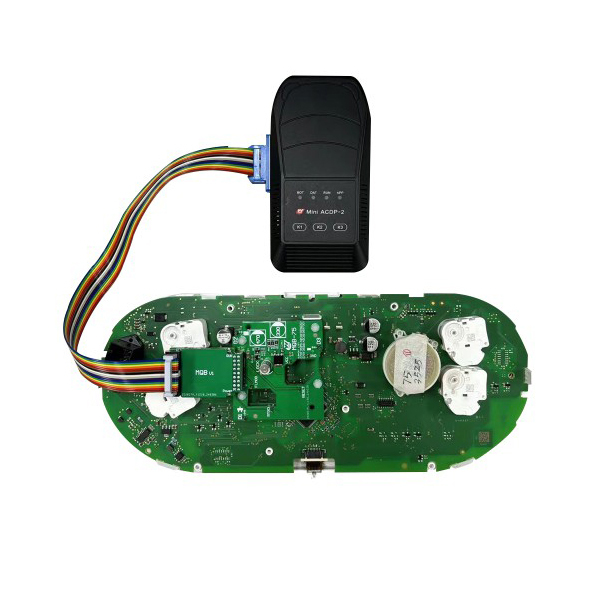

ACDP Module 33 Diagram:

APP Menu:

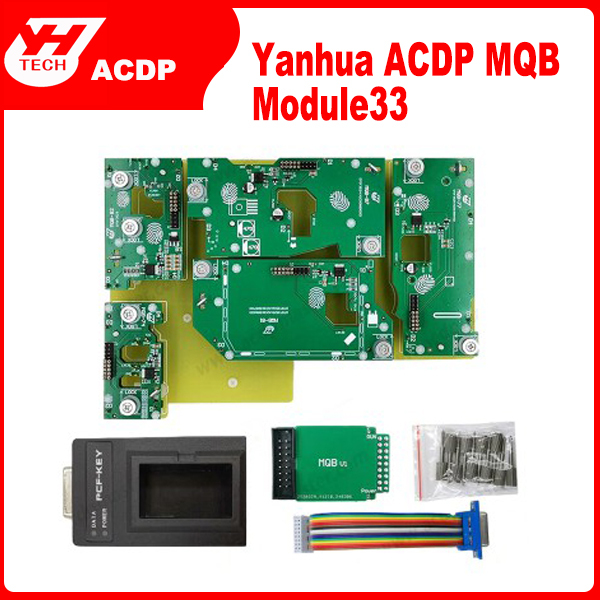

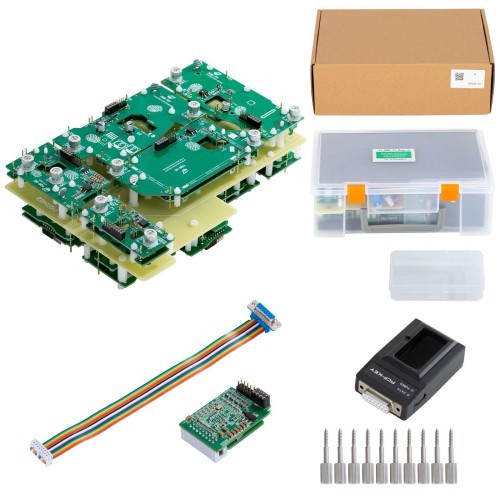

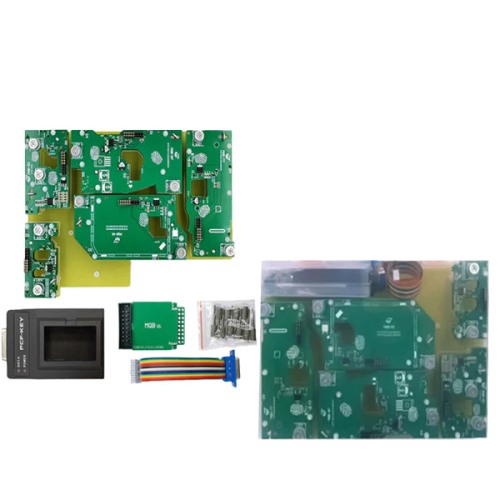

Package List:
