Xhorse VVDI MLB TOOL Key Programmer with Solder-free Adapter XDMLBPGL Kit and 5pcs XSMA4YEN Audi Style MLB 3 Buttons Key

Name: Xhorse VVDI MLB TOOL Key Programmer with Solder-free Adapter XDMLBPGL Kit and 5pcs XSMA4YEN Audi Style MLB 3 Buttons Key
Brand: Guangxi Flying Horse Electronics Co.,Ltd.
SKU: SK430+SO789+SA2214-B+SA2215-5PCS
Price: 459 USD
Availability: InStock

SKU: SK430+SO789+SA2214-B+SA2215-5PCS

5.0 (0)

18 Sold

$459.00

Xhorse XDMLB0 VVDI MLB Tool Add Key VAG MLB Works with VVDI Key Tool Plus VVDI2,No points required when using VVDI MLB specialized key.
XHORSE XDMLBPGL MLB Tool Solderfree Adapter Kit Support Add Keys for MLB Models.
5pcs XHORSE XSMA4YEN MLB Remote Key A.D A4 Model With 3 Buttons Key Shell Complete Key work with MLB / VVDI2 / Key Tool Plus

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (79)

1/1

Description

Xhorse XDMLB0 VVDI MLB Tool Add Key VAG MLB Works with VVDI Key Tool Plus VVDI2,No points required when using VVDI MLB specialized key.
XHORSE XDMLBPGL MLB Tool Solderfree Adapter Kit Support Add Keys for MLB Models.
5pcs XHORSE XSMA4YEN MLB Remote Key A.D A4 Model With 3 Buttons Key Shell Complete Key work with MLB / VVDI2 / Key Tool Plus

Xhorse VVDI MLB TOOL XDMLB0 Key Programmer with Solder-free Adapter XDMLBPGL Kit and 5pcs XSMA41EN Audi Style MLB 3 Buttons Key

Bundle Package: Xhorse VVDI MLB TOOL + XHORSE MLB Tool Solderfree Adapter Kit + 5pcs XHORSE XSMA4YEN MLB Remote Key A.D A4 Model With 3 Buttons Key Shell

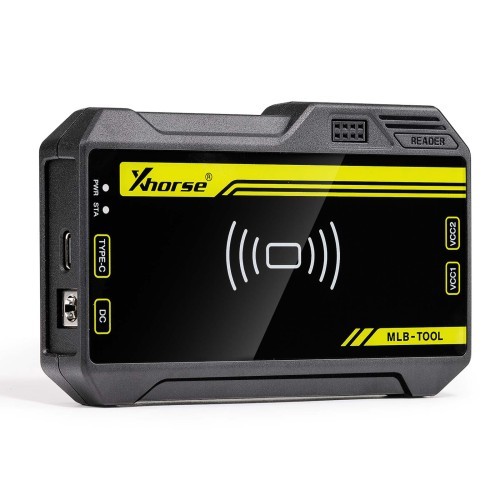

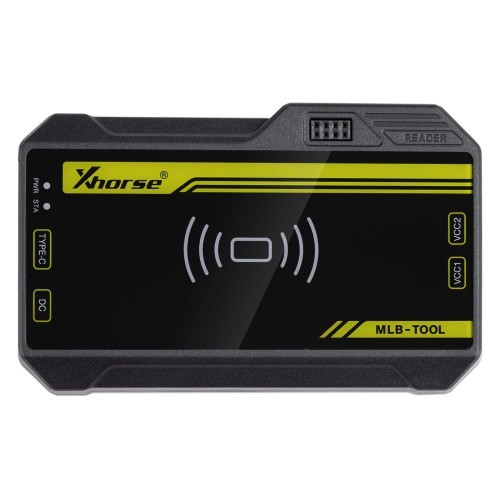

Xhorse VVDI MLB TOOL XDMLB0 Key Programmer Highlights:

Ultra capable in reading, writing and calculating
No points required when using VVDI MLB specialized key

The following two scenarios require points deduction for MLB calculations:

1. When adding keys, points will be deducted to calculate the IMMO data.
2. When doing key recovery, the second-hand key has been initialized and unlocked, but does not have the IMMO data of the key. You need to deduct a few points to collect and calculate the IMMO data of the key before it can be restored

Xhorse VVDI MLB TOOL Functions:

1. Work with VVDI2 / Key Tool Plus Pad for MLB immobilizer key learning, Support VVDI MLB special submachine, Support original key
VVDI2 requires VV-05 MQB and VV-02 VAG IMMO5 license activated

2.Excel in key Adding for MLB Models
Support adding keys for Audi, Porsche, Volkswagen, Lamborghini, Bentley, and other MLB vehicle models

3. No Need to Remove the Chip
Key data calculation requires only the disassembly of the key shell, with no need to remove the chip. Integrated with a 22k reader, it enables wireless key reading and writing without shell removal.

4. Wireless Key Generation for Ultimate Convenience
Generate original dealership keys and Xhorse specialized keys wirelessly.

5. Immo Detection Made Easy
Built-in Immo detection module supports wireless key recognition

6. Compatibility with Original Keys and Xhorse Specialized Keys
Support brand-new original keys (uninitiaIized/initiaIized) and can verify the status of the original keys. Support VVDI MLB specialized keys for unlimited reuse.

7. Rewrite Uninitialized Key IDs
Support rewriting uninitialized original key IDs.

8. No Need for On-Vehicle Data Collection
Simply collect key data, upload for calculation, and obtain Immo data without needing to access the vehicle.

Xhorse VVDI MLB TOOL Software Display:

Users are required to bind MLB-Tool with Xhorse App to perform immo data online calculation. Go to Special Function- Bind Device and scan QR code to bind device.
Software Update online, current version 1.0.3.0 (Software Free Download),Operating system: Win10, Win11

MLB PC Software is required when you use with vvdi2. If use with vvdi key tool plus, connect MLB-Tool with KTP via the OTG converter. Then you collect key data, make dealer key and learn key all in the key tool plus.

Xhorse VVDI MLB TOOL Q&A:

Q. Does this tool need tokens?
A. It depends on the key you use.
Collect the VVDI MLB key, no points are required
Collect the original key (without our VVDI MLB remote key), will require 200 points
Collect the original key (but have our VVDI MLB remote key), identify the VVDI key first, and then you can avoid deducting points. (1 VVDI key can only be identified once)

Q. When will MLB tool requires tokens?
A. 1. When adding keys, points will be deducted to calculate the IMMO data.
2. When doing key recovery, the second-hand key has been initialized and unlocked, but does not have the IMMO data of the key.
You need to deduct points to collect and calculate the IMMO data of the key before it can be restored.

Q. Does the original key for XHORSE MLB TOOL have to be a brand new one, or can it be a used one?
A. For the original key. Here are several occasions.
Unlocked, uninitialized, with ID, can generate and learn the key directly
Unlocked, uninitialized, but without ID, can change ID for once
Unlocked, initialized, can restore key to unlocked, uninitialized, no ID state by calculating anti-theft data
Locked, initialized, this original car key cannot be unlocke

Q. The MLB PC software is only required when using it with VVDI2, right?
A. yes, that is right. MLB PC software is needed when used with VVDI2. When using with a KTP, you can use an OTG adapter to connect. like this

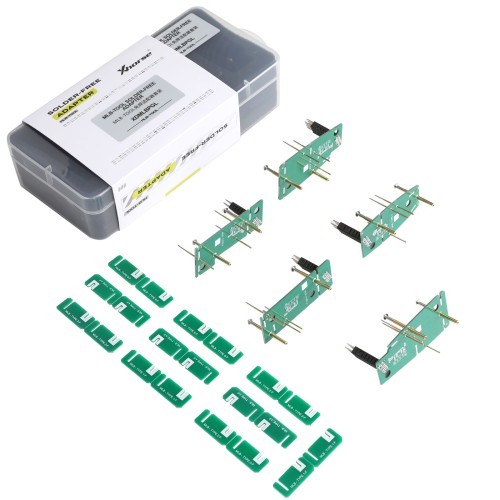

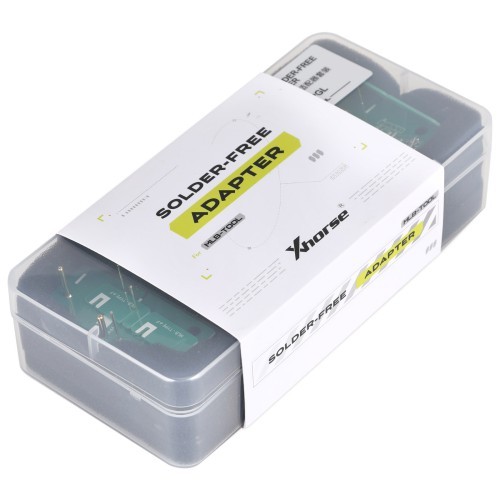

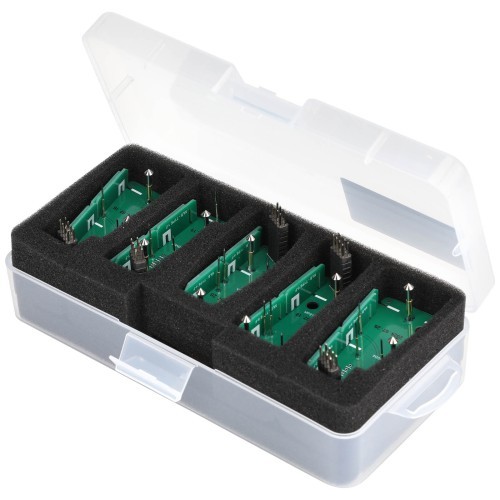

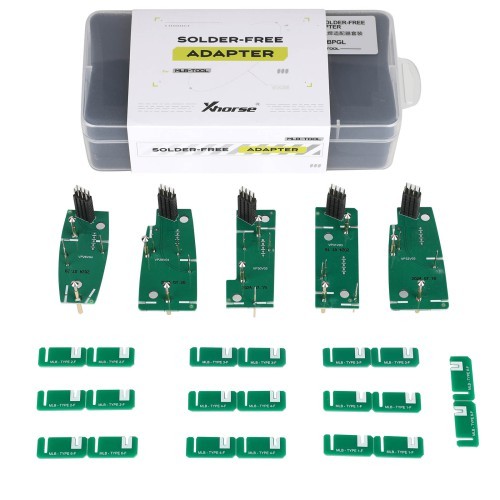

XHORSE MLB Tool Solderfree Adapter Kit XDMLBPGL

Add Keys for MLB Models with Ease

Work with Enhanced Safety
(Need to remove two capacitors)

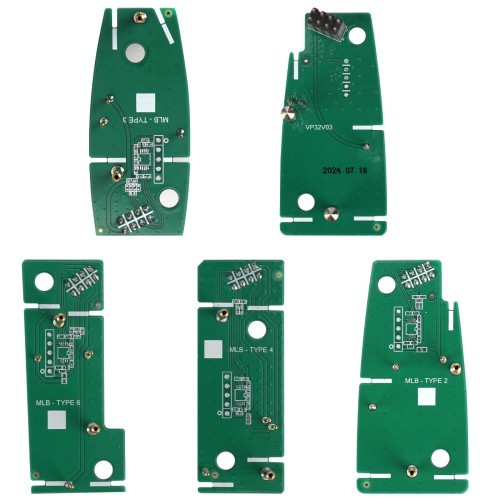

Type 1 Supported Models: Audi Lamborghini
Type 2 Supported Models: Audi Lamborghini
Type 3 Supported Models: Audi Bentley
Type 4 Supported Models: Porsche
Type 5 Supported Models: Volkswagen Touareg
XHORSE MLB Tool Solderfree Adapter Kit XDMLBPGL

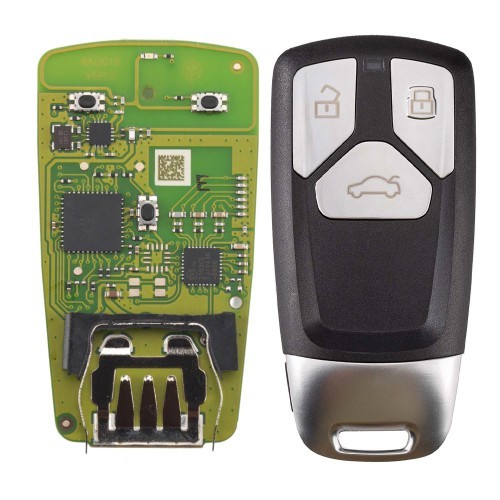

Xhorse XSMA4YEN MLB Remote Key A.D A4 Model PCB with 3 Buttons Key Shell work with MLB / VVDI2 / Key Tool Plus

PN: XSMA4YEN
Audi style MLB Key 3 Buttons
Work with VVDI MLB Tool /VVDI2/ VVDI Key Tool Plus, no need points

OEM chip solution, offering more options
Supports unlimited lD rewriting
Supports customizable button settings
Supports direct unlocking after programming

Supports MLB models

Audi
VW
Porsche
Bentley
Lamborghini

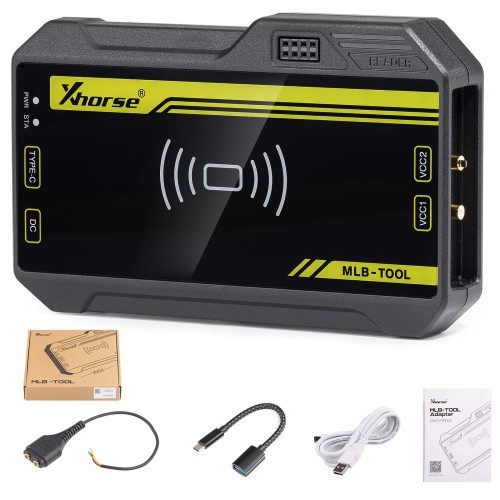

Package Includes:

1pc x MLB Tool
1pc x MLB Cable
1pc x USB Type C Cable
1pc x OTG Adapter
1pc x User Manual
1pc x MLB Tool Solder-free Adapter Kit XDMLBPGL
5pcs x Xhorse XSMA4YEN VVDI XS MLB key PCB
5pcs x Key Shell
Xhorse VVDI MLB TOOL XDMLB0 Key Programmer with Solder-free Adapter XDMLBPGL Kit and XSMA41EN Audi Style MLB 3 Buttons Key

Xhorse VVDI MLB TOOL XDMLB0 Key Programmer with Solder-free Adapter XDMLBPGL Kit and XSMA41EN Audi Style MLB 3 Buttons Key
