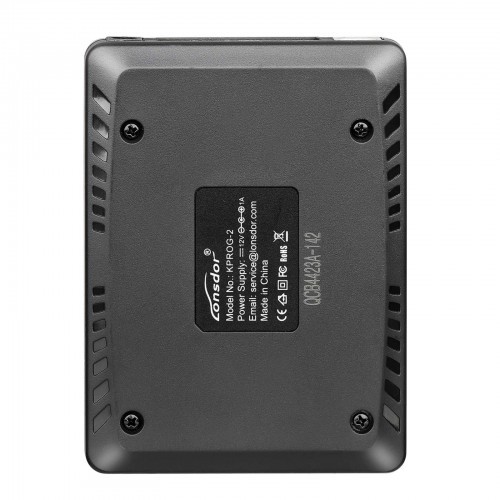

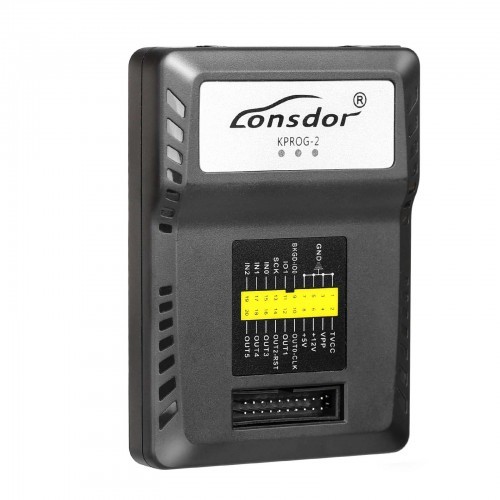

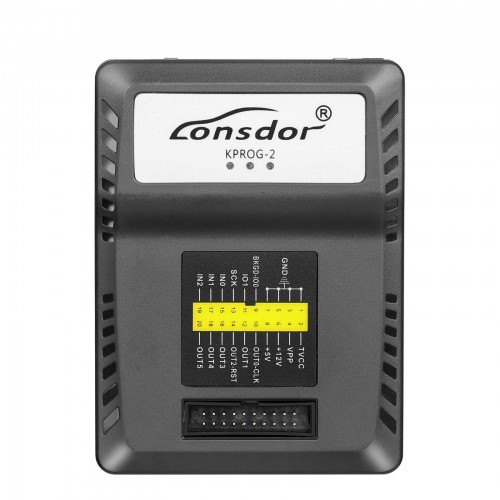

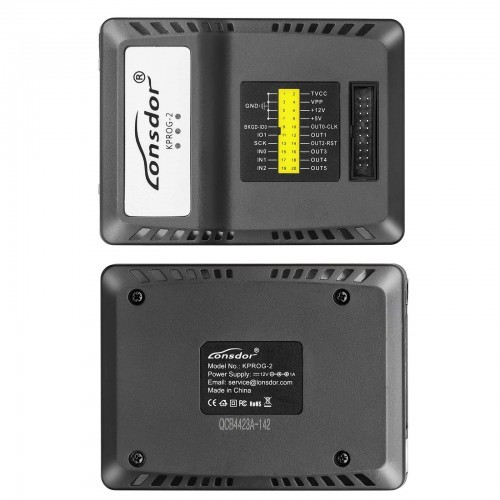

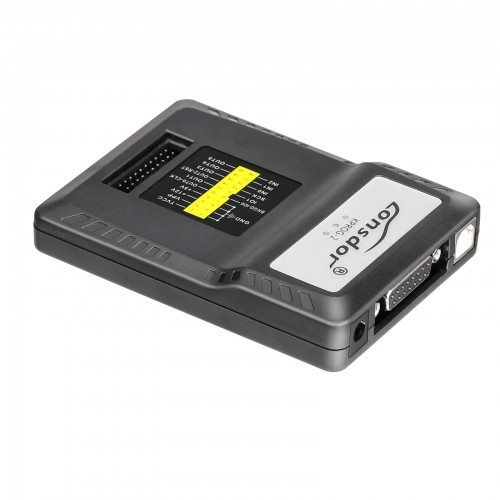

KPROG-2 Adapter for Lonsdor K518 FCV K518 Pro Key Programmer, you can get it for backup or replacement.
KPROG-2 Adapter for Lonsdor K518 Pro K518 FCV Key ProgrammerLonsdor K518 Pro /K518 FCV key programmer connecting the Kprog2 is able to read and write an eeprom soic chip/mcu chip. You can get data for backup or replacement.K518 Pro/FCV does not come with K-prog2. Need to be purchased seperately. KPROG adapter must be bound to K518 before using :Step 1. Connect adapter to K518 with mainlineStep 2. Connect K518 with 12V power supplyStep 3. Enter into “Setting”Step 4. Click “Bind adapter”Step 5. Click “OK” to completeLonsdor KPROG-2 Adapter Read & Write EEPROM Chip List
| 24 series Support ATMEL & ST chip |
| AT24C01 128 byte |
| AT24C02 256 byte |
| AT24C04 512 byte |
| AT24C08 1K |
| AT24C16 2K |
| AT24C32 4K |
| AT24C64 8K |
| AT24C128 16K |
| AT24C256 32K |
| |
| 93 series; Support ATMEL & ST chip |
| AT93C46-8bit 128 byte read/write |
| AT93C56-8bit 256 byte read/write |
| AT93C57-8bit 256 byte read/write |
| AT93C66-8bit 512 byte read/write |
| AT93C76-8bit 1024 byte read/write |
| AT93C86-8bit 2048 byte read/write |
| |
| AT93C46-16bit 128 byte read/write |
| AT93C56-16bit 256 byte read/write |
| AT93C57-16bit 256 byte read/write |
| AT93C66-16bit 512 byte read/write |
| AT93C76-16bit 1024 byte read/write |
| AT93C86-16bit 2048 byte read/write |
| |
| 25 series; Support ATMEL chip |
| AT25010 128 byte |
| AT25020 256 byte |
| AT25040 512 byte |
| AT25080 1K |
| AT25160 2K |
| AT25320 4K |
| AT25640 8K |
| AT25128 16K |
| AT25256 32K |
| AT25M01 1M |
| AT25M02 2M |
| |
| 95 series; Support ST chip |
| 95010 128 byte |
| 95020 256 byte |
| 95040 512 byte |
| 95080 1K |
| 95160 2K |
| 95320 4K |
| 95640 8K |
| 95128 16K |
| 95256 32K |
| 95M01 1M |
| 95M02 2M |
KPROG - 2
| Make |
Menu |
Application |
| EEPROM |
EEPROM/COMMON/24CXXX |
Read data, Write data, |
| EEPROM/COMMON/93CXXX |
Read data, Write data, |
| EEPROM/COMMON/25XXX/95XXX |
Read data, Write data, |
| Hex editor |
Hex editor/Hex editor |
Hex editor, |
| ADP TOOLS |
ADP TOOLS/CPLD program upgrade |
Adaptor LC4256V upgrade, Dashboard clock LC4256V upgrade, Adaptor EPM240 upgrade, |
| MCU |
MCU/Freescale/9S12G |
MC9S12G(N)16, MC9S12G(N)32, MC9S12G(A)48, MC9S12G(A)64, MC9S12G(A)96, MC9S12G(A)128, MC9S12G(A)192, |
| MCU/Renesas/R32C/M16C/UART |
Read FLASH, Read DATAFLASH, Read E2_FLASH, Write FLASH, Write DATAFLASH, Write E2_FLASH, |
| MCU/Renesas/R32C/M16C/SPI |
Read FLASH, Read E2FLASH, Write FLASH, Write E2FLASH, Read DATAFLASH, Write DATAFLASH, |
