- Lonsdor K518 PRO, 2nd generation product of K518, is a versatile key programming device released by Lonsdor, designed specifically for the technician and locksmiths.
- Integrated with all functions and features of K518ISE, this tablet device shows more advantages and functionality.
- 2 years Free Update, with Free Toyota AKL Activation / JLR License / Nissan License / Volvo License

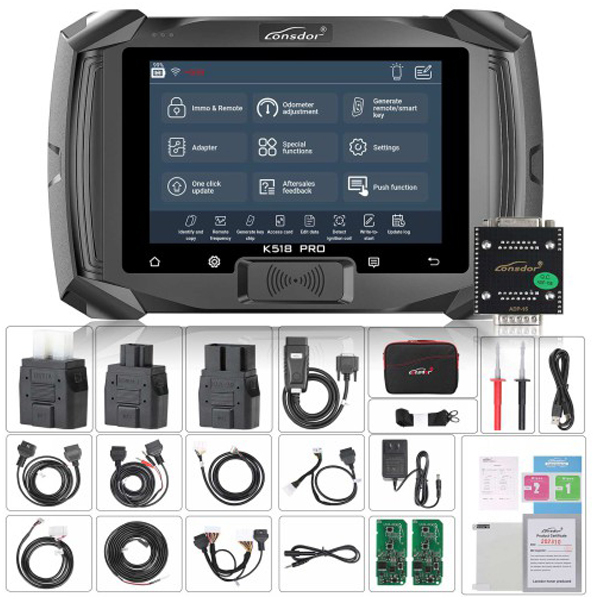

- Full Version with 2pcs LT20, Toyota FP30 Cable, Nissan 40 BCM Cable, JCD, JLR and ADP Adapter
Lonsdor K518 PRO Full Version All In One Key Programmer
Warm Notice: Buy Lonsdor K518 PRO Full Version Get Extra 4pcs LT20 PCBs for free.
The difference between Lonsdor LT20 smart keys is the design.
Lonsdor LT20-01 Smart Key PCB For Toyota + Lexus Smart Key 2007+ Board number: 3370, 0410, A433, F433, 5290, etcLonsdor LT20-02 Smart Key PCB For Subaru Smart key Board number: 5801, 7000 Lonsdor LT20-03 Smart Key PCB For Toyota Smart key 2007+ Board Number: 0780, 0500, 0091, etc...Lonsdor LT20-04 Smart Key PCB For Toyota + Lexus Smart Key 2011+ Board number: 2110, 0020, 0010, 0101, 7930, 0182, etcLonsdor LT20-05 Smart Key PCB For Toyota Sienna Smart Key 2010+ Board version: 5691 Lonsdor LT20-06 Smart Key PCB For Toyota Smart Key 2012+ Board number: 5380, 0120, etc.Lonsdor LT20-07 Smart Key PCB For Lexus Smart Key 2018+ Board number: 0440, 3410, etc.Lonsdor LT20-08 Smart Key PCB For Toyota Smart Key 2018+ Board number: 0410, 0351, 3450, 3330, etc.Lonsdor LT20-10 Smart Key PCB For Toyota/Lexus
Lonsdor K518 PRO, 2nd generation product of K518, is a versatile key programming device released by Lonsdor, designed specifically for the technician and locksmiths. Integrated with all functions and features of its predecessor, this tablet device shows more advantages and functionality, including immobilization, odometer adjustment, remote/smart key generate, adaptor, chip identify and copy, key chip generate, remote frequency detect, ignition coil detect, Toyota smart key settings, one-key update, push function and etc.
Lonsdor K518 PRO Highlights:1. Full Version with LT20 Smart Key 2pcs, Toyota FP30 Cable, Nissan 40 BCM Cable, JCD FCA 12+8 FCA, JLR Cable and ADP Adapter2pcs x LT20 Smart Key PCB (gift)1pc x Toyota FP30 Cable (gift)1pc x Nissan 40PIN-BCM Cable (gift)1pc x L-JCD 12+8 FCA Cable (gift)1pc x JLR 2015-2021 Connector (gift)1pc x Super ADP 8A/4A Adapter (gift)2. Including LKE Smart Simulator Function
3. 2 Years Free Update. After 2 years the update cost will be as following:
First Time Update Service ($480)
Second Time Update Service ($360)
Third Time Update Service ($200)
4. Free Toyota AKL Activation / JLR License / Nissan License / Volvo License
5. Support CAN FD and DOIP
6. Support 24V Lorry and Heavy Trucks

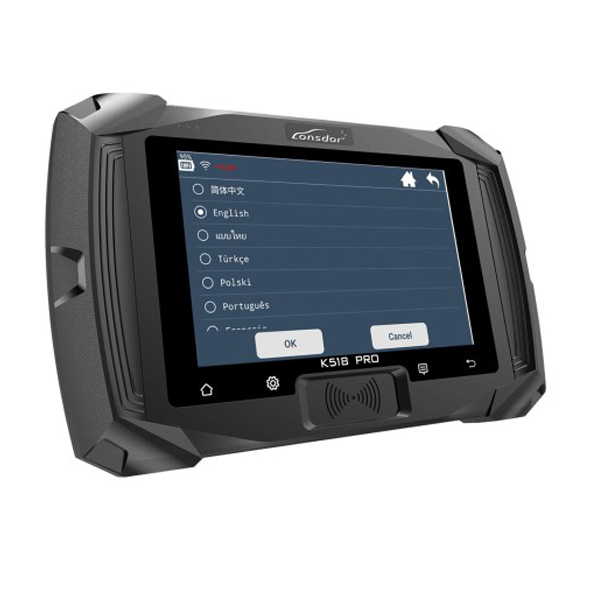

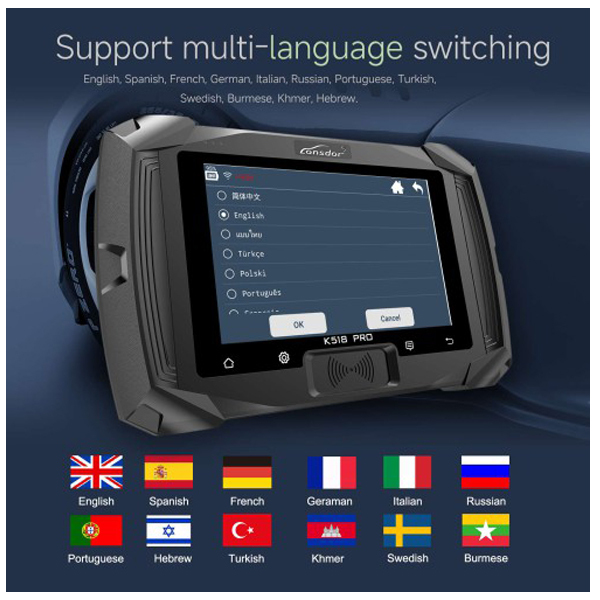

7. Supported language: English, Spanish, French, German, Italian, Russian, Portuguese, Turkish, Swedish, Burmese, Khmer, Hebrew.
8. Global Version, supports Indian, Malaysian etc brandsOther Optional Accessories You May Need:
Lonsdor KPROG2 KPROG-2 Adapter to read and write an eeprom soic chip/mcu chip. Get data for backup or replacement. If you have KPROG-2 from old Lonsdor K518, can only buy an extra adapterLonsdor LT20 Series 8A+4D Universal Smart Remote Key PCBS for Toyota LexusLonsdor LT30 Series TOYOTA 4A Universal Smart Key PCB Lonsdor DOIP Cable Support Program Smart Key and AKL Program Lonsdor SGW FCA 12+8 Special Adapter for Chrysler Dodge Jeep RAM FIAT MASERATI 2018+ Compatible with Mulit Key programmer / Diagnostic toolSoftware/Hardware Advantages:Trendy tablet design with support frame, better user experience;Based on Android 9, more optimized operation;With Quad-core A7, the strongest computing power, 2 times that of A33;Excellent and powerful ultra-high energy consumption ratio;The first to support 8A(H chip) generation;Added support for CANFD and DoIP protocols.Function SuperiorityMore comprehensive functions and features based on K518;Support most car models on the market, luxury, domestic and popular cars all included;Networking/Pincode/OBD program, not required for most models;Support 24V lorry and heavy trucks.Lonsdor K518 PRO Functions:Immobilization: Program mechanical key/smart key/remote, etc. Support most of car models on the market, regular updates for new modelsOdometer Adjustment: Mileage diagnosis and correctionGenerate Remote/smart: Generate smart key/remote/garage door remoteAdaptor: Read and write EEPROM chip/CPU main control chip, read EEPROM Pincode, etcSpecial Functions: Identify and copy key chip, generate key chip, detect remote frequency, simulate chip, decode chip, detect ignition coil, key settings, access control card, etcPush Function: Push the designated function App to user, which will be automatically disabled when expired. Contact us to obtain function not activated yetOBD II converter: OBD connector’s light can be switched on/offLonsdor K518Pro Special Functions:Generate key chip: Support 4D, 46, 48, 7935, 8A and more key chip generationIdentify&Copy chip: Identify info and status of almost all car key chips on the marketGenerate remote: Detect remote key’s frequencySimulate chip: Mainly LKE functions, include: simulate 4D/46/8A chip, bind LKE and obtain LKE info, etcDecode chip: Support 46 and 4D chip decodingIgnition coil Detect: if the coil has signal, also identify key type on AKL conditionKey settings: Set Lonsdor 8A and 4D smart key type/ Lonsdor Smart Key Series, LT20 SeriesUnlock key: Unlock Toyota 8A smart keyAccess control card: Identify and copy IC/ID card
Lonsdor K518Pro Vs K518/K518s:
| Model no. |
K518 Pro |
K518 |
| PIC |
 |
 |
| CPU |
PX30 1.8GHZ |
A33 1.3GHZ |
| RAM |
2+8G |
1+8G |
| WIFI module |
Enhanced WIFI |
2.4G |
| Battery |
5800mAh |
3800mAh |
| Quick charge |
Support |
/ |
| Resolution |
1280*800 |
1024*600 |
| Screen |
7 Inch full view HD screen |
7 inch |
| Bluetooth module |
Support |
/ |
| File transfer mode |
Bluetooth+USB |
USB |
| USB port |
Type-C |
USB square port |
| Button |
Full touch+Shortcuts |
Touch+button |
| Host interface |
15 PINS |
25 PINS |
| Enhanced Toyota/Lexus Simu-Antenna |
Built-in |
Work with LKE |
| Smart key generation interface |
Support |
/ |
| Simu-Antenna interface |
Support |
/ |

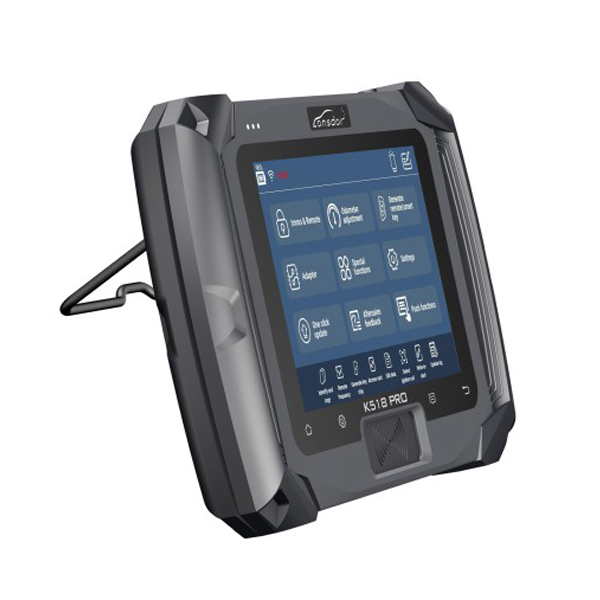

| Device bracket |
Support |
/ |
| Enhanced remote detect module |
Support |
/ |
| Frequency identification range |
more frequency bands |
little frequency bands |
| Common function shortcuts |
Support |
/ |
| USB2.0 interface extension |
Support |
Support |
| OBD‖cable self-test |
Support |
/ |
| OBD‖cable illumination |
Support |
/ |
| CAN-FD Protocol module |
Support |
/ |
| DOIP Protocol module |
Support |
/ |
| CAN Protocol module |
Support |
Support |
| SCAN Protocol module |
Support |
Support |
| ISO-9141K-Line Protocol |
Support |
Support |
| ISO-14230 K-Line Protocol |
Support |
Support |
| ISO-15765 CAN Protocol |
Support |
Support |
| ISO-11898-2 DWCAN Protocol |
Support |
Support |
| ISO-11898-3 DWFTCAN Protocol |
Support |
Support |
| SAE-J1850VPW Protocol |
Support |
Support |
| SAE-J1850-PWM Protocol |
Support |
Support |
| SAE-J2411 SWCAN Protocol |
Support |
Support |
| SAE-J2610 SCI Protocol |
Support |
Support |
| SAE-J1567 CCD bus Protocol |
Support |
Support |
| SAE-J2740 Protocol |
Support |
Support |
| SAE-J2809 Protocol |
Support |
Support |
| VAG TP16 CAN Protocol |
Support |
Support |
| SAE-J2819 Protocol |
Support |
Support |
| SAE-J2818 Protocol |
Support |
Support |
| NISSAN DDL UART Protocol |
Support |
Support |
| BMW DS2 Protocol |
Support |
Support |
| Ford UBP Protocol |
Support |
Support |
| J1850 Protocol module |
Support |
Support |
| EV |
Support |
Support some models |
| Hybrid Vehicle |
Support |
Support some models |
| Diesel Vehicle |
Support |
Support some models |
| Generate emergency key |
Support |
/ |
| Disable immo |
Support |
/ |
| Access card IC/ID card copy |
Support |
/ |
| Write-to-start |
Support |
/ |
| Generate smart key |
Support |
Support |
| Generate garage remote |
Support |
Support |
| Detect ignition coil |
Support |
Support |
| Unlock Toyota working key |
Support |
Support |
| Generate key chip |
Support |
Part Support |
| Identify & copy chip |
Support |
Support |
| Hex editor |
Support |
Support |
| decode chip |
Support |
Support |
| File manager/edit |
Support |
/ |

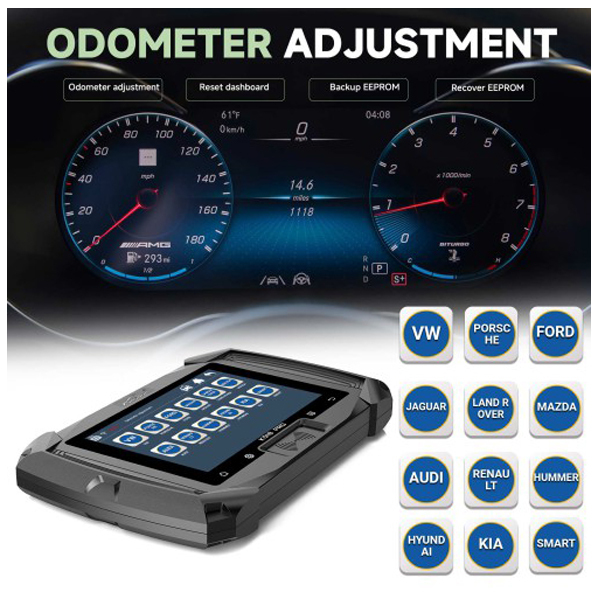

| EEPROM data odometer adjustment |
Support |
Support |
| Auto-identify immo system |
Part Support |
Not Support |
| Read & Write MCU data |
Support |
Support |
| Enhanced Toyota/Lexus Simu-Antenna |
Built in |
Work with LKE |
| KPROG adaptor |
support |
Support |
| 16+32 cable |
support |
Support |
| L-JCD cable |
support |
Support |
| JLR cable |
support |
Support |
| Third part decoder |
support |
Support |
| Free Annual subscription |
two years |
one year |
| Volvo license |
Free |
Charge |
| Lynk&Co license |
Free |
Charge |
| Nissan license |
Free |
Charge |
| Toyota license |
Free |
Charge |
| Jaguar Land Rover license |
Free |
Charge |
| LEXUS license |
Free |
Charge |
OCT.2025K518 SERIES ALFA ROMEO Update
Select from vehicle\Australia\Stelvio\2018-2022\Smart key
Select from vehicle\Australia\Giulia\2018-2022\Smart key
Select from vehicle\North America\Stelvio\2018-2022\Smart key
Select from vehicle\North America\Giulia\2018-2022\Smart key
Select from type\Type 11
Select from vehicle\Europe\Stelvio\2018-2022\Smart key
Select from vehicle\Europe\Giulia\2018-2022\Smart key
Select from vehicle\Asia\Stelvio\2018-2022\Smart key
Sept.2025
K518 SERIES FORD Update
USA\Ecosport\2018-2019\Program smart key
USA\Ecosport\2019-\Program smart key
USA\Focus\2018-2019\Program smart key
USA\Focus\2019-\Program smart key
USA\Ecosport\2018-2019\Program key
USA\Focus\2018-2019\Program key
USA\Focus\2019-\Program key
China\Focus\New Focus\2019-2021\Program key
China\Focus\New Focus\2019-2021\Program smart key
China\Escort\2019-\Program key
China\Ecosport\2018-\Program smart key
China\Escort\2019-\Program smart key
China\Ecosport\2018-\Program key
Asia\Ecosport\2018-2019\Program smart key
Asia\Ecosport\2019-\Program smart key
Asia\Focus\2019-\Program smart key
Asia\Ecosport\2018-2019\Program key
Asia\Focus\2018-2019\Program key
Asia\Focus\2019-\Program key
Europe\Ecosport\2018-\Program key
Europe\Fiesta\2018-\Program key
Europe\Ecosport\2018-\Program smart key
South America\Focus\2019-\Program key
South America\Ecosport\2018-2021\Program key
South America\Ecosport\2018-2021\Program smart key
South America\Focus\2019-\Program smart key
Aug.2025
K518 SERIES BYD Update
Smart key\Seal series\Seal 06
Smart key\Seal series\Seal 07
Smart key\Formula Leopard series\Formula Leopard 5
Smart key\Formula Leopard series\Formula Leopard 8
Smart key\Yangwang series\Yangwang U8
Smart key\Yangwang series\Yangwang U9
Smart key\E6
June. 2025
K518 SERIES TRUMPCHI ROEWE GREAT WALL MOTOR GEELY/ENGLON/MAPLE VENUCIA SERES ORA Update
TRUMPCHI\E9\Smart key
TRUMPCHI\Hyper SSR\Smart key
TRUMPCHI\Aion Y PLUS\Smart key
ROEWE\IMMO\i5\2022-\With smart
ROEWE\IMMO\D7
GREAT WALL MOTOR\Great Wall\Poer\Mechanical key
GREAT WALL MOTOR\Haval\H5\Mechanical key\2023-
GEELY/ENGLON/MAPLE\Emgrand\Borui ePro\PEPS
VENUCIA\Select from vehicle\V DD-i\Smart key
VENUCIA\Select from vehicle\T60EV\Smart key
SERES\AITO M5 EV\PEPS
ORA\Catera\2021-\Smart key_type 1(old)
ORA\Black Cat\2021-\Smart key_type 1(old)
K518 SERIES CHRYSLER JEEP Update
CHRYSLER\Select from vehicle\Middle East\300\2019-2020\Smart key
CHRYSLER\Select from vehicle\Middle East\300\2018\Smart key
Select from vehicle\South America\Grand Cherokee\2018-2019\Smart key
Select from vehicle\South America\Grand Cherokee\2020-2021\Smart key
April.2025
K518 SERIES AEOLUS Update
AEOLUS\A60\A60-Mechanical key(2016-)\IMMO
AEOLUS\AX7 PHEV\Smart key
AEOLUS\E70(280)\Smart key
AEOLUS\E70(280)\Mechanical key
AEOLUS\E70(300)\Smart key
AEOLUS\E70(300)\Mechanical key
AEOLUS\E70(400)\Smart key
AEOLUS\E70(400)\Mechanical key
AEOLUS\E70(500)\-2020\Smart key
AEOLUS\E70(500)\2020-\Smart key
AEOLUS\L7\Smart key
AEOLUS\Fu Kang\ES600\With smart
AEOLUS\Fu Kang\ES600\IMMO-Type 1
AEOLUS\Fu Kang\ES600\IMMO-Type 2
AEOLUS\NAMMI 01\Smart key
AEOLUS\New AX7\2020\Smart key
AEOLUS\New AX7\2021\Smart key
AEOLUS\eπ\Smart key
AEOLUS\HaoHan\Smart key
AEOLUS\A60\A60-Mechanical key(2016-)\BCM
March.2025
K518 SERIES BAIC Update
BAIC\Baic\BJ40\Smart key(type 1)
BAIC\Baic\BJ40C\Smart key
BAIC\Baic\U5\Smart key(type 1)
BAIC\Baic\U5\Smart key(type 2)
BAIC\Electric vehicle(EV)\EC180\Immobilizer\Remote program method
BAIC\Electric vehicle(EV)\EC3\Immobilizer\Remote program method
BAIC\Electric vehicle(EV)\EU5\Immobilizer
BAIC\Senova\Beijing U7\Smart key
BAIC\Senova\Beijing-X5\Smart key
BAIC\Senova\E130/E150\Immobilizer
BAIC\WeiWang\M20\Immobilizer\Remote program method
BAIC\WeiWang\M30\Immobilizer\Remote program method
K518 SERIES FERRARI Update
FERRARI\Select from type\Immobilizer\3K91D_48
FERRARI\Select from type\Immobilizer\Immobilizer
FERRARI\Select from type\Smart key
FERRARI\Select from vehicle\296\Smart key
FERRARI\Select from vehicle\458\Immobilizer\1K79X_48
FERRARI\Select from vehicle\458\Immobilizer\3K91D_48
FERRARI\Select from vehicle\488\Immobilizer\1K79X_48
FERRARI\Select from vehicle\488\Immobilizer\3K91D_48
FERRARI\Select from vehicle\488\Immobilizer\Immobilizer
FERRARI\Select from vehicle\488\Smart key
FERRARI\Select from vehicle\599\Immobilizer\1K79X_48
FERRARI\Select from vehicle\599\Immobilizer\3K91D_48
FERRARI\Select from vehicle\599\Immobilizer\Immobilizer
FERRARI\Select from vehicle\612 Scaglietti\Immobilizer\1K79X_48
FERRARI\Select from vehicle\612 Scaglietti\Immobilizer\3K91D_48
FERRARI\Select from vehicle\612 Scaglietti\Immobilizer\Immobilizer
FERRARI\Select from vehicle\812\Smart key
FERRARI\Select from vehicle\Enzo\Immobilizer\1K79X_48
FERRARI\Select from vehicle\Enzo\Immobilizer\3K91D_48
FERRARI\Select from vehicle\Enzo\Immobilizer\Immobilizer
FERRARI\Select from vehicle\F12\Immobilizer\1K79X_48
FERRARI\Select from vehicle\F12\Immobilizer\3K91D_48
FERRARI\Select from vehicle\F149\Immobilizer\1K79X_48
FERRARI\Select from vehicle\F149\Immobilizer\3K91D_48
FERRARI\Select from vehicle\F60 America\Immobilizer\1K79X_48
FERRARI\Select from vehicle\F60 America\Immobilizer\3K91D_48
FERRARI\Select from vehicle\F60 America\Immobilizer\Immobilizer
FERRARI\Select from vehicle\F8\Smart key
FERRARI\Select from vehicle\FF\Immobilizer\1K79X_48
FERRARI\Select from vehicle\FF\Immobilizer\3K91D_48
FERRARI\Select from vehicle\GTC4 Lusso\Smart key
FERRARI\Select from vehicle\J50\Immobilizer\1K79X_48
FERRARI\Select from vehicle\J50\Immobilizer\3K91D_48
FERRARI\Select from vehicle\J50\Immobilizer\Immobilizer
FERRARI\Select from vehicle\J50\Smart key
FERRARI\Select from vehicle\LaFerrari\Immobilizer\1K79X_48
FERRARI\Select from vehicle\LaFerrari\Immobilizer\3K91D_48
FERRARI\Select from vehicle\LaFerrari\Immobilizer\Immobilizer
FERRARI\Select from vehicle\LaFerrari\Smart key
FERRARI\Select from vehicle\Portofino\Smart key
FERRARI\Select from vehicle\Roma\Smart key
FERRARI\Select from vehicle\SF90\Smart key
FERRARI\Select from vehicle\California\Immobilizer\1K79X_48
FERRARI\Select from vehicle\California\Immobilizer\3K91D_48
FERRARI\Select from vehicle\California\Immobilizer\Immobilizer
FERRARI\Select from type\Immobilizer\1K79X_48
K518 SERIES DAIHATSU Update
Select from vehicle\Japan\TANTO\2013-2018\PEPS 3
Select from vehicle\Japan\TANTO\2009-2013\PEPS
Select from vehicle\Japan\MOVE\2010-2014\PEPS 1
Select from vehicle\Japan\MIRA\2019-2021\PEPS 2
Select from vehicle\Japan\MIRA\2018\PEPS 2
Select from vehicle\Japan\MIRA\2011-2017\PEPS 3
Select from vehicle\Japan\MIRA\2010\PEPS 2
Select from vehicle\Japan\MIRA\2006-2009\PEPS
Select from vehicle\Japan\TANTO X\2013-\PEPS
Select from vehicle\Japan\TANTO\2013-2018\PEPS 1
Select from vehicle\Japan\PIXIS EPOCH\2016-\PEPS
Select from vehicle\Japan\MOVE\2010-2014\PEPS 2
Select from vehicle\Japan\MIRA\2011-2017\PEPS 1
Select from vehicle\Japan\WAKE\2014-2022\PEPS
Select from vehicle\Japan\TANTO\2013-2018\PEPS 2
Select from vehicle\Japan\MIRA\2019-2021\PEPS 1
Select from vehicle\Japan\MIRA\2018\PEPS 1
Select from vehicle\Japan\MIRA\2011-2017\PEPS 2
Select from vehicle\Japan\MIRA\2010\PEPS 1
Select from vehicle\Japan\COPEN\2014-\PEPS
Select from vehicle\Japan\TANTO\2008-2019\Mechanical key

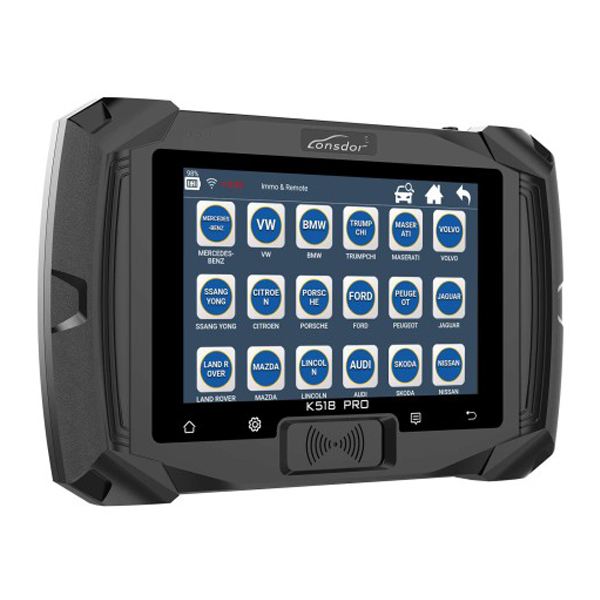

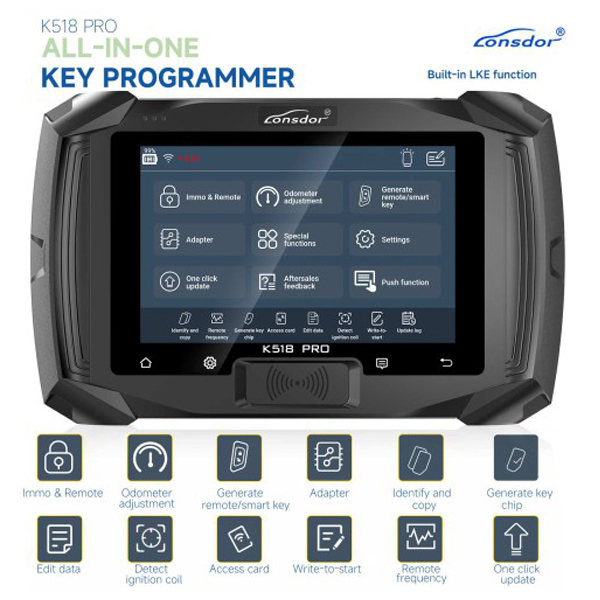

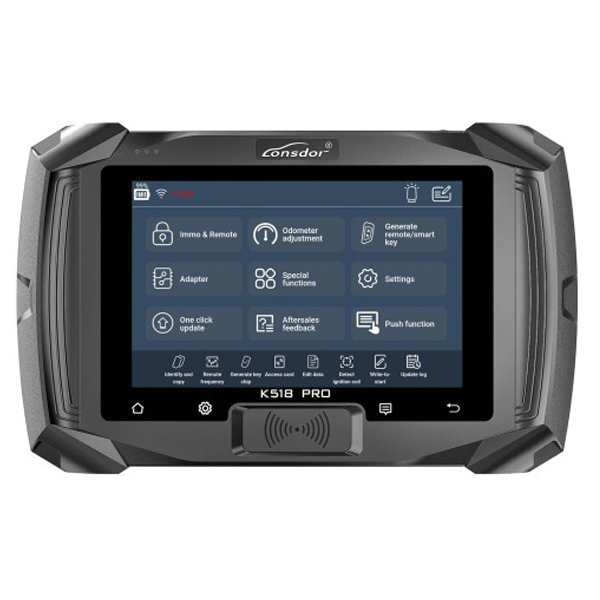

K518PRO/K518 Series reprogram the deleted original Toyota 8A-AA, 8A-BA keys on Avalon 2019 AKLMenu path: Special functions- Key settings-ProgramToyota original key(AA / BA)Specs and Parameter:Operation system: Android 9Processor: Allwinner A50Memory: Ram 2G flash 8GDisplay: MIPI 800*1280WiFi: (802.11 b/g/n)USB: USB2.0Bluetooth: 4.1SD card: support Plug & UnplugBattery: 5800MAInput voltage: 12VShell material: PC hard shell+TPR60°Dimension: 26* 3 *16CMPackage List:1set x Lonsdor K518 Pro main host2pcs x LT20 Smart Key PCB (gift)1pc x Toyota FP30 Cable (gift)1pc x Nissan 40PIN-BCM Cable (gift)1pc x L-JCD 12+8 FCA Cable (gift)1pc x JLR 2015-2021 Connector (gift)1pc x Super ADP 8A/4A Adapter (gift)1pc x Power adapter1pc x Acquisition Antenna1pc x Type-C cable1pc x KIA/HYUNDAI connector1pc x HONDA connector1pc x KIA connector1pc x OBD2 test cable1pc x Certificate & user manual card1pc x Main unit packing bag1pc x Toyota FP27 cable(gift)1pc x Toyota FP24 cable(gift)
