Your position: Home > Original GODIAG Tools > GODIAG ECU GPT Boot AD Programming Adapter for FC200 OBDSTAR DC706 Godiag GT100

1/1

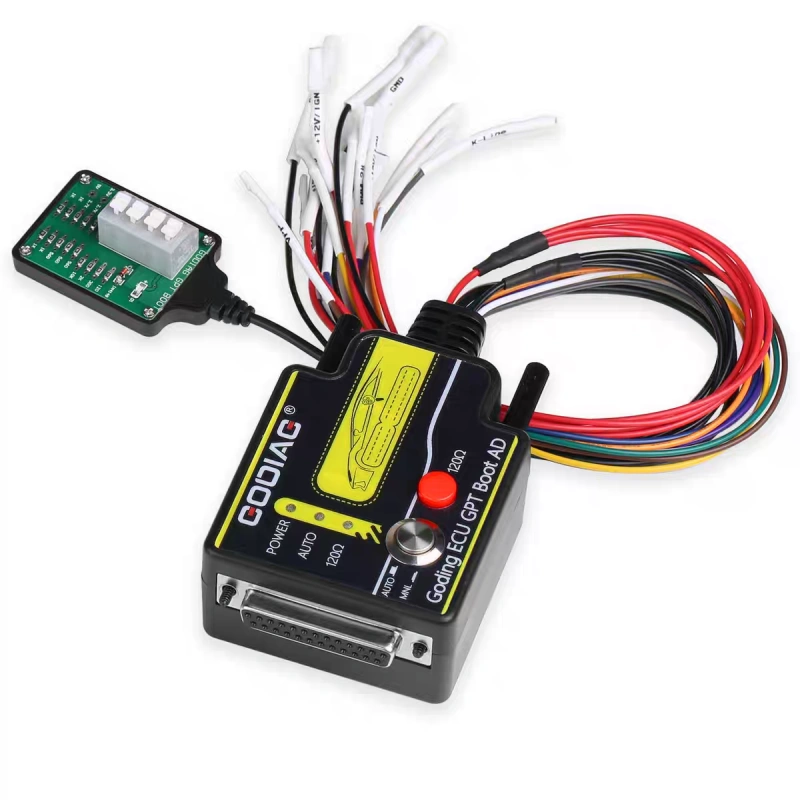

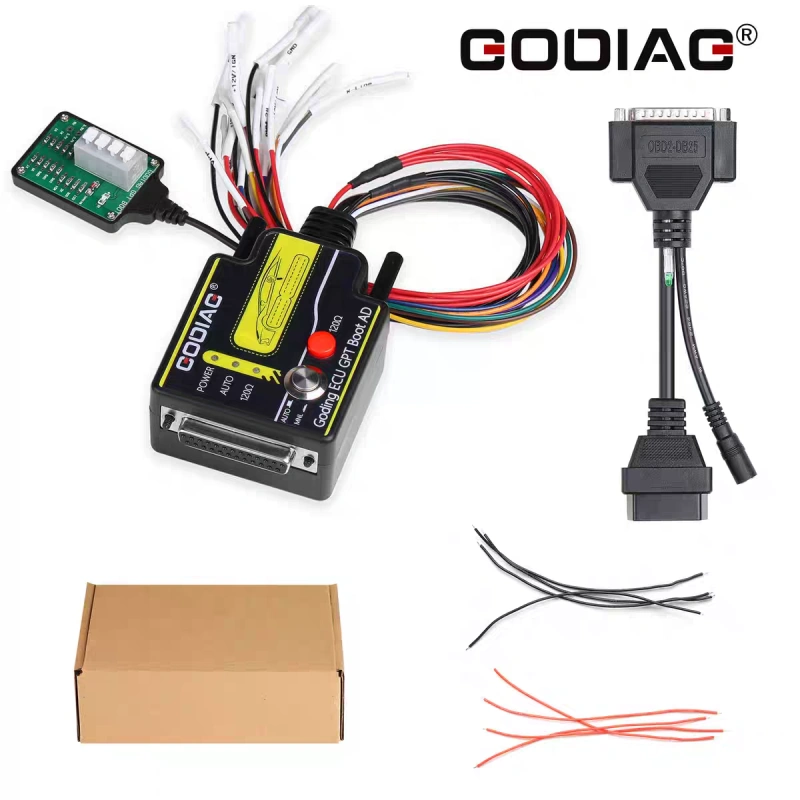

GODIAG ECU GPT Boot AD Programming Adapter for FC200 OBDSTAR DC706 Godiag GT100

$43.00 ~~$49.00~~

Read and write ECU data without disassembling the ECU using the OBD2 Bench or GTP Bench method or disassembling the ECU and using the Boot method.
Equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU, you can use i

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Read and write ECU data without disassembling the ECU using the OBD2 Bench or GTP Bench method or disassembling the ECU and using the Boot method.
Equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU, you can use it with J2534 devices and PCMFLash software.

GODIAG ECU GPT Boot AD Programming Adapter for Foxflash DC706 PCMTuner Openport Godiag GT100

Product Introduction:

GODIAG ECU GPT Boot AD programming adapter can help you read and write ECU data without disassembling the ECU using the OBD2 Bench or GTP Bench method or disassembling the ECU and using the Boot method. This product is equipped with a short-circuit-proof BOOT resistance board connection line to protect the ECU. You can use it with J2534 devices and PCMFLash software.

godiag boot gpt adapter 1

Godiag GPT Cable Features:

1. ECU dedicated connection terminal.

2. Support manual ignition power control

3. The ECU interface cable is labeled

4. Support ECU conversion to OBD2 mode to read and write data

5. Support RESET, BOOT, CNF1, GPT1, GPT2, 5V, 3.3V, VPP, GND.

6. Support PCMFlash automatic control of ignition power supply

7. Support ECU opening BOOT method to read and write data

8. CANbus is equipped with a switch to freely select the 120Ω resistor

9. Support GPT to read and write data without disassembling the ECU.

10. Equipped with BOOT resistance board connecting cable [anti-lost resistor design]

Check ECU OBD2 GPT Boot PINout (contains 4000+ pinouts)

godiag boot gpt adapter 2

Godiag GPT Bench Boot Cable Functions:

The diagnostic function supports standard OBD2 protocol equipment.

Supports ECU reading and writing data, and supports J2534 devices.

Only Scanmatik 2 PRO for PCMflash allows to form GPT1, and GPT2 signals necessary to work with Module 71.

Other devices Scanmatik OpenPort 2.0, Mongoose JLR, MongoosePro JLR,

Teradyne GNA600 (VCM 1), and Mazda VCM 2 support OBD2 or BOOT 53 mode to read and write ECU data.

godiag boot gpt adapter 3

Connection Method of GODIAG ECU GPT Boot AD programming adapter, J2534 device, and PCMFlash dongle software.

J2534 device	Connection method	PCMFlash dongle software	Advantages
			easy, convenient and save money
			Convenient to observe communication status, current and voltage, and other working status

Connection example with OBDSTAR DC706

You can clone many ECMs with DC706 and godiag GPT adapter.

For example 8GMW works when connected with Godiag, or thru the pins on P004. You can use the godiag breakout harness instead of p004, it is much easier this way. It also has the 120ohm built in.

You can also use the GPT adapter with Xhorse Multi Prog to read engine ECUs, i.e ME17.8.8, MED17.5. To use this adapter with Multi prog, you also need a G-V ECU converter.

read ME17.8.8 with Xhorse MULTI PROG & GODIAG ECU GPT

read ME17.8.8 with Xhorse MULTI PROG & GODIAG ECU GPT

read ME17.5 with Xhorse MULTI PROG & GODIAG ECU GPT

Product Comparison:

Items
GPT	√	√	√	√
BOOT	√	√	√	√
CNF1	√	X	X	X
Compatible with J2534 devices	√	√	X	X
BOOT resistance board	√	X	X	X
Dedicated ECU terminal	√	X	X	X
Power ignition manual /automatic switch	√	√	X	X
CANbus freely select the 120Ω	√	Fixed 120Ω	X	Fixed 120Ω
5V 3.3V GND CNF1	√	X	X	X
