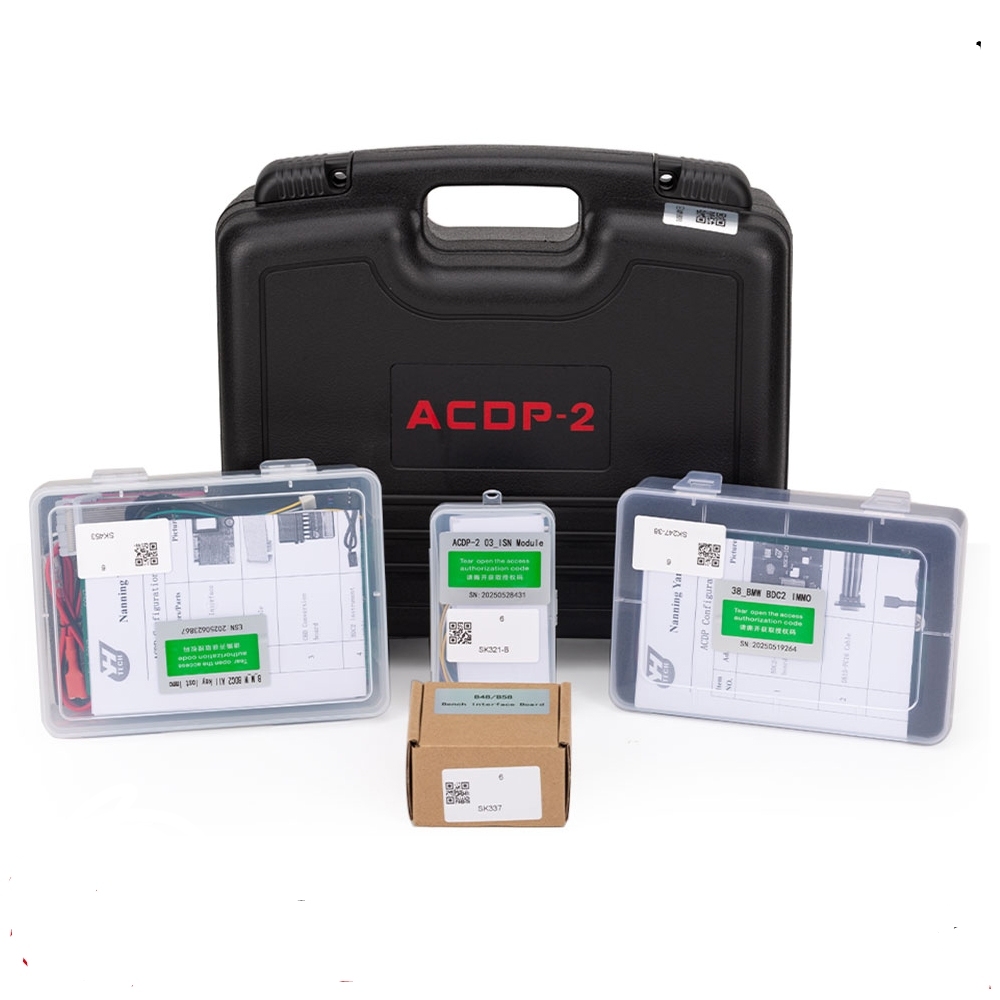

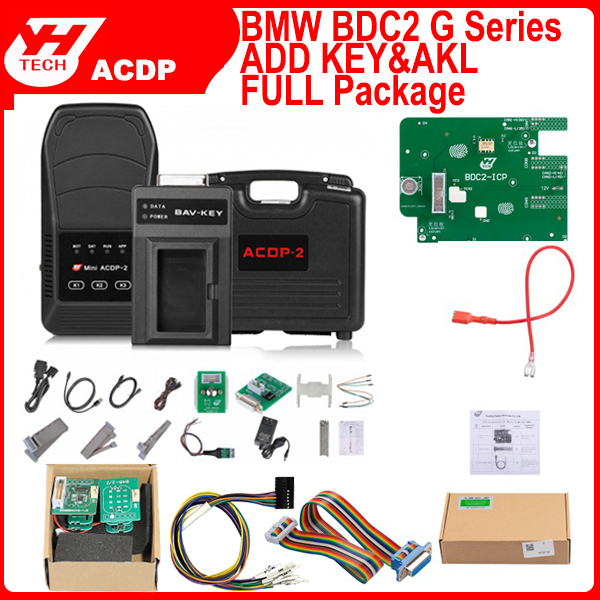

Package Includes:
1. ACDP-2 Master
2. ACDP module 38
3. BMW BDC2 Key Learning Bench Platform with AKL License A504
4,Module33
5,Module34
Notice:
1. Above items are for BMW G-Chassis BDC2 key adding and all key lost programming. For ACDP old user, you just need buy the one which you do not have, for new user, need buy all of them.

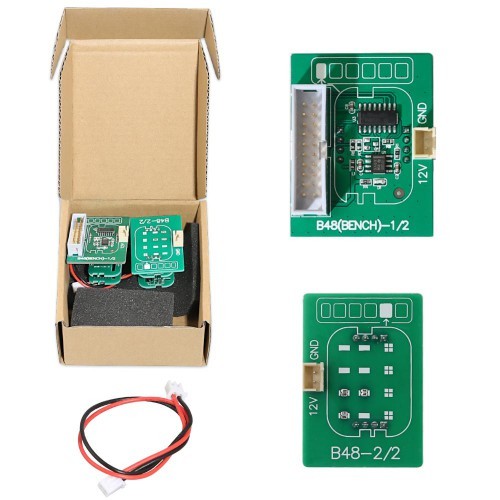

2. If you have other device which can read and write BMW DME ISN, you do not need the ACDP Module 3+B48 Interface Board)

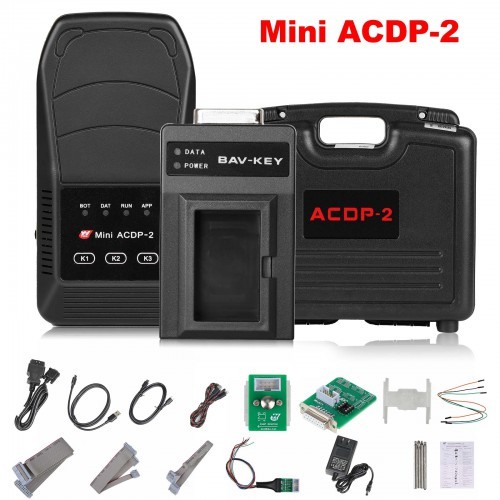

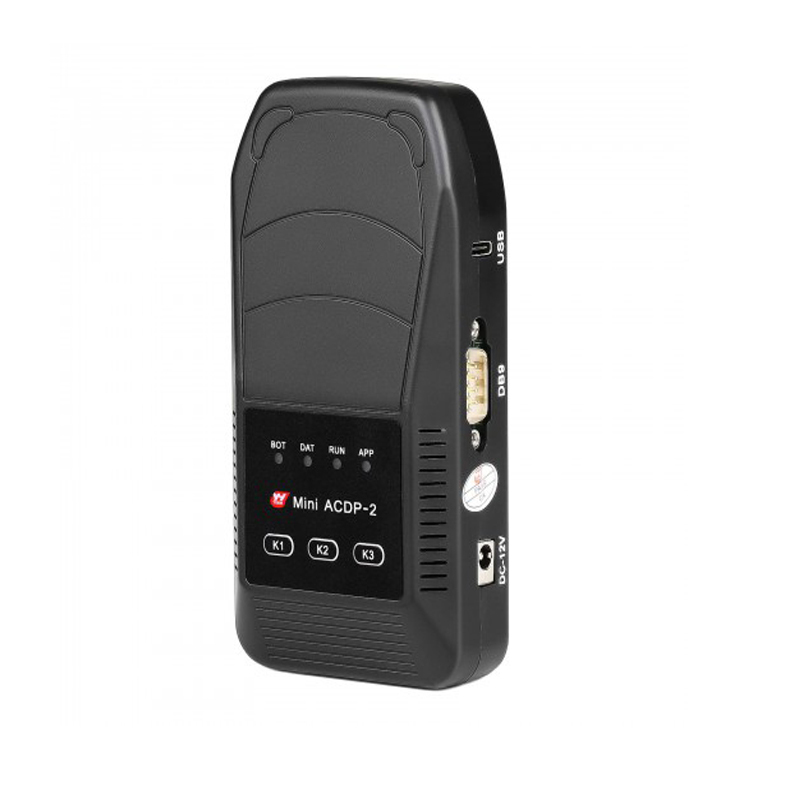

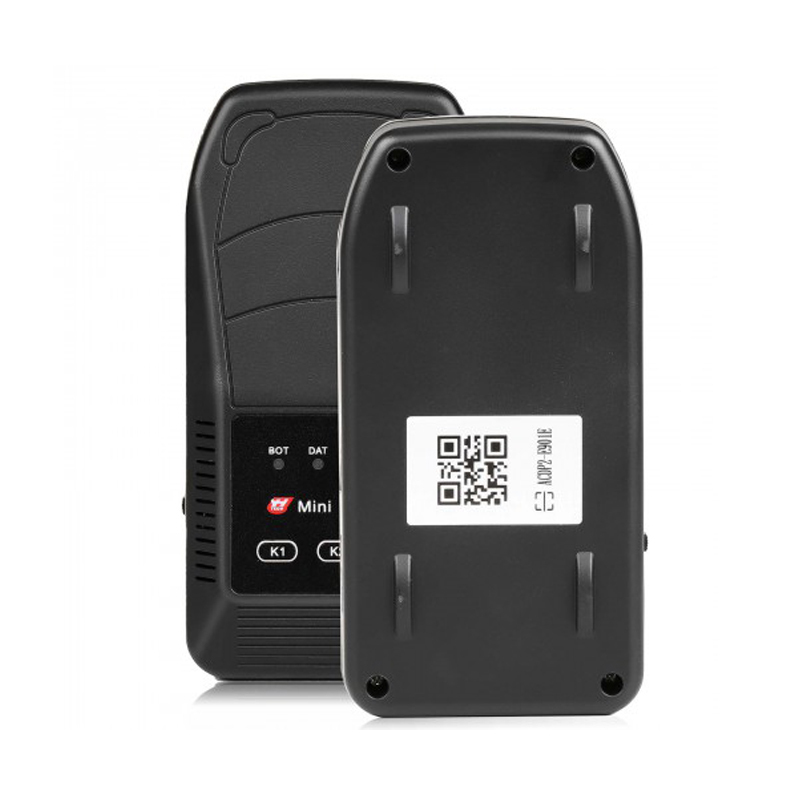

Mini ACDP-2 Advantages:
1. No need removing chip, No need soldering, No need cutting line, No needlifting the pin.
2. USB direct connection, plug and play. wifi connection, wireless free.
3. Pin intelligent detection, Data reading and writing is safe and reliable.
ACDP-2 Basic Module Features:
Yanhua Mini ACDP-2 supports 93/24/25/35/95 Series EEPROM in circuitprogramming(ICP) and on adapter board programming(OBP).
This module is a necessary basic configuration for other modules.
Extended Functions:
By expanding more adapters to achieve various functionsauch as ECU programming key programming/matching, ECU refresh.
The current adapters include: BMW CAS, BMW FEM/BDC, BMW DME, Meter/Instrument, BMW Key refresh, BMW FRM(Footwell), BMW EGS(Gearbox), Fujitsu CPU, VW MQB, Jaguar Land/Rover KVM, Porsche BCM, Volvo, etc.
ACDP BMW BDC2 IMMO Module 38 Function:
Supports adding key for all versions of BMW BDC2.
Enable keys, disable keys, reset starter motor, headlight height match
BMW BDC2 all key lost(need to work together with BMW BDC2 Key Learning Bench Platform with AKL License A504)
BMW BDC2 Module Refresh
BMW BDC2 Module Copy Replacement
Supports original key and aftermarket key.
Both 315Mhz (US) and 433MHz (EU).
Just need to insert the interface board to the BDC2 module directly.
No annual fees or per-use charges—one-time solution with zero hidden costs.
Notice: it does not support BMW G Series mileage correction currently
BMW BDC2 Key Learning Test Platform With all key lost license :
All‑Key‑Lost License Update: Includes free software license updates for BMW BDC2 key learning (Module 38).
Module‑Free Bench Learning: Program new keys on the bench without reinstalling the BDC2 module in the vehicle.
Emergency Function Testing: Enables ignition-on and emergency start testing to verify successful key learning.
Remote & Keyless Testing: Supports connection to smart antennas, IR boxes, and keyless systems for remote-only validation.
Cluster & DME Integration: Expandable to test integration with instrument cluster and engine control units (DME).
Plug‑and‑Play Interface Board: Dedicated board replaces cable harnesses—efficient, safe, and straightforward.
Fully Compatible: Works with any ACDP-enabled device that supports Module 38.
Yanhua Mini ACDP Module 33 for MQB48 Key Programming Mileage Correction with License A608
Whole set compact size 13 solder-free interface board with License for MQB48.
Module 33 work with both Mini ACDP and ACDP-2. ACDP hardware is not included.
Module function:
Supports VW the 4th/4.5th generation and MQB 5A etc. IMMO and mileage correction
Add keys and All key lost for Volkswagen MQB48 (AKL need to get Synchronous data from third party)
Module 33 Support the following chip module instrument cluster
3524, 3525, 3526, 3529, 3532, 3533, 3536, 3537, and 8pin chip 95320
Module features:
1: Using a quasi-blind plug-in interface board, no need to cut line, no need tolift pins, and data can be read and written without welding nor damage.
2: The third generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurateand firm.
3: The software comes with pin detection function, making data reading andwriting safer and more reliable.
There are two kinds of interface boards:
- Lock Fastening Interface board
- Thumb Screw-Fastened Interface board
Module Support:
MQB-74 interface board Supports type:
D70F3524 (A2C00889000)
D70F3525 (A2C81589600)
D70F3526 (A2C81589700)
MQB-75 interface board
D70F3525 (A2C81589600)
F70F3526 (A2C81589700)
MQB-77 interface board
D70F3525 (A2C81589600)
MQB-78 interface board
D70F3525 (A2C81589600)
MQB-79 interface board
D70F3526 (A2C81589700)
MQB-80 interface board
D70F3526 (A2C81589700)
MQB-82 interface board
D70F3529
MQB-81 interface board
D70F3525 (A2C81589600)
D70F3526 (A2C81589700)
MQB-83 interface board
D70F3532 (A2C81589500)
MQB-84 interface board
D70F3532 (A2C81589500)
MQB-85 interface board
D70F3537 (A2C81589800)
MQB-86 interface board
D70F3535 (A2C81589200)
D70F3537 (A2C81589800)
D70F3536
MQB-87 interface board
D70F3524 (A2C00889000)
Yanhua ACDP Module 34 for VW MQB RH850 IMMO Add Keys & All Key Lost & Milage Correction with License A609 It can work both ACDP-1 and ACDP-2 Master
VW MQB RH850 IMMO Module Function:
1: Support IMMO and mileage correction for the 4th generation instrument with D70F3423+95320 chip model.
2: Supports IMMO and mileage correction for D70F3426+95128 chip model MQB 5A instrument.
3: Supports IMMO and mileage correction for RH850 series R7F701401, R7F701402, R7F701407 chip model 5A instruments.
4: Support mileage correction for RH850 series R7F701401, R7F701402, R7F701404, R7F701406, R7F701407 chip model 5C instrument.
5: For 2019-2022 VW Polo/VW Virtue, need buy R7F701402-B Interface Board extra
6: For VW MQB 5D, Golf 8, Teramont, Viloran, Tavendor, Lamando, Tiguan L…mileage correction, need buy R7F701401/21-5D Interface Board extra Module
features:
1: Using a quasi-blind plug-in interface board, No soldering, No need to pry up the chip pins, No capacitor removal, No soldering required to read and write data without damage.
2: The third generation PCB interface board locking technology independently developed by YanHua Tech makes the interface board locking more accurate and firm.
3: The software comes with pin detection function, making data reading and writing safer and more reliable.
Supported odometer number(not limited to): R71F701401/R7F⁷01402/R7F7014075A: 83A920700B, 83A920700, 8V0920740B, 81A920740L, 51G920640D, 55G920790, 2GD920790A, 5GD920790, 5NG920640C, 5NG920650C, 5ND920650C, 5NG920654, 2GG920640, 3GB920640, 3GB920790, 56G920790, 3VD920740B R7F701401/R7F701402/R7F701404/R7F701405/R7F701406/R7F7014075C: 3GB920640A, 3GB920640B, 3GB920640C, 3GD920640D, 19G920640B, 19G920640C, 19D920640B, 19D920640C, 17G920640A, 2GD920640B, 2GD920640C, 5GD920640D, 5ED920860C, 19G920650B, 19G920650C, 55G920650A, 55G920650B, 55G920650C, 5HG920340, 5HG920340A, 5HG920340B, 5HG920340C, 5NG920640D, 5NG920650D, 2GG920640A, 51G920640E D70F3423 +95320: 31G920850B, 18G920860B, 31G920850A, 18G920860A, 31G920850F, 34D920850C, 31G920850C, 34D920850E, 31G920860A, 34D920850G D70F3426+95128: 5GG920640, 5GG920860,
