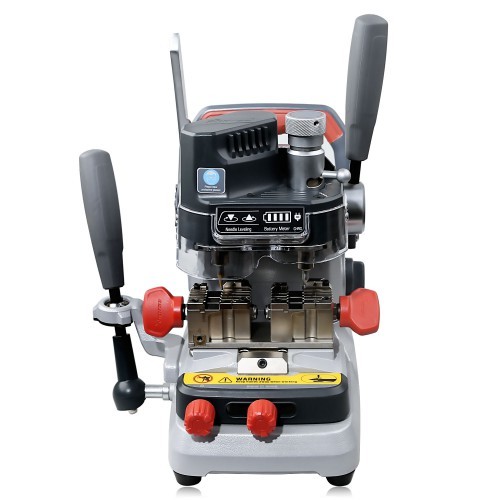

Xhorse Condor DOLPHIN XP-007 Manually Key Cutting Machine
Smaller and lighter and much cheaper than XC-002. Dolphin XP-007 is about 15KG, XC-002 28KG.
3-in-1 machine for cutting flat keys for bikes/car, cutting laser keys, cutting dimple keys
Note:
1. Only cutter of Condor XC-002 accessory be compatible with Dolphin XP-007. Others are Not.
2. Dolphin XP-007 get the benefit of the Key Tool Plus to get one token free everyday, VVDI MB Tool can not.
What is advantage of Dolphin XP-007?
Electronic Calibration Sensor
Battery power indicator
Can carry anywhere for work
More powerful function.
With Built-in Lithium Battery. (Optimized lithium battery of well-known brand, stable and reliable, support cutting under no power conditions.)
Free Download Condor Dolphin XP007 User Manual
Xhorse Dolphin XP007 Workable Car Key Type:
|
Key Type
|
Schema
|
Clamp Side
|
Illustration
|
|
2 Track External
|
|
A/B
|
1.The key type available
for side A and D are the
same,please make the
selection according to
the cutting depth
2.When cutting dimple
key,please use the
specific cutter.
|
|
|
A/C
|
|
4 Track External
|
|
A/D
|
|
|
A/D
|
|
Channel Track
|
|
A/D
|
|
|
A/B
|
|
|
A/C
|
|
4 Track Internal
|
|
A/D
|
|
Dimple
|
|
A/D
|
Dolphin XP-007 and Condor XC-002 Comparsion
Condor Dolphin XP-007 and Condor XC-002 Comparsion
Multi-function Clamp
Standard equipped multi-function clamp, support Sided, Track & Dimple keys
Precision Cutting
With micro-adjust probe, Spring preloading type fine-tuning structure, ensure cutting accuracy;With this structure it can position the original key in advance, in case the spring vibrating caused cutting error, good for accuracy.
High Efficiency Cutting
120W DC brushless motor, designed 2 switches for adjustment speed, high efficiency cutting, support multiple materials of the key blank.
Built-in Lithium Battery
Optimized lithium battery of well-known brand, stable and reliable, support cutting under no power conditions.
Technical service
One year warranty, free technical support, online service to provide remote control support.
Xhorse Condor DOLPHIN XP007 Specifications:
Charging Voltage: 12-18V
Battery Capacity: 64.75Wh
Consumption: 120W
Main motor speed: Highest:13000 RPM switch 1：7000 RPM switch 2：10000 RPM
Rated Torque: Switch 1:0.12 N.M Switch 2:0.16 N.M
Travel of Spindle: 25mm
Table Travel: Transverse 36mm Portrait 48mm
Working temperature: 0-50℃
Working Humidity: 0-90%
Net Weight: 11.5Kg
Gross Weight: 14Kg
Machine Dimension: 282*246.5*355mm
Package Dimension: 365*325*350,mm
