LONSDOR K518S KEY PROGRAMMER
Description：
Lonsdor K518S with Android OS, fast online upgrade. K518S--New Choice, cheap price for basic requirement, make your start as locksmith easier! No Tokens Limitation Supports All Makes and Odometer Adjustment Function.
Lonsdor K518S is the basic version of Londor K518ISE with lifetime free update and no token limitation. Lonsdor K518S is an universal key programmer for all makes from Europe, America, Asia and China, also it can perform odometer adjustment for some makes. Its nice features are built-in for Volkswagen 4th 5th adapter & RFID transponder reader / writer, program for Toyota/for Lexus smart key all key lost via OBD and free BMW FEM key programming (for all keys lost, enter 32-bit ISN code). Lonsdor K518ISE is specialized on for Volvo, for Maserati, for Ferrari, for Lamborghini, for Bentley, for Nissan etc.
It is tailored and perfect for vehicle locksmith, to help making their work easier, faster and more powerful.
Lonsdor K518S Key Programmer Technical Parameter:
RFID: Support 125KHz ASK,134.2KHz FSK
CPU: ARM Cortex-A7 Quad-core Processor Speed 1.34GHz
Display: 1024*600,7 inch IPS capacitive
Memory: eMMC 8G RAM 1G
Battery Capacity: 3800 mAh
Power Supply: DC12V 1A
Power port: 5.5x2.1mm
OBD Port: OBD-II
Comm Port: USB 2.0-type B
OBDII Protocols: ISO15765,ISO9141,ISO14230,SAEJ1850,VW TP1.6 TP2.0 etc
KPROG: Support programming MCU and EEPROM on ECU circuit board.
WIFI Communication Distance: 10m
Lonsdor K518IS Latest Update Policy:
What are the advantages of Lonsdor K518S Key Programmer ?
1.Immobilization Key Programming
2.Odometer adjustment
3.Built-in for Volkswagen 4th & 5th adapter
4. Built-in Chip & remote detection module.
5. Free for BMW FEM key programming
6.No Need Token for all cars
Functions & Features:
Immobilization
Odometer adjustment
Built-in for Volkswagen 4th 5th adapter
Built-in Chip & remote detection module.
Free for BMW FEM key programming
Program for Toyota/for Lexus smart key all key lost via OBD
Highlights:
1.The best car diagnostic tool based on Android
2.WIFI networking ensures software upgrading more convenient
3.No need to plug memory card,or connect the computer with data cable,more flexible in online upgrading,updating and activating.
4.With USB-B2.0 standard connector,OBD-II test cable integrated with the diagnostic connector function of the adapter.
5.Diagnostic speed greatly accelerated,work efficiency improved,better time saving.
6.7 inches high brightness,high definition color IPS capacitive screen
7.3800mAh prolymer battery
8.Support external memory expansion,better within 32G
9.Built-in professional,poerful operation assistant system
Lonsdor K518S Key programmer Special Features:
For Volvo (S40, S60, S80, XC60, XC90, C30, C70, V40, V60, V70) key programming.
For Toyota/For Lexus: smart key all key lost - via OBD ( without dismantle)
For BMW CAS3/CAS3+/CAS3++: direct OBD programming
For BMW CAS4/CAS4+: dismantle & read data programming
For BMW FEM system key programming & All keys lost
2016 -New For Maserati: smart key programming
2016 -New For Ford: smart key programming
For Hyundai / For Kia 46/47/8A smart key: PIN code reading via OBD, all key lost included.
For Renault ( Megane, Koleos, Scenic) without PIN code key programming
VAG group 4th & 5th immobilizer system
For Ferrari (458, F12, F149): direct OBD programming
For Peugeot /For Citroen: two ways to read PIN code & programming, all keys lost included.
Supported Car List:
Europe:
for Audi, for BMW, for Benz, for VW, for Volvo, for Citroen, for Ferrari, for Maserati, for Fiat, for Lamborghini, for Jaguar, for MG,for Land Rover, for Bentley, for Lancia, for Opel, for Peugeot, for Porsche, for DS, for Renault, for Alfa Romeo, for Smart,for Borgward
America:
for Cadillac, for Chevrolet, for Dodge, for GMC, for Buick, for Hummer, for Ford, for JEEP, for Lincoln, for Mercury
Asia:
for Honda, for Hyundai, for Isuzu,for KIA, for Lexus,for Mazda, for Mitsubishi, for Nissan, for Ssangyong, for Subaru, for Suzuki,for Toyota, for Shigaoka Queen
China:
for Iveco, for Trumpchi, for BYD, for Geely, for Chery, for Great Wall, for Young Lotus (Basically all Chinese car
models are included)
Odometer Adjustment Car List:
for VW, for Porsche, for Ford, for Jaguar, for Land Rover, for Mazda, for Audi, for Renault, for Hummer, for Hyundai, for Kia... More high-end cars will be updated very soon.
Lonsdor K518IS Basic Partial Vehicle List:
For SSANG YONG:
Actyon,Chairman,Korando,Kyron,Musso,Rexton,Stavic,Rodius,Rexton2,Rexton3...
For Citroen:
C4,Triomphe,C5,Quatre,C4L,C3-XR,C1,C2,C3,C8,Dispatch,Jumpy,Nemo,Picasso,Relay,Relay2,Synergie...
For Ford:
New Mondeo,Mondeo,Escort,Edge,Explorer,Mustang,Escape,Raptor F350,Transit,Focus,Kuga,Ecosport Fiesta
For Peugeot:
207,207CC,208,2008,301,307,308S,4007,406,408,508,607,807,1007,Partner,Exper...
For Land Rover:
Range Rvoer,Freelander2,Freelander,Discovery4,Evoque,Defender,Discovery3,New Land Rover 2015-
For Mazda:
Axela,Atenza,CX-5,M6,M3,M2,M5,M8,CX-7,CX-3,CX-4,CX-9,BT50,New CX-7,Demin,MX-5,M121...
For Nissan:
Teana,Cima,JX35,QX60,Q50,X-Trail,Qashqai,New Sunny,350-Z,New X-Trail...
For Suzuki:
Vitara,Alto,SX4,Alivio,Liana,S-Cross,Jimny,Swift,Kiazshi...
For Hyundai:
IX35,Sonata,Tucson,Mistra,Elantra,I30,Verna,Elantra,IX25,Mistra,ATOZ,Getz,Accent,Matrix...

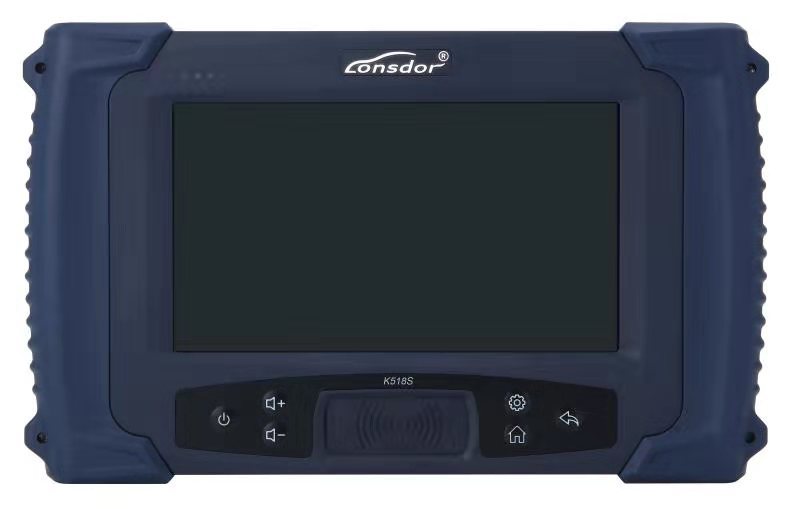

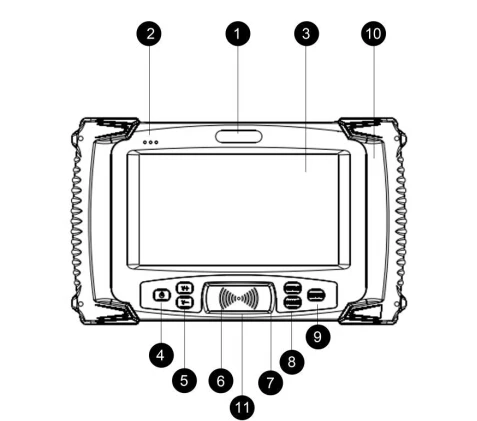

Lonsdor K518S Key Programmer Main Unit Appearance:
1. Trademark: Lonsdor
2. Three-color indicator in turn will be: red - external power supply; blue - system power; yellow - communication status
3. Capacitive touch screen: display and touch operation function.
4. Switch: press and hold for 3s to start. When in start state, press and hold for 3s to restart or shutdown, for 10s to force to restart.
5. Volume: adjust volume size
6. Key frequency & chip recognition system: place the key on the surface to detect frequency, push the slot shell to the right and put the key inside to detect chip
7. Setting: enter to set
8. Home: home page interface
9. Return: back to previous step
10. Built-in antenna: antenna inside
11. Model: K518S
K518S Top View:
KPROG Adapter Appearance:
KPROG Adapter Front View:
1.Trademarks
2.Three-color indicator: Red:power light Blue:data light Yellow:comm status light
3.Simple horn seat:to connect with 20pin cable
KPROG Adapter UP View：
Power socket
DB15 port
USB port
Functional accessories:
RN-01 board:read & write CEM data
E-01 board:read & write EEPROM data
FS-01 board:read & write KVM data
20P cable:connect adapter with function accessories
*The 3 extra connector s are for Honda(3-pin),Hyundai/Kia(10-pin) And Kia(20 pin) respectively.
For Toyota Smart Key all lost for Lamborghini for Porsche for BMW & for LandRover for Ferrari Models covered + a whole lot of Chinese made vehicles GreatWall Haval Borgward MG Beiqi Foton as well.
Lonsdor K518S Key Programmer Connection Diagram:

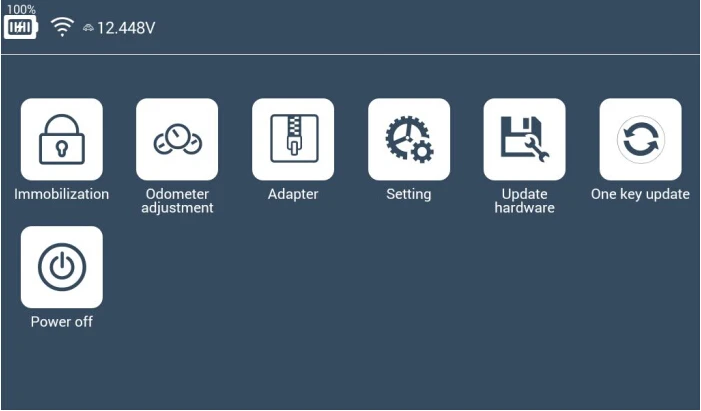

Lonsdor K518S Main interface:

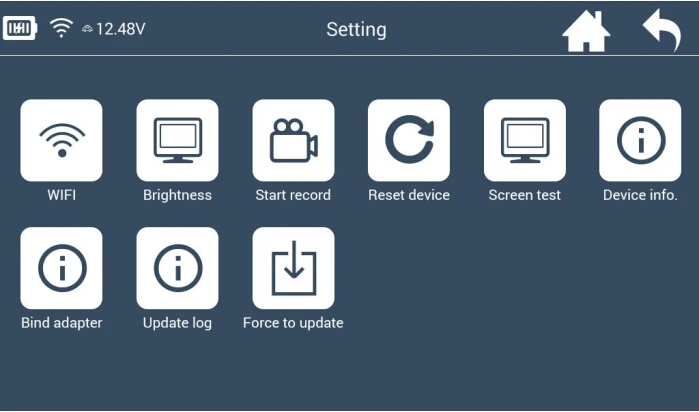

Lonsdor K518S Setting interface:
How to Use Lonsdor K518S?
Here I take the for Toyota/for Lexus smart key all key lost as example.
1) Binding
1.Go to the “Bind emulator key” function;
2.Turn on emulator key and put it into K518ISE key slot (put the status indicator down, make sure the key is active);
3.Following the system direction and click “OK” to start binding;
4.After binding completed, the system will indicate “Binding successful”.
Note: The KPROG adapter is specialized for part of for Volvo car series and the new for Maserati for the time being, we are still developing some more car models that the adaptor can support in the near future, such as for Jeep Grand Cherokee, please refer to our website or directly go to the”One key update” for latest news.
2) Backup EEPROM data
Connect K518ISE with car OBD port, enter into “Backup immodata” to back up the data.
3) Make emergency emulator key
After choosing the immo data, in a network environment, the system will indicate to choose the corresponding SKE emulator key model, please start the key and put it into K518ISE key slot(make sure the key is activate), follow the instruction to make an emulator key.
4) Add smart key
Click the car start button, put the generated SKE emulator key close to the start button, with induction the car will automatically activated.
The system will read current key count, then follow the instruction to add key.
Precaution
1.”Bind emulator key” can identify the SKE emulator key binding state;
2.SKE emulator key need to bind K518ISE host and can bind only for one time;
3.When making emulator key, make sure well net connection and to choose the corresponding SKE emulator key model correctly.

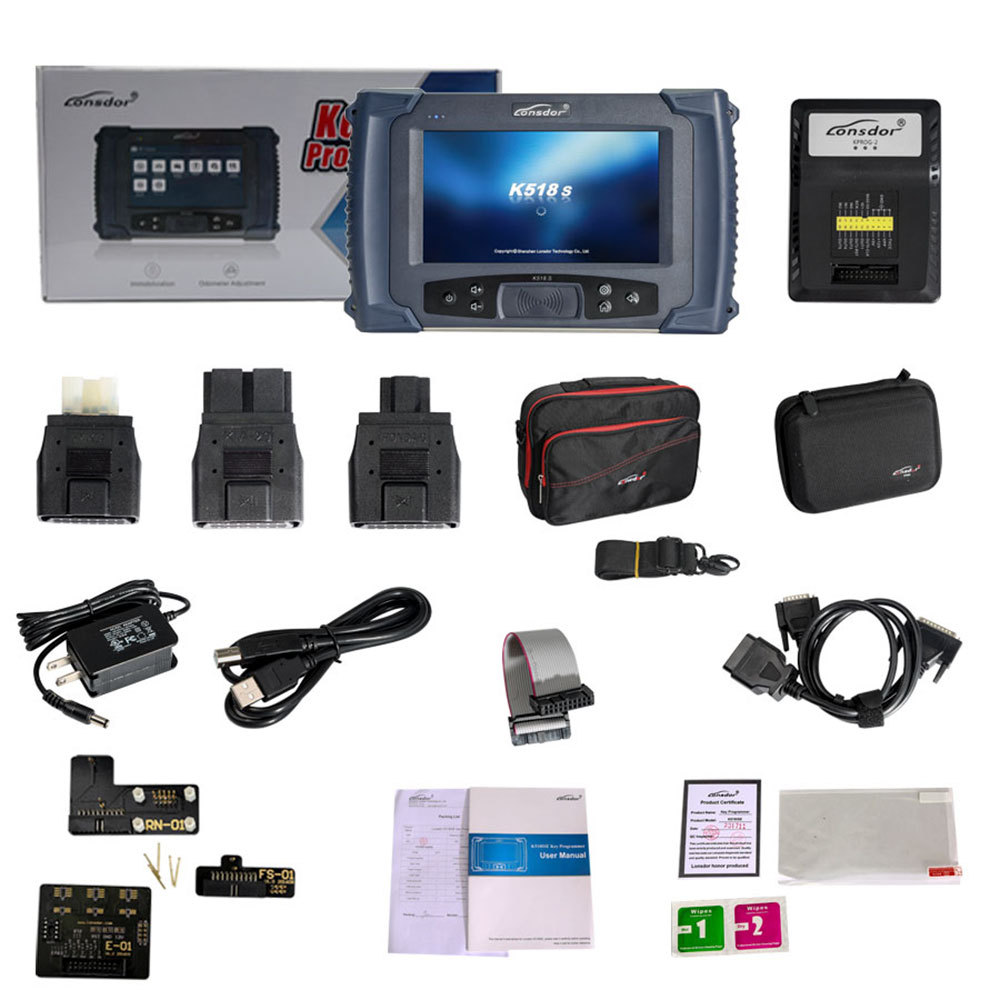

Package List:

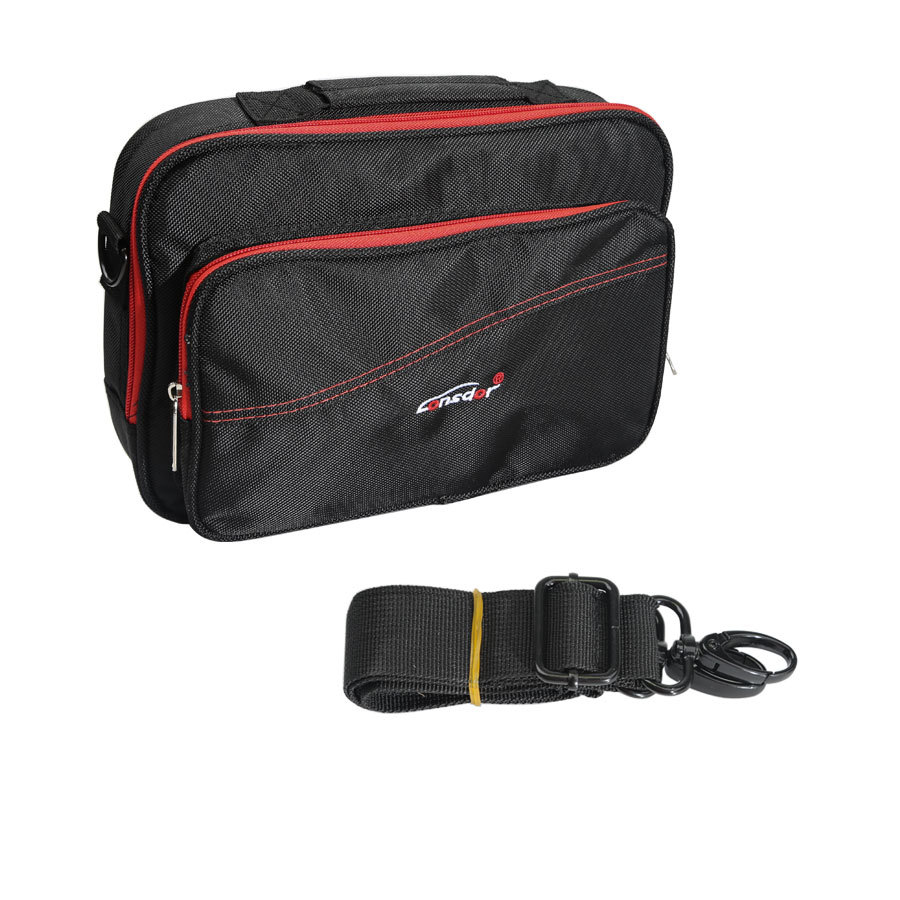

1 x Portable Bag(big)
1 x Main Host
1 x Power Adaptor
1 x USB Cable
1 x Packing Bundle
1 x OBD Test Cable
3 x Extra Connector
1 x Londor K518 S User Manual
1 x Portable Bag(small)
1 x KPROG Adapter
1 x RN-01 Board
1 x E-01 Board
1 x FS-01 Board
1 x 20P Cable
5 x Backup Pin
1 x Certificate
ITEM 2:SKE-LT Smart Key Emulator 4 in 1
Description：
K518IS key programmer works with the smart key emulator .
Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.
Green: SKE-LT-DST80(98)-Supports 98 smart key.
Blue: SKE-LT-8A(A9)-Supports A9 smart key.
Black: SKE-LT-DST40(94/D4)
SKE-LT Introduction:
Product name: SKE-LT Smart Key Emulator
Battery standard: CR2032=3V(Please install battery)
SKE-LT Smart Key Emulator Functions:
Bind emulator key: first use, it is required to bind SKE-LT emulator to K518ISE main unit;
Backup EEPROM data: backup on board computer immo data;
Make emergency emulator key: with the backup immo data to make the designated SKE emulator key to the key that can replace the original master key. Such key can be used to turn on the ignition, then add smart key can be proceed;
Add smart key: to add a smart key.
Delete smart key: to delete a programmed key.
Lonsdor K518ISE can program Toyota/Lexus smart key all key lost via OBD by working together with extra SKE-LT Smart Key Emulator
SKE-LT: Smart Key emulator - for Toyota/for Lexus smart key for all key lost via OBD.
Black: SKE-LT-DST40(94/D4) -Supports 94/D4 smart key.
Red: SKE-LT-8A(88/A8)-Support 88/A8 smart key.
Green: SKE-LT-DST80(98)-Supports 98 smart key.
Blue: SKE-LT-8A(A9)-Supports A9 smart key.
1. Press and hold the power button for 2 sec to turn on/off; In start status, when standby for 2 min, the key will automatically shut down; After switching 3 times, the key will be initialized, and can be recycled again.
2. Status indicator: Blue-normal; Red-hardware failure;
3. After receiving the product, please open the back cover of each emulator and install battery first before using it.
Steps to install battery:
Bind emulator key: first use, it is required to bind SKE-LT emulator to K518ISE main unit;
Backup EEPROM data: backup on board computer immodata;
Make emergency emulator key: with the backup immodata to make the designated SKE emulator key to the key that can replace the original master key. Such key can be used to turn on the ignition, then add smart key can be proceed;
Add smart key: to add a smart key.
Delete smart key: to delete a programmed key.
How to Operate the SKE-LT Smart Key Emulator on All Key Lost Situation:
1) Binding
1. Go to the “Bind emulator key” function;
2. Turn on emulator key and put it into K518ISE key slot (put the status indicator down, make sure the key is active);
3. Following the system direction and click “OK” to start binding;
4. After binding completed, the system will indicate”Binding successful”.
2) Backup EEPROM data
Connect K518ISE with car OBD port, enter into "Backup immodata" to back up the data.
3) Make emergency emulator key
After choosing the immodata, in a network environment, the system will indicate to choose the corresponding SKE emulator key model, please start the key and put it into K518ISE key slot(make sure the key is activate), follow the instruction to make an emulator key.
4) Add smart key
Click the car start button, put the generated SKE emulator key close to the start button, with induction the car will automatically activated.
The system will read current key count, then follow the instruction to add key.
Precaution:
1.“Bind emulator key”can identify the SKE emulator key binding state;
2. SKE emulator key need to bind K518ISE host and can bind only for one time;
3. When making emulator key, make sure well net connection and to choose the corresponding SKE emulator key model correctly.
Package Includes:
1pc x Black: SKE-LT-DST40(94/D4)
1pc x Red: SKE-LT-8A(88/A8)
1pc x Blue: SKE-LT-8A(A9)
1pc x Green: SKE-LT-DST80(98)
ITEM 3:SKE-LT-DSTAES The 5th Emulator Orange
Description：
Lonsdor Orange SKE-LT-DSTAES The 5th Emulator for Toyota & for Lexus Chip 39 (128bit) Smart Key All Lost via OBD.
Introduction of the 5th Emulator:
Orange SKE-LT-DSTAES Chip 39 (128bit) for Toyota 39 chip smart key all keys lost by OBD
Feature:
1. All key lost Support
2. Don't need to connect internet
3. Support Offline Calculation
Orange smart key emulator for chip 39 (128bit) test car models:
for Hilux...OK
for Fortuner ... OK
for YARIS... OK
No need connection from the server
Packing List:
1pc X Lonsdor K518SE Orange SKE-LT-DSTAES 128bit for Toyota Smart Key Emulator
ITEM 4:LKE Blue Smart Key Emulator 5 IN 1
Description：
LKE is a car smart key emulator newly released by Shenzhen Lonsdor Technology co.,ltd, as an ancillary product for K518 device. It supports functions such as collect data(sent from automobile ignition coil) to detect the coil fault and decode car keys; simulate key chip(4D and 46 chip are supported currently, more chip types to be continued). It’s lightweight and convenient, and can match all the vehicle models with 4D or 46 chip by working with K518. Meanwhile, LKE adopts low-power design, and has CR2032 button battery installed externally, which is easy to replace batteries and can avoid damage to casing. It can be upgraded through K518.
Note：
Lonsdor LKE Smart Key Emulator=SKE-LT Smart Key Emulator 4pcs+ SKE-LT-DSTAES 128 Bit Smart Key Emulator 1pc
LKE Emulator Key Top Features:
1.Features of for Toyota/for Lexus smart key all lost(5 emulators-in-1):
Dismantle-free
No need networking
Localized computing
2.Generate chip:
LKE can be used to work as an emergency key to program when no dedicated chip.
3.Copy chip:
By collecting data to decode and copy chip, LKE currently supports some 46 and 4D chip copy.
4.Simulate and convert chip:
Use [Generate chip] to make various chips, part of 4D/46 and SKE Toyota currently supported.
5.Decode chip:
Decode 46 and 4D chips to obtain SK.
6.Identify ignition coil and key chip type(all key lost)
7.As K518 helper:
Achieve programming key without PIN for Hyundai and for Kia.
Achieve programming key without PIN for BYD.
Achieve programming key without PIN for Porsche Cayman(2005-2010) and for boxster.

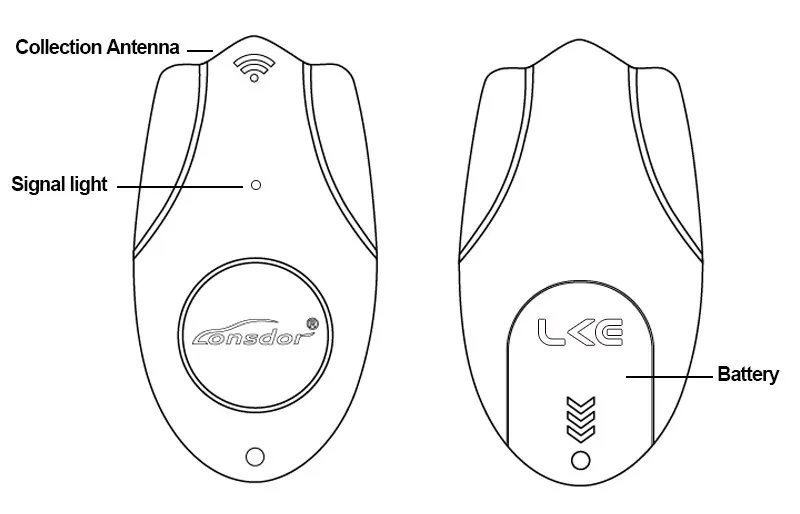

Collection Antenna: place one end of antenna into K518 card slot to operate.
Signal light: State ① start to work. (the light will go on)
State ② collecting...( the light will flash)
State ③ finished. ( the light will go out after 3 secs)
Battery: standard CR2032
Product functions：
(1)Simulate key chip
Boot K518 device, place LKE into K518 card slot, go to "Special function" in the menu interface and choose "Analog chip->Generate analog chip" to generate 46 and 4D chip, then you can generate various car key chip according to demand, for example, 46 chip can be used to generate key chip for vehicle models like for Great wall motor, for Zotye auto, for Geely and etc; 4D chip can be used to generate key chip for Toyota,for Lexus, for Subaru and etc.
(2)Collect data
This function is currently used to collect data to decode chip, and can copy original car chip data after chip is decoded. Boot K518 device, place LKE into the card slot, go to "Special function" in the menu interface and choose "Decode chip", you can decode different types of chip.
(3)Detect ignition coil fault and chip type
Boot K518 device, place LKE into the card slot, go to "Special function" in the menu interface and choose "Ignition coil->Detect ignition coil " to detect whether the coil is normal and identify chip type.
(4)Upgrade functions
Boot K518 device, place LKE into the card slot, in the interface of "Special function", click function icon, the system will notify whether to update, click OK to upgrade online directly.
Instructions for use：
Boot K518 device, click "Special function" icon and choose corresponding functions (such as Identify© chip, Analog chip, Decode chip, Ignition coil) and operate as per system prompts. When it starts to work, signal light will go on; when at work, the light will flash; when finish work, the light will go out after 3 secs.
Specifications：
(1) Device size: 68mmX37mmX11mm
(2) Battery: CR2032
(3) Standby current: 3.5ua
(4) Working current: ≤4ma
