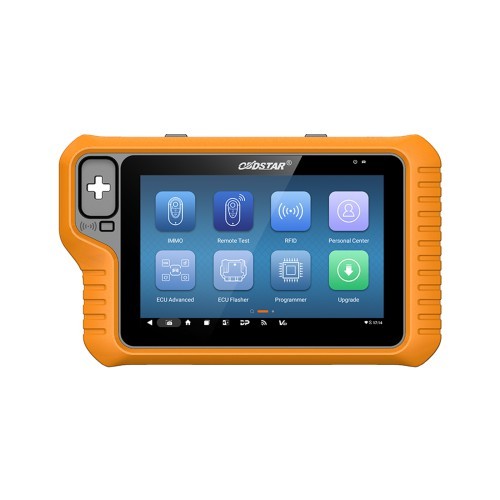

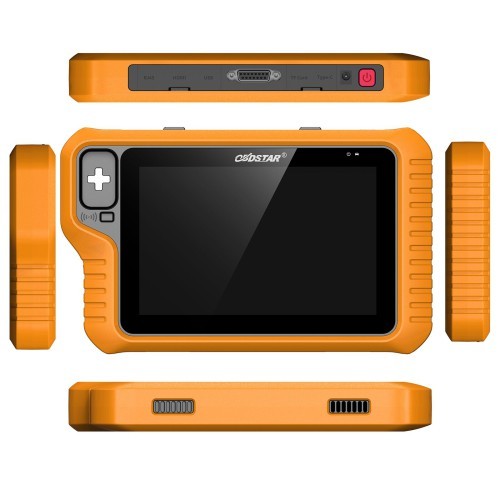

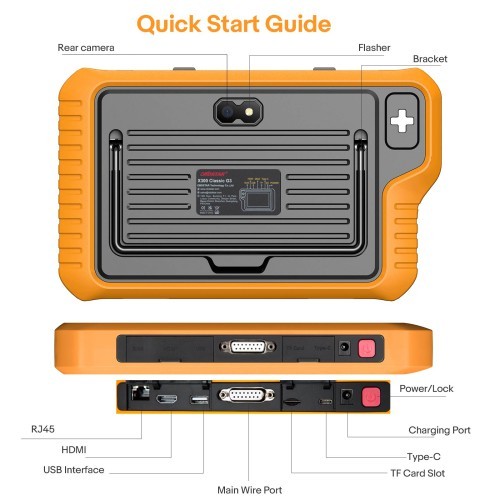

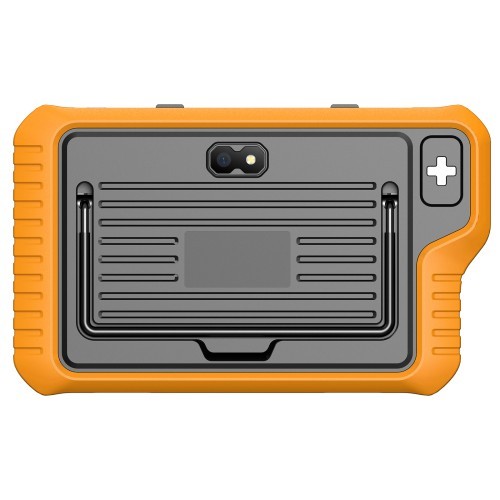

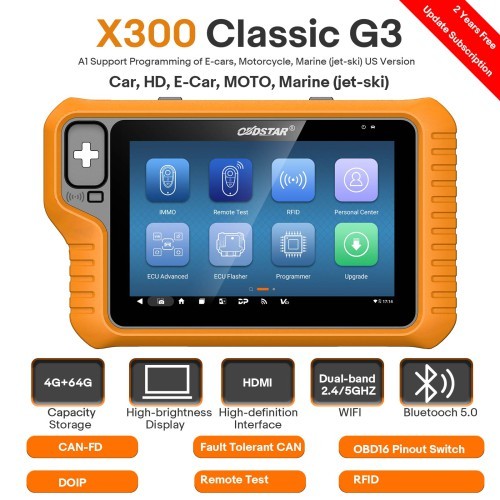

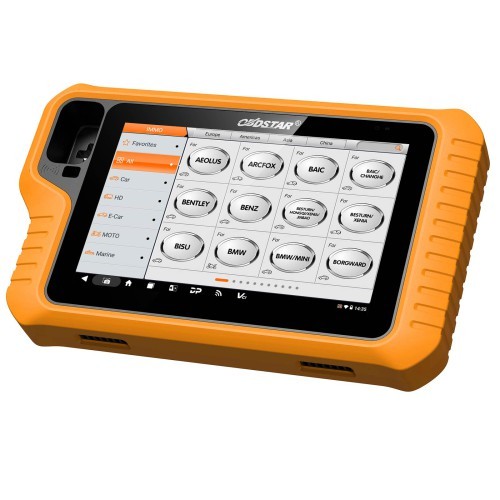

OBDSTAR X300 Classic G3 (KEY MASTER G3) Key Programmer with MP001 and Motorcycle Cable SetOBDSTAR X300 Classic G3 is the new generation intelligent scanner of OBDSTAR, which fully inherits the many advantages of OBDSTAR in automobile/commercial vehicle technology, such as wide coverage of car models and various functions, and comprehensively increases the programming functions of E-car, motorcycle, marine (jet-ski), etc. A good helper for automotive locksmith master.The G3 expands on the features and functionality of the OBDstar X300 DP Plus key programming series and will have the ability to add the functionality of the OBDstar Odomaster mileage correction, P50 airbag reset, MT series test platform and DC706 ECU ECM TCM BCM BSI cloning tool.OBDSTAR X300 Classic G3 User ManualOBDSTAR X300 Classic G3 Vehicle ListHighlights:★ First locksmith tool getting PIN extraction/Cloning for BCMs on Bench!★ Update version of X300 DP Plus★ RK3568 Hexa-Core Processor, 4G+64G Capacity Storage, High-brightness Display, HDMI High-definition Interface, Dual-band 2.4/5GHZ WIFI, Bluetooth 5.0, STM32H723 High Performance VCI Processor.★ Built-in CAN-FD, Fault Tolerant CAN, OBD16 Pinout Switch, DOIP, Remote Test and RFID★ Comes with MP001 (replace P003/P003+ adapter) and P004 adapters in default★ Language: ONLY English★ 2 years free update. Software subscription $249 per year before update expired, after update expired, the update cost is USD249+USD249/12*expired month(6 months at most)★ Paid software activation service for Cluster Calibration, ECU Cloning, Airbag Reset, Test Platform and the other functions are available. Turn device into a all-in-one tool.★ Activate One License with original price, activate two licenses get 5% discount, activate 3 licenses get 5% discount + One Test Platform★ With the HDMI port. Supports screen casting, allowing you to use it for demonstrations and training sessions.★ 2 Free Gifts: Key SIM emulator and Motorcycle cables set (M034, M037, M040, M041, M042, M043, M053, M054)
★ Supports VAG MQB48 5A key programming and AKL sync code calculation (with RH850/V850 kit) [April 2025]Support Functions:✅ Programming IMMO(Keys)✅ IMMO OFF✅ Remote Test✅ R/W EEPROM/MCU✅ R/W Transponder✅ Unlock ECU✅ Make Dealer Keys✅ ECU Advanced✅ Make Start Keys✅ OBDII✅ Renew Key✅ Mileage correction (add-on module)✅ ECU/TCU Cloning (add-on module, newly released checksum correction function)✅ Airbag reset (add-on module)✅ Test platform (add-on module)✅ Benz key programming (add key, AKL) and ECU/TCU/ISM reset/program (Purchase Benz FBS3 kit
Supported Vehicle types
Car, HD, E-Car, MOTO, Marine (jet-ski)
Advanced Functions
1. Support MOTO key progarmming (no need pincode) function for HARLEY, TRIUMPH, DUCATI, KAWASAKI, HONDA, SUZUKI, YAMAHA, BRP, INDIAN, DAYANG, APRILIA, PIAGGIO, VESPA, DERBY, GIRELLA, GUZZI, PEUGEOT, ITAJET and others;
2. Support Marine key progarmming function for BRP, KAWASAKI, YAMAHA and others;
3. Support E-Car key programming function for LI, NETA, LEAPMOTOR, SERES, AITO and others;
4. Support unlock ECU function for ALFA ROMEO, FIAT, CHRYSLER, DODGE, JEEP and others;
5. Support programming solutions for SMART 453 that have lost all keys and all functions have been disabled;
6. Support programming solutions that have lost all keys and all functions have been disabled for RENAULT CITY K-ZE, KWID, SANDERO, TRAFIC, TWINGO, LODGY, DUSTER PH3;
7. Support pincode reading function that have lost all keys (No risk, and will not turn your car into a brick) for Renault post-2015 ESPACE, KADJAR, KOLEOS, MEGAN, SCENIC, TALISMAN and Samsung QM6\SM6 models.
8. Virgin Benz FBS4 DSM/DSM222 on bench
NOTE: Type C connector only used to transfer files, cannot be used to charge battery.
OBDSTAR X300 Classic G3 Vs. X300 DP Plus:
| |
|
X300 DP Plus C |
X300 Classic G3 |
| Hardware |
Operation system |
Android 5.1.1 |
Android 11 |
| OTA |
x |
√ |
| Screen recording |
x |
√ |
| Wireless screen casting |
x |
√ |
| CPU |
qual core ARM cortex A9 1.4GHz |
Quad-core 64-bit Cortex-A55 2.0GHz |
| Battery |
3700mAh |
9000mAh |
| Storage capacity |
1+32GB |
4+64GB |
| LCD |
8.0 inch |
8.0 inch fully laminated sunlight readable screen |
| Camera |
Rear camera 500W pixels |
Rear camera 800W pixels, auto-focus |
| Bluetooth |
Bluetooth 4.2 |
Bluetooth 5.0(Compatible with BT 4.2) |
| External interfaces |
x |
RJ-45√ |
| x |
HDMI√ |
| TYPE-A |
TYPE-A,TYPE-C |
| WiFi |
2.4G |
Dual-band 2.4G/5GHZ |
| VCI |
STM32F105 |
STM32H723 |
| CANFD Adapter Required |
CANFD built in√ |
| x |
DOIP built in√ |
| x |
Low Speed(Fault Tolerant) CAN built in√ |
| x |
RS232、RS485 built in√ |
| All other common protocol types |
All other common protocol types |
| RFID |
P001 Required |
Built in√ |
| Remote Test |
RT100 Required |
Built in√ |
| Renault Converter |
Renault Converter Required |
Built in√ |
| Weight |
About 1kg |
1.5kg (main unit) |
| Dimension |
254mm*174mm*35mm |
270.5mm*165mm*39mm |
| Functions |
Diagnosis |
√ |
x |
| OBDⅡ |
√ |
√ |
| Car IMMO |
√ |
√ |
| MOTO IMMO |
√ |
√ |
| HD IMMO |
√ |
√ |
| Marine IMMO |
x |
√ |
| E-Car IMMO |
x |
√ |
| RFID |
x |
√ |
| Make key |
x |
√ |
| Unlock Smart key |
x |
√ |
| Renew key |
√ |
√ |
| Read/Write EEPROM MCU |
√ |
√ |
| ECU advanced（Includes ECU unlock） |
x |
√ |
| Oil/Service reset |
√ |
√ |
| Other service function |
√ |
x |
| Remote test |
x |
√ |
| ECU flasher IMMO（IMMO OFF、ISN、IMMODATA） |
x |
√ |
| ECU flasher（Clone） |
√
Limited supported models, different with DC706 and G3 |
Paid License |
| Car/Motorcycle cluster recalibration |
√ |
Paid License |
| Airbag reset |
√ |
Paid License |
| Test Platform |
x |
Paid License |
OBDSTAR G3 Recent Update:
- Adds 2019- Renault RH850 and Nissan 2021- RH850 proximity key programming
- Adds BMW Motorcycle 4D Blade and 8A Proximity Key Programming
- Update 2022- Toyota/Lexus 4A/8A proximity key programming, update Ford 2021-2023 proximity key programming (March 2025)
- Update Opel Vivaro 2001-2014 blade, Renault Austral 2023 smart key, Toyota Sequoia 2020-, Jeep Commander 2022-, America Aaargo/Toro/Cronos 2018-2023 smart key programming etc
- Update Audi, Toyota Lexus steering angle sensor repair function
- Honda Accord, Avancier, Elysion, Inspire, U-RV, Vezel 2022-, Nissan Sentra 2022-, Toyota Corolla 2023-, Dacia Duster 2021- AKL
- Adds Volvo ABS module reset and Buick/ Ford/ Cadillac BMS reset
- Add Fiat, Alfa, Maserati, Dodge immo key programming till 2023
- Add BMW AISIN GA8F/GA6F series, VW AQ600, AQ250, AL750, AL1000 etc Gearbox TCUs
- Add PSA hybrid -2023, Eletric -2023 pin code reading with working key
- Add Bentley Lamborghini MLB IMMO function (Add MLB key via OBD)
- Add Greatwall WEY GAOSHAN 2024, WEY TANK 400 2023-, Havel H5 2023 and Havel MENGLONG 2023 proximity programming
- Add Hyundai IONIQ5 Palisade Carnival K5 2023- blade, remote and proximity key programming
- Adds Volvo ABS and ECM learning function
- Adds MG1CS001, EDC16, EDC17 and ME7.x.x ECUs (with ECU license)
- Add Chevrolet Montana 2023, Onix 2020-2023, SPIN 2019-2023, Buick Encore GX 2020-2024, Cadillac CT6 2023, Escalade ESV 2023, XT4 2024, XT4 2020-2023, XT6 2020-2023, Camato 2020-2023, Silverado 2024, Silverado 1500 2024, Silverado 1500 2021-2023, Silverado 2500 2024, Silverado 3500 2024, Trailblazer 2020-2023, Trax 2023-2024, GMC Acadia 2020-203, Canyon 2023,GMC Sierra 2024, Sierra 1500 2024, Sierra 1500 2020-2023, Sierra 2500 2024, Sierra 3500 2024, Yukon XL 2022-2023 proximity key programming
- Adds Lexus NX 2022-, RX 2023- add proximity key free pin code
- Adds Volvo S60, S90, V60, V90, XC40, XC60, XC90 2022- proximity key programming
- Adds Ford F250, F350, ECOSPORT proximity key programming till 2022 and many other Ford smart key/blade key programming

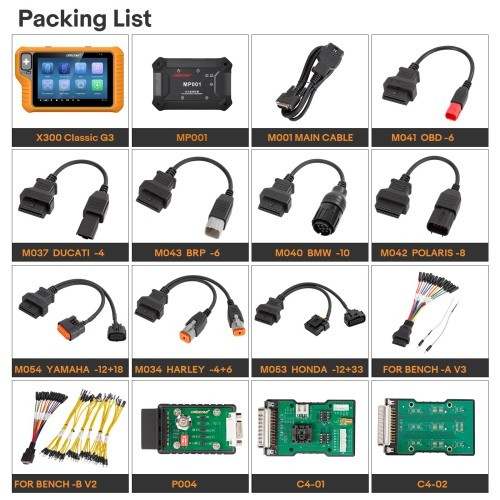

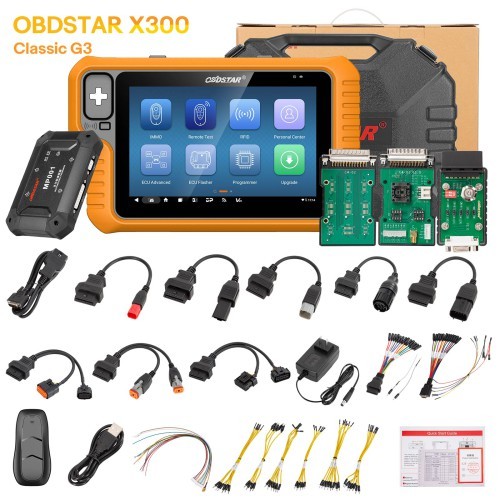

Package Includes:
1pc x M001 main cable
1pc x charger
1pc x MP001 all-in-one programmer
1pc x W004 read/write soldering wire
1pc x W005 read/write soldering wire
1pc x C4-01 multi-function data read/write board
1pc x C4-02 eight-pin chip(IC) soldering board
1pc x BENCH-A V3 for ECM and TCM cloning functions
1pc x P004 adapter
1pc x BENCH-B V2 ECU Cloning BENCH harness
Free Gift Kits
A1
1pc x KeySlim + USB to Type-C Cable

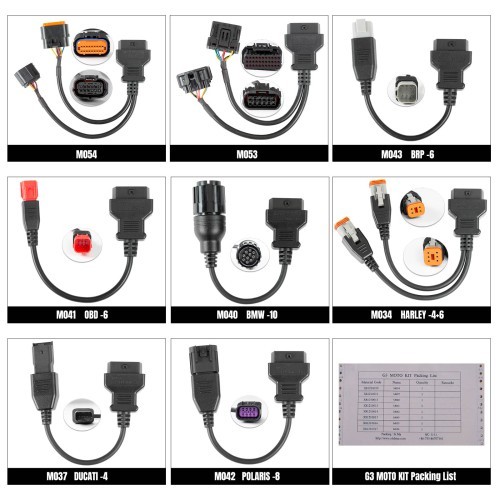

A2
1pc x M034 Harley-4+6
1pc x M037 Ducati-4
1pc x M040 BMW-10
1pc x M041 OBD-6
1pc x M042 INDIAN/VICTORY-8
1pc x M043 BRP-6
1pc x M053 HONDA IMMO
1pc x M054 SUZUKI/YAMAHA
